Technical description
| Bearing | Sintec sleeve bearing |
| Connection line | Single strands AWG 28, TR 64, bared and tin-plated. |
| Dimensions | 60*60*25 |
| Direction of air flow | Air exhaust over bars |
| Direction of protection | Counterclockwise, looking at rotor |

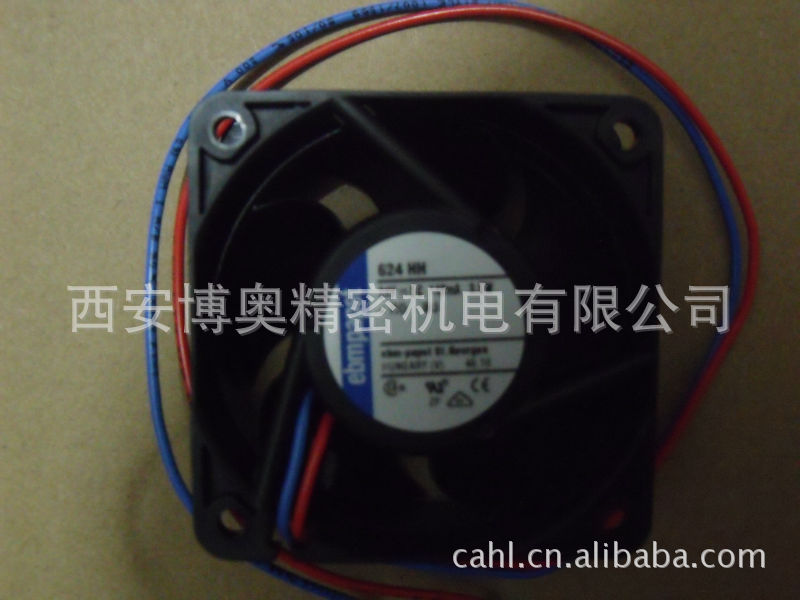

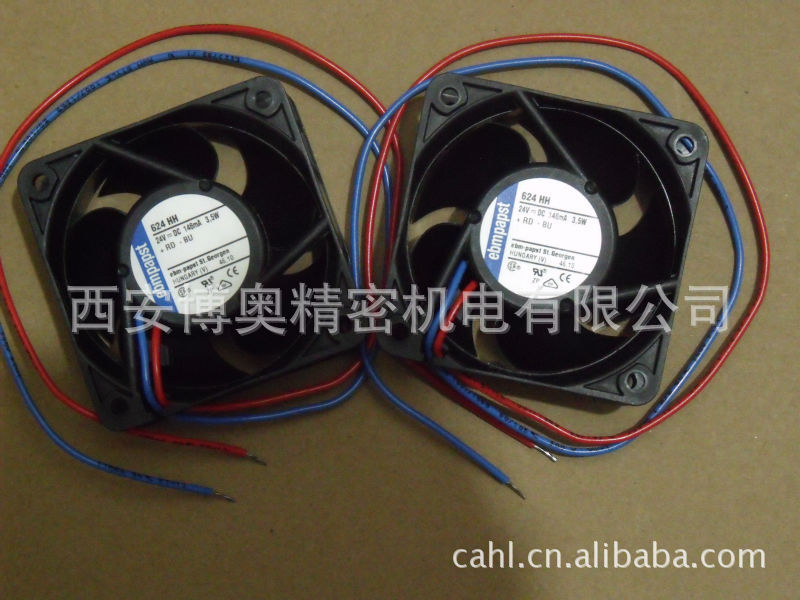

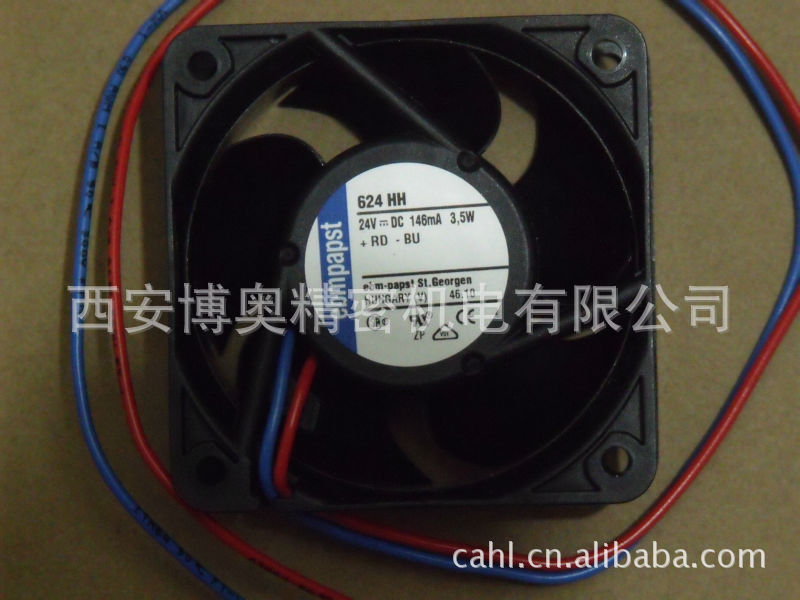

| General description | Compact fan with low power consumption. Suitable for use at high ambient temperatures. Electronic commutation completely integrated. |
| Housing material | Fiberglass-reinforced PBT plastic |
| Lifetime L10 at 20 °C | 65000 h |
| Lifetime L10 at 60 °C | 13000 h |
| Mass | 0.085 kg |
| Material of impeller | Fiberglass-reinforced PA plastic |
| Motor protection | Protected against reverse polarity and locking. |
