*安装容易不需软件
★完整支持IEEE 802.11b/g无线网络规格
☆频率范围2400~2500 MHz国际公认工业频段
★通讯标准DSSS & FHSS，展频技术(不受干扰，高安全性)
★加装超容易并且不需要安装额外软件
☆采用SMA标准接头，支持多种无线外围
★天线孔设计可方便更换更高功率的天线
☆支持指向式天线、全向式天线
★可搭配无线基地台、无线路由器等等

此款无线信号放大器是一个高效率紧凑部件。为所有的2. 4GHz频段无线设备增加性能和覆盖范围而设计。包含P2P（点对点），P2MP（点对多点），802.11b，802.11b+，802.11g和802.11b+g无线路由器， 无线AP，无线网卡。使用此产品在可视距离范围内可将无线信号覆盖范围增加到双倍以上。能有效解决无线网络信号弱和无线电波干扰的问题。搭配高增益天线效果更佳。

1、其发射功率1000mw，是市面上普通网卡10倍左右！
2、其最远传输距离,室外现场测试达到3000m(可视距离）,是市面网卡不可想象的！
3、更专业的自由搭网工具，支持各种加密方式！
4、更强劲的客户端连接设备，可外接大增益天线！
5、更完善的性能，可支持软AP功能！

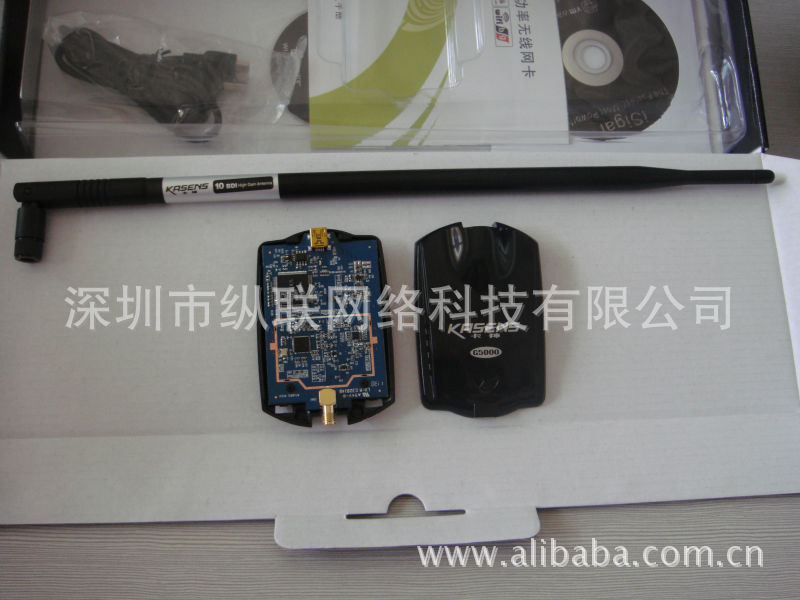

大功率卡可承接OEM定单,可单独出售PCB内板(1K起订),中英文都有。

新款模具也在不断更新中。。。

One. By Realtek RTL8187L +1000 MW (congratulations! This is the most top-chip, performance chip is not available in the market than those who 8187B oh) program, using Realtek tenth generation L929B chip integrates many previous productadvantages, Yangchangbuduan, the best performance using original 5DBI antenna, so the signal is stronger, the installation of the shield, in the substantial increase in stability as well as a thorough solution to the power adapter due to strong radiation hazards.

Third: Products parameter

1, the transmit power 1000mw, is about 10 times the market average card!
2, the farthest distance, outdoor field test to 3000m (test distance), is unthinkable card market!
3, the freedom to take more professional web tools in support of a variety of encryption!
4, more powerful client connection devices, a large gain external antenna can be!
5, better performance, support the soft AP feature!

6, detection of network security encryption to send instructions to make your web dreams to free ride.

Third, in English packaging, pure neutral, easy to distributors, resellers promotion.

Fourth, wifi network card parameters

Standard IEEE 802.11b / g
Interface USB 2.0/1.1
Frequency 2.412GHZ ~ 2.484GHZ unlicensed ISM band
The main chip RTL8187L
Visual reception range of 3,000 meters, the actual use of the environment must be in accordance
Modulation IEEE 802.11b: DBPSK / DQPSK / CCK, IEEE 802.11g: BPSK, QPSK, 16QAM, 64QAM
Transfer rate of IEEE 802.11b: 1,2,5,5, 11Mbps, IEEE 802.11g: 6,9,12,18,24,36,54 Mbps
Security WEP (64/128/256bit), WPA, WPA-PSK, WPA2 TKIP / AES, WPA2-PSK
Antenna RP-SMA 5DBI
Operating System Windows 98SE, Me, 2000, XP, Vista, MAC, Linux
Transmit Power 27dBm ± 1dBm
Receive Sensitivity Operating at 11Mbps: <-82dBm @ 8% FER, 54Mbps: <-70dBm @ 8% FER
Size 8.5cm * 5.8cm * 1.8cm
Weight 58 g
Temperature - 10 ~ 55 Celsius
Humidity 10 ~ 90% (non-condensing)
Certification FCC, CE
High-power card can accept OEM orders, the PCB board can be sold separately (1K from the set), in each category.Are also constantly updating the new mold
