产品用途
KD7T42/3P 弹簧式快关蝶阀在煤气余热发电系统和抽气供热式气轮机系统中，作为系统安全保障。

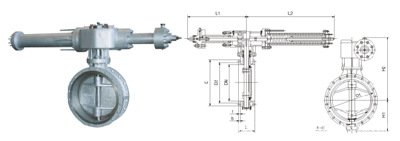

主要外形和连接尺寸
| DN | P | L | L1 | L2 | H1 | H2 | 法兰连接尺寸 |
| 400 | 0.6 | 216 | 966 | 1449 | 320 | 780 | GB/T17241
DB/T9113 |
| 1.0 | 216 | 966 | 1449 | 330 | 785 |
| 1.6 | 216 | 966 | 1449 | 345 | 800 |
| 450 | 0.6 | 222 | 966 | 1449 | 370 | 805 |
| 1.0 | 222 | 966 | 1449 | 380 | 810 |
| 1.6 | 222 | 966 | 1449 | 395 | 835 |
| 500 | 0.6 | 229 | 966 | 1449 | 400 | 898 |
| 1.0 | 229 | 966 | 1449 | 410 | 898 |
| 1.6 | 229 | 966 | 1449 | 425 | 898 |
| 6000 | 0.6 | 267 | 966 | 1449 | 440 | 898 |
| 1.0 | 267 | 966 | 1449 | 460 | 920 |
| 1.6 | 267 | 1150 | 1820 | 470 | 1020 |
| 700 | 0.6 | 292 | 966 | 1449 | 436 | 950 |
| 1.0 | 292 | 1150 | 1820 | 550 | 1075 |
| 1.6 | 292 | 1150 | 1820 | 570 | 1100 |
| 800 | 0.6 | 318 | 1150 | 1820 | 625 | 1142 |
| 1.0 | 318 | 1150 | 1820 | 640 | 1158 |
| 1.6 | 318 | 1150 | 1820 | 660 | 1183 |
| 900 | 0.6 | 330 | 1150 | 1820 | 700 | 1190 |
| 1.0 | 330 | 1150 | 1820 | 710 | 1210 |
| 1.6 | 330 | 1150 | 1820 | 725 | 1239 |
| 1000 | 0.6 | 410 | 1150 | 1820 | 760 | 1250 |
| 1.0 | 410 | 1150 | 1820 | 770 | 1275 |
| 1.6 | 410 | 1360 | 2180 | 790 | 1306 |
| 1200 | 0.6 | 470 | 1150 | 1820 | 875 | 1360 |
| 1.0 | 470 | 1360 | 2180 | 890 | 1385 |
| 1.6 | 470 | 1360 | 2180 | 915 | 1418 |
| 1400 | 0.6 | 530 | 1360 | 2180 | 1000 | 1478 |
| 1.0 | 530 | 1360 | 2180 | 1020 | 1510 |
| 1.6 | 530 | 1360 | 2180 | 1045 | 1546 |
| 1600 | 0.6 | 600 | 1360 | 2180 | 1120 | 1599 |
| 1.0 | 600 | 1360 | 2180 | 1140 | 1639 |
| 1.6 | 600 | 1610 | 2520 | 1170 | 1738 |
