设计特点：
1. 本机型采用四柱三板式开放空间，四柱分别装有高精密耐磨导套.且下压平稳精度高，滑动中板与工作台的平行度可达到0.02mm以下。
2. 送料工作台采用高精密直线滑轨做导向之进行，平稳，定位高，进出运行重复精度0.02mm。
3. 超低噪音，高效率、马力需求小、维护保养容易，也可根据客户之工作要求变更回路设计及电压需求，达到工作之目的。
4. 设计安全可靠，双手操作，急升保护，可加装光电双手保护。上、下，进、出可寸动，便于安装及调模.下压计时、计数、压力、速度、行程均可调。
5. 出力：3T-80T可供选择。

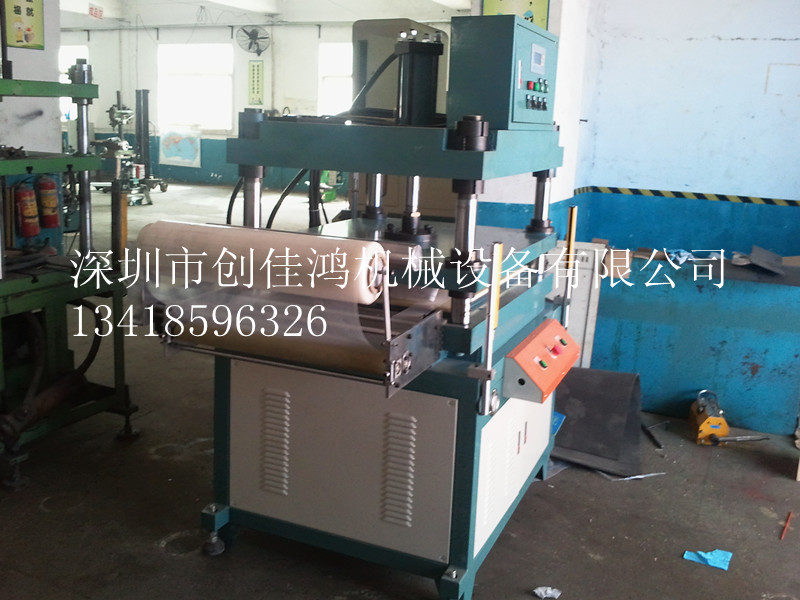

Design features:
1. Design of this machine is of four column three plates type for open space. Four columns are respectively equipped with high precision guide bush, descending stability and precision are very high. The parallelism between slider middle plate to working table is below 0.02mm.
2. The feeding working table use high precision linear slider rail, stable and high positioning, in-out running repeat precision up to 0.02mm.
3. Super low noise, high precision, less motor requirement, easy repair and maintenance, it can also change circuit design and voltage as per customer’s working requirements to meet job purpose.
4. The design is safe and reliable by two hands operation and sharp ascending protection. Photoelectric two hands protection can be added. Up-down and in-out can be inching, which is easier for installing and adjusting mold. Timing, data counting, pressure, speed and stroke all can be adjusted during descending.
5. Output tonnage 3T - 80T are for selection.
适用范围：
本系列油压机广泛用于：塑胶件冲断、电脑、手机、相机等保护膜裁切，橡胶、软性电路板、不干胶的整切、半切、冲孔、成型、压粉、折弯等功能。
Application scope:
This series hydraulic machines are widely used for rubber parts punching, computer, mobile, cutting of camera protection film, rubber, soft circuit board and whole cutting, half cutting, punching, forming, powder fressing and bending of adhesive sticker, etc.
