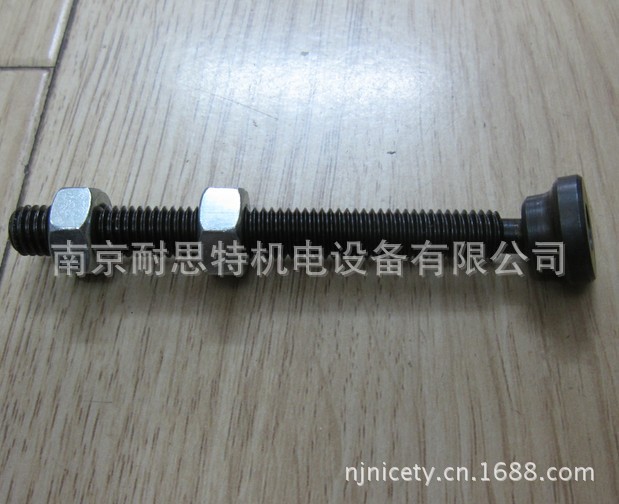

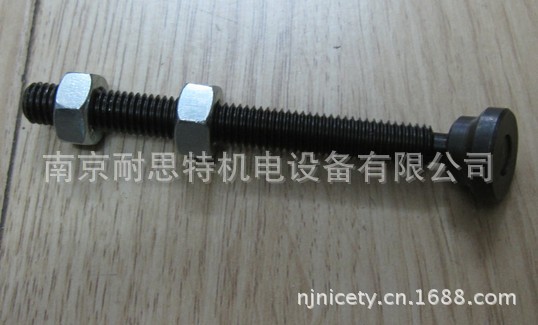

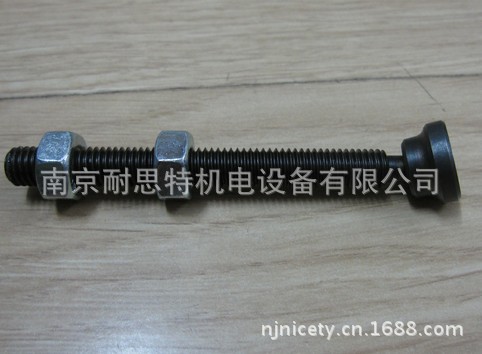

本体
由黑色氧化处理钢质制成的DIN 6332型(参见第598页)埋头螺钉,带内六角头。
止推衬垫
由车削、硬化和黑色氧化处理钢质制成的DIN 6311型(参见第599页)止推衬垫,带定位环。
六角螺母
镀锌钢,蓝钝处理。
应用
通过在夹紧垫中安装定位环,可在螺栓与夹紧垫间形成肘杆。
夹紧垫可拆卸,故可直接夹紧至硬化螺栓末端。
Clamping bolt M 5: bolt end and thrust pad are not hardened and not removable.
Specification
Grub screw
DIN 6332
Thrust pad
DIN 6311
Hexagon nuts ISO 4032 / DIN 934
Steel
zinc plated, blue passivated
Grub screws DIN 6332
Thrust pads DIN 6311
RoHS compliantInformation

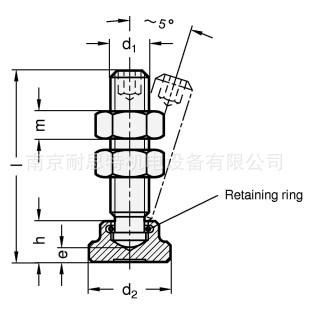

By means of the retaining ring in the thrust pad a simple and toggle link between bolt and thrust pad is created.
Hexagon nuts are included.
