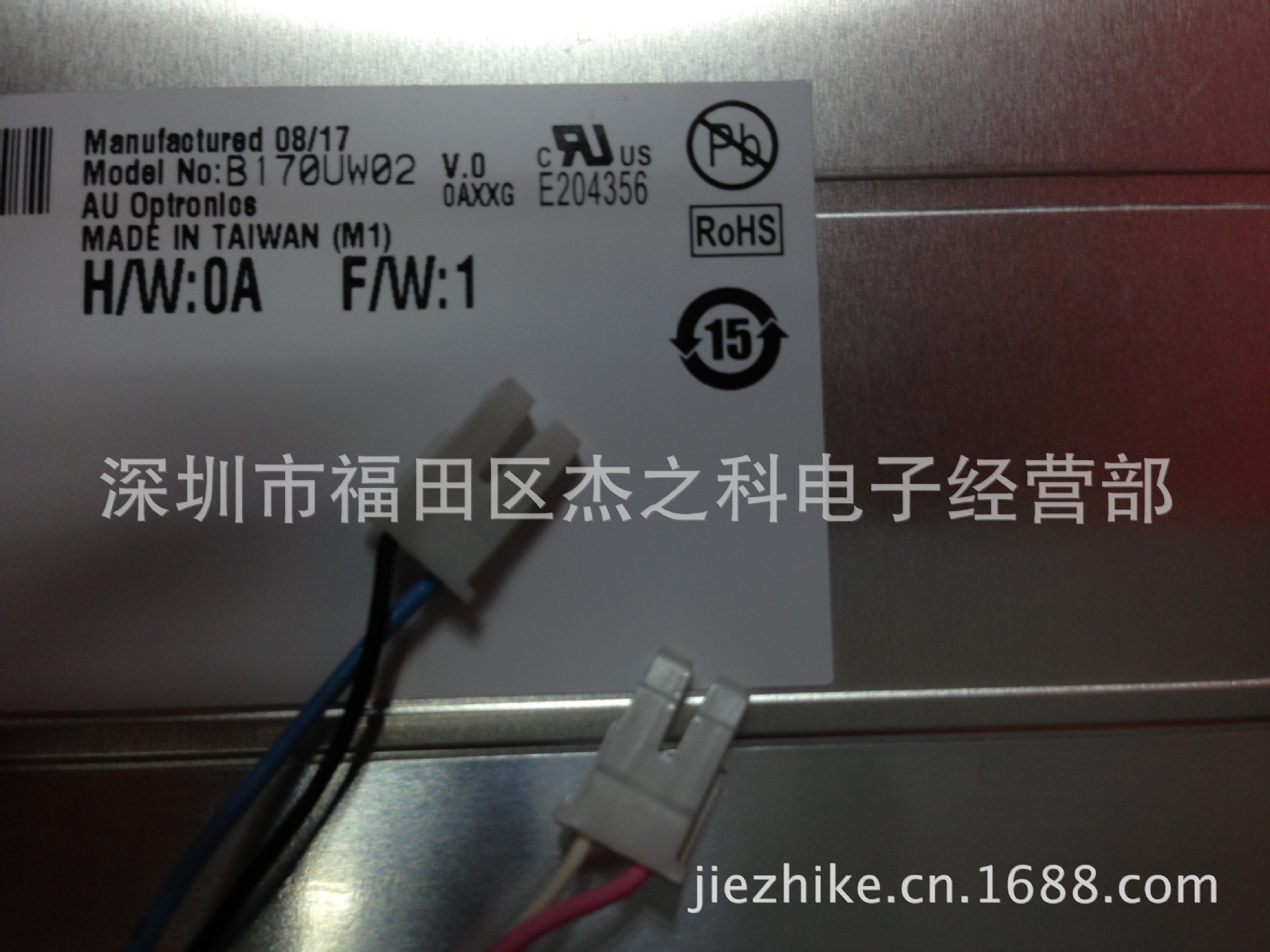

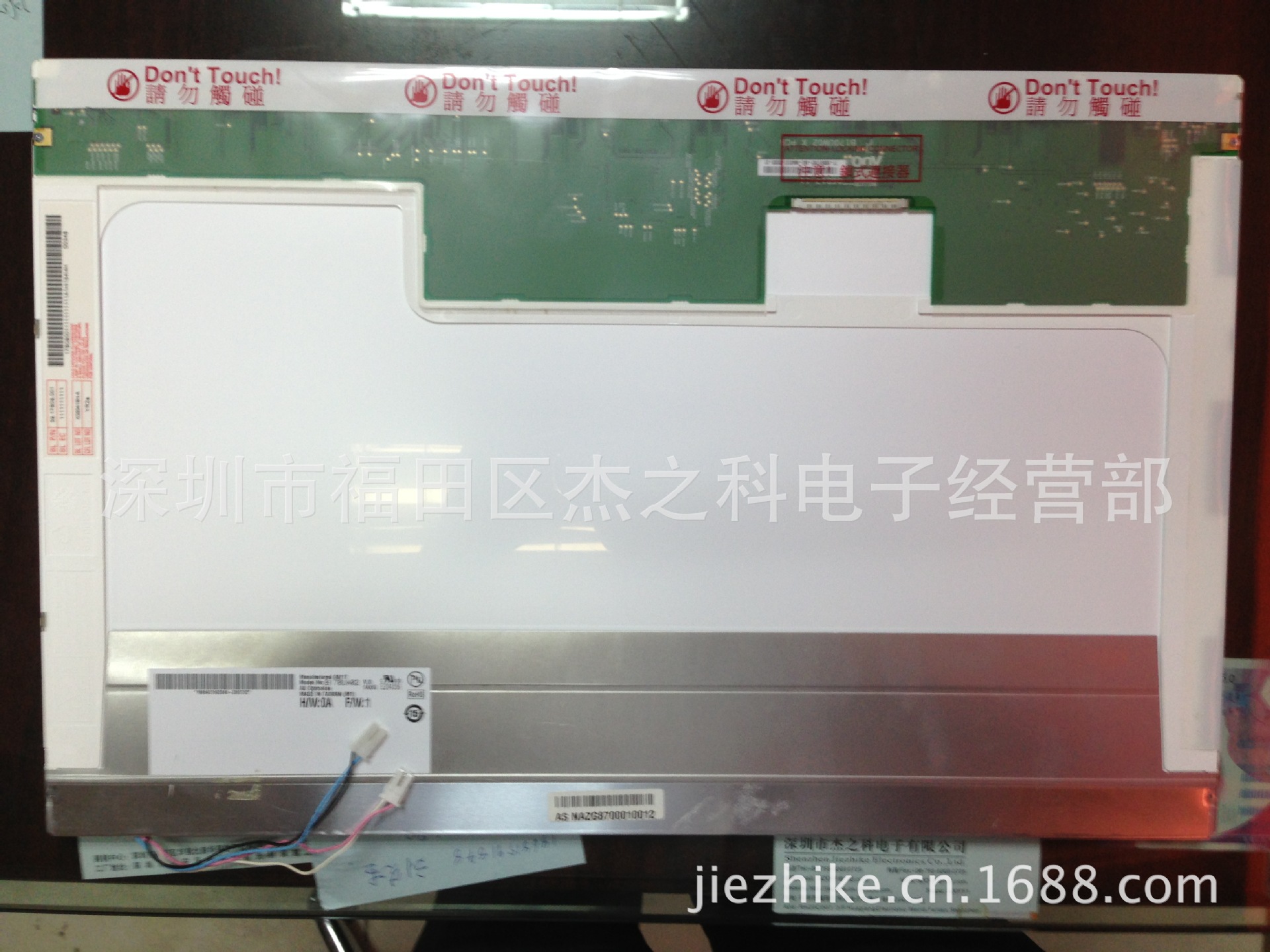

产品型号(MODEL) B170UW02-V0
屏尺寸(Size) 17英寸
制造商(Productor) AUO (友达)
分辨率(Resolution) 1920x1200
显示比例(Display scale) 16:10
响应时间(Response) 8(Tr+Td) ms
亮度(Luminance) 400 nits
对比度(Contrast Ratio) 600 :1
颜色(Color) 262K(6bit)
B170UW02-V0工程参数
面板类型(Technology) a-Si

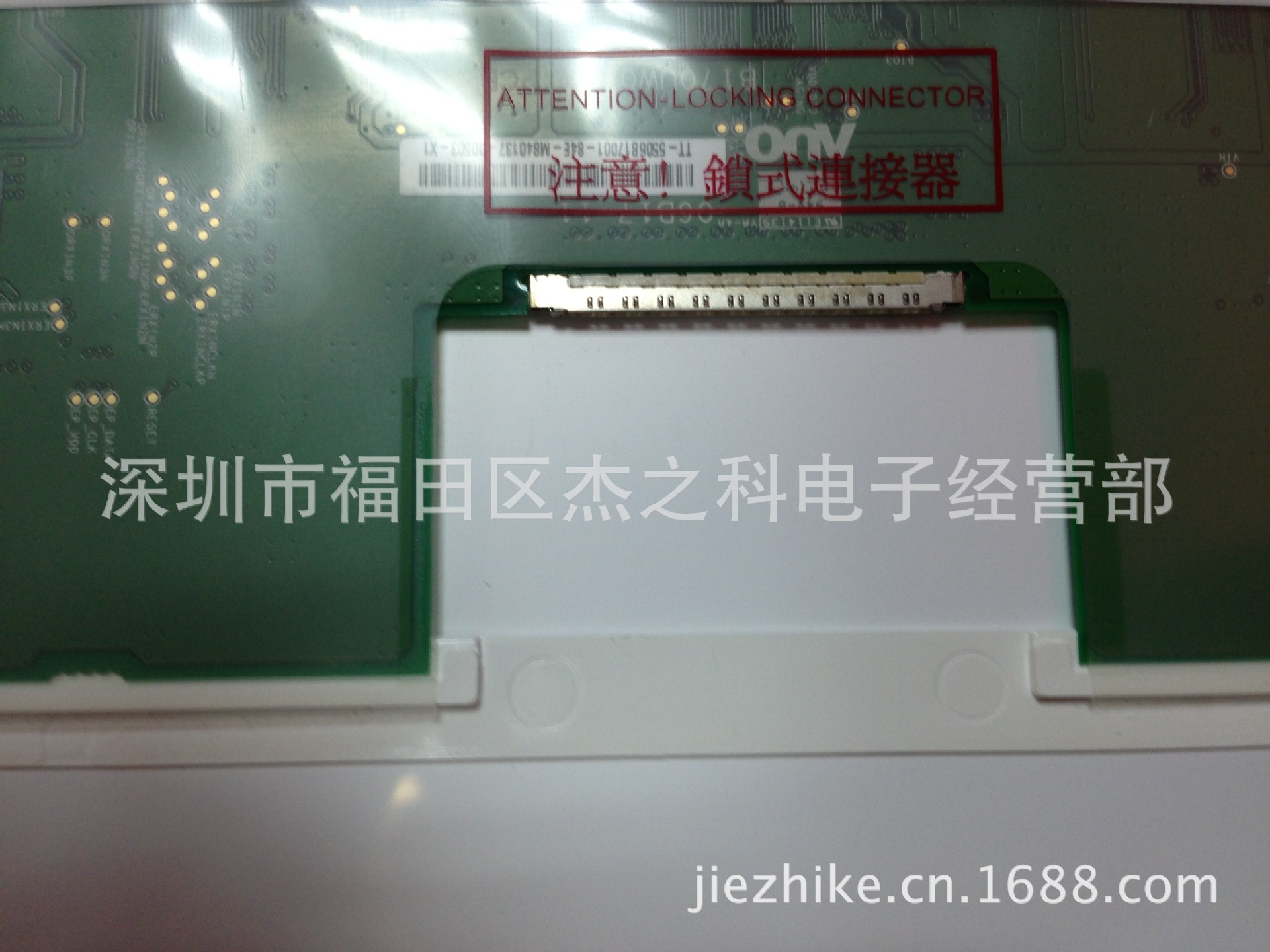

接口类型(Interface) LVDS(2ch,6bit)
驱屏电压(Drive-screen voltage) 3.3V
点距(Pixel Pitch) 0.06375x0.19125 mm
显示区域(Active Area) 367.20x229.50 mm
外形尺寸(Outline) 382.7x248.0x7.0 mm
面板重量(Weight) 700 g
可视角度(Viewing Angle) 70/70/60/60 (上/下/左/右)
B170UW02-V0其它参数
背光类型(Backlight) CCFL
灯管数量(Lamp Number) 2 pcs
背光寿命(Life Time of Lamp) 10K Hours
工作温度(Operation Temperature) 0oC ~ 50oC
工作湿度(Operation Humidity) 5% ~ 95%
存储温度(Storage Temperature) -20oC ~ 60oC
存储湿度(Storage Humidity) 5% ~ 95%
主要用途(Applications) 笔记本
