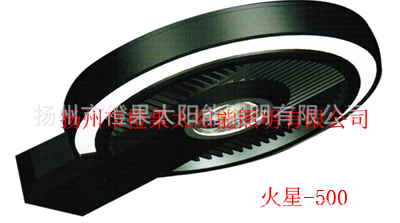

火星-500大功率LED灯具

• 源自于飞机发动机涡轮散热结构大功率LED灯具
• 及散热、传导、配光优秀技术于一体化大功率LED灯具
• dervied from the thermal structure of the aircraft engine turbine
• set of heat,conduction,with excellent light LED lighting technology in the integration
• adjusiable angle so that light areas so that you handy

产品特点
大功率LED灯具

•  高性能参数：采用进口高效芯片专利封装，比传统路灯节能60%；大功率LED灯具
• 专利配光设计：路面均匀度达到0.7以上，照度均匀无光现象；大功率LED灯具
• 显色性高：还原物体本来颜色，美化城市环境；大功率LED灯具

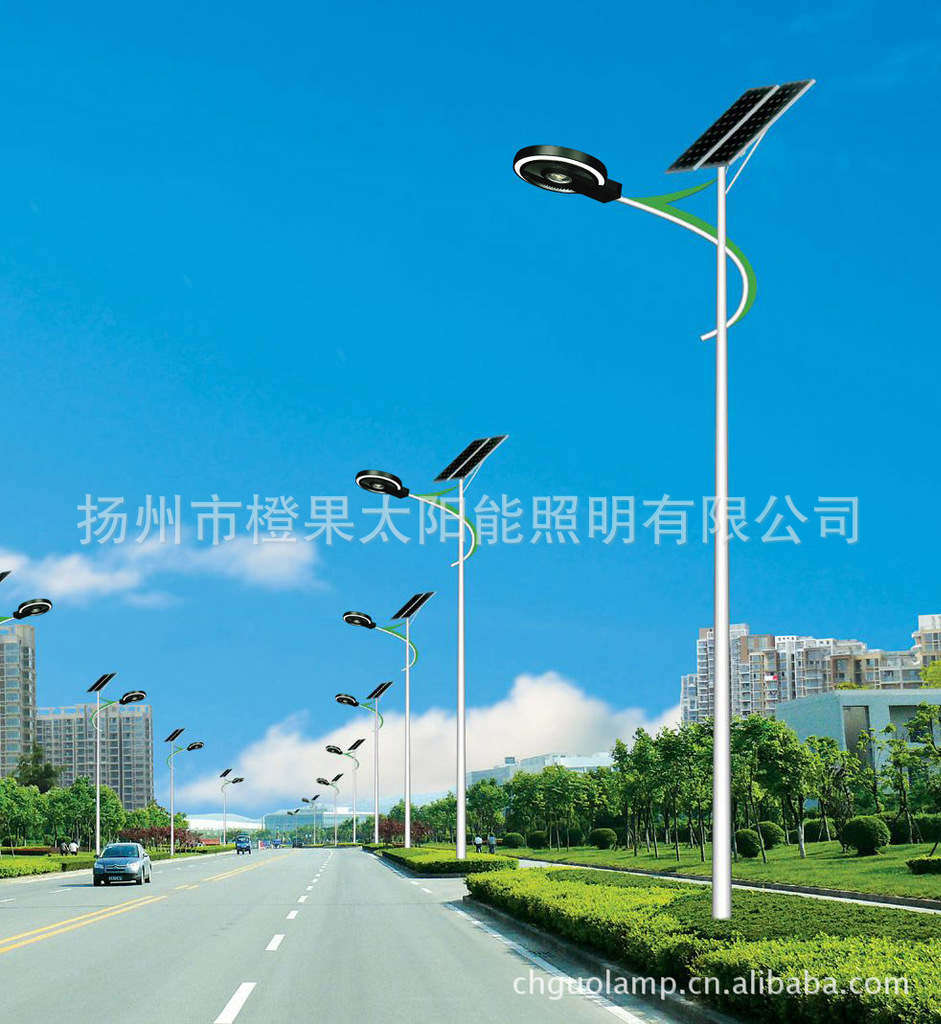

• 适用场所：庭院、小区、广场、码头、商业街区等。大功率LED灯具

Features

• Performance paramaters:imported high chip packaging patens,60% energry saving than the traditional street lamps;
• Patented optical design:the road to achieve uniformity of 0.7 or more,even without illumination spot phenomenon;
• High color:restore original color of the object,beautify the urban environment;
• Environmental health:LED no mercury ,no UV,no radiationm,the human eye is more conducive to environmental protecion and health;
• Application areas :Garden,plot,square,wharf,commercial block and so on;



  	大功率LED灯具
  产品型号/Model				BE-HX
  额定功率/Rated power				30w-120w
  灯具光能量/Lamps light energy				15300-22100LM
  电源电流/Supply Current				0.25-0.56A
  电压/Voltage				100-264V~50/60HZ
  灯具效率/Lighting efficiency				﹥89%
  色温/Color temperature				4000K-5500K
  显色性/Color				Ha 70
  功率因素/Power factor				﹥0.95
  总谐波失真/Total harmonic distortion				﹤15%
  防护等级/Protection class				IP65
  工作环境温度/Operating temperature				－20℃~＋50℃
  抗风指数/Wind index				12级
  照明度标准/Standard illumination				城市道路照明设计标准
  				Urban road lighting design standards
  LED寿命/LED life				﹥50000h
