细节描述PROPUCTDETAIL
控制手柄configuration
微电脑操作控制程序,采用线控器控制,机台下即可设定,控制操作简易方便,控制精确快捷.设有过载,缺料自动报警
料斗
Microcomputer controlled, remote control, easy to set, the control operation is simple and convenient, precise control and quick. With overload, short of material automatic alarm
料斗Hopper

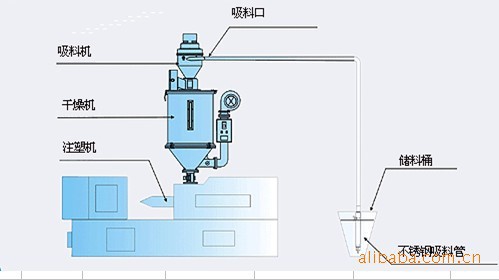

全不锈钢料斗,料桶一次性冲压成型,配合精确,外表光亮,更耐用.体积小,重量轻,可直接放置在干燥机或其他原料容器上,完成自动上料工作
Stainless steel hopper, hopper one-time punch forming, with accurate, bright appearance, durable. Small volume, light weight, can be placed directly on theother machine or containerfor auto loading
马达Motor
采用美国品牌,AMETEK高速整流马达,体积小,吸力强,易于安装等特点,均配备铰料斗盖,方便滤网清洗,适合用于新料输送
By the United States of America brand, AMETEK high-speed motor, small volume, strong suction, easy installation features, are equipped with a hinge hopper cover, convenient screen cleaning, for new material for transport
配置参数CONFIGURATIONPARAMETER

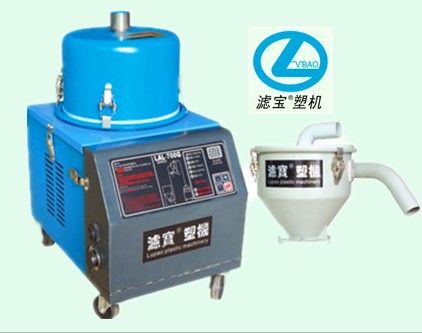

300G吸料机采用单相电压美国碳刷式高速电机，体积小，重量经，吸力强，安装方便，单相220V电源，电机功率1100W，输送能力每小时350KG，输料管径38mm，料斗容量6升，外型尺寸400*360*355mm重量13kg，适合新料输送。
300G suction machine uses single-phase voltage American brush type high-speed motor, small volume, weight, strong suction, easy installation, single-phase 220V power supply, motor power 1100W, transmission capacity of 350KG per hour, feeding pipe diameter 38mm, hopper capacity 6 liters, dimension 400*360*355mm weight 13kg, suitable for conveying.
本机特点：The machine features
l 单相电源，体积小，重量轻，吸力强，安装方便；
l single-phase power supply, small volume, light weight,strong suction,easy to install
l 进口名牌电机，噪音低，吸力大，质量可靠；
l import brand motor, low noise, big suction,reliable quality
l 微电脑板控制，具有吸料时间可调，C1/C2/C3/C4四种吸料模式选择， 吸无料报警，马达过载保护装置，操作简单，维修方便；
l microcomputer control board, with suction time adjustable, C1/C2/C3/C4 four suction mode selection, suck without alarm, operating the motor overload protection device, simple repair, convenient;
l 与原料接触的部件采用不锈钢、铝件及耐磨耐腐蚀的材料，保证原料不受污染，坚固耐用。
l · and material contact partsadopt stainless steel,aluminium and corrosion resistant materials, ensure the material is not contaminated, sturdy and durable
售后服务：整机保修一年，终身推护 24小时技术咨询
'
