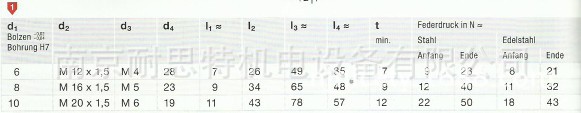

Threaded body
Black-oxide steel.
Plunger
AISI 303 stainless steel, chemically nickel-plated. Suggested matching hole
in H7 tolerance.
"Push/Pull" knurled knob
High resilience polyamide based (PA) technopolymer, black colour, matte
finish. Resistant to solvents, oils, greases and other chemical agents.
Standard executions available
- TypeA: with knob, without lock nut.
- Type
AK: with knob, with lock nut.
- TypeD:
without knob, without lock nut.
- TypeDK: without knob,
with lock nut.
Identification no.
- Version1: Plunger without internal thread.
- Version
2: Plunger with internal thread.
Features and
applications
The plunger of the spring bolts GN 313 does not protude in the inoperative
position.
It can be operated manually or in Type D and DK mechanically
(pneumatic cylinder, cam plate, etc.) when it will protrude only as long as it
is operated.
Using the internal thread at identification 2 on the pressure
side, special pressure bolts or a rod arrangement can be operated, for
instance.
Threaded body
AISI 303 Stainless steel.
Plunger
AISI 303 stainless steel, chemically nickel-plated. Suggested matching hole
in H7 tolerance.
"Push/Pull" knurled knob
High resilience polyamide based (PA) technopolymer, black colour, matte
finish. Resistant to solvents, oils, greases and other chemical agents.
Standard executions available
- TypeA:with knob, without lock nut.
-
TypeAK: with knob, with lock nut.
- Type
D: without knob, without lock nut.
- Type
DK: without knob, with lock nut.
Identification no.
- Version1: Plunger without internal thread.
- Version
2: Plunger with internal thread.
Features and
applications
The plunger of the spring bolts GN 313 does not protude in the inoperative
position.
It can be operated manually or in Type D and DK mechanically
(pneumatic cylinder, cam plate, etc.) when it will protrude only as long as it
is operated.
Using the internal thread at identification 2 on the pressure
side, special pressure bolts or a rod arrangement can be operated, for
instance.
'
