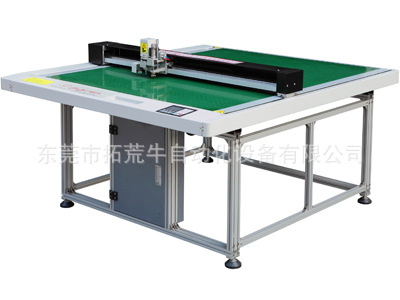

拓荒牛彩盒电脑割样机 NB-1209-X
品牌： 拓荒牛
型号： NB-1209-X
优惠价格： 请电询TEL:13926829845夏红梅 QQ：359548267 听雨
产品简述： 彩盒割样机,纸箱打样机,纸箱电脑打样机,彩盒电脑割样机,拓荒牛彩盒电脑割样机 NB-1209-X应用于制鞋、箱包手袋、彩盒包装、服装等企业...
画线、绘图、文字标注、压痕、半刀切割、全刀切割，一次完 成。
应用于瓦楞纸板切割、纸箱打样、彩盒打样、胶盒打样、POP纸 展架纸货架打样，小批量生产。
代替传统的纸箱、彩盒、纸展架等手工开发设计和打样，缩短 相应的研发时间；满足少批量，多订单、多款式的生产目标。
▲ 超高频振动刀切割技术，杜绝了人工划切的不规范、冲压机 精度限制、激光切割机烧焦/异味等弊端；
▲ 便捷输出、高速切割/压痕、快速成型；
▲ 免刀模，节省人力物力；
▲ 数据化，提升企业生产管理。
拓荒牛彩盒电脑割样机X系列 技术参数标准表
Table of Technical Information on Carton Color Box Proofing Computerized Cutting Machines
技术参数/型号 | NB-0906-X | NB-1209-X |
Technical information/model | ||
工作特性 | 电脑操作与切割机同时进行，快速完成数据 传输，可连续使用 | |
Operation properties | Computer operation and cutting machines can be used simultaneously for quick data transmission capable of continuous operations | |
切割速度 | 最快可达1000mm/s | |
Cutting speed | Maxi 1000mm/s | |
切割厚度 | 0.2-3mm | |
Cutting Thickness | ||
切割材料 | 可切割3mm以下的瓦楞纸、灰板纸、白卡纸、 胶片、复合材料、人造革、导热棉和泡沫KT板等多种材料。 | |
Cut materials | 3mm maximum thickness materials of:lvory cardboard,gray paper,corrugated paper,plastic Sheets,composite materials and leather materials,foam board etc. | |
笔数 | 8组不同的笔画：半刀、全刀、压轮设置、绘 图笔 | |
Number of pens | 8 different groups of strokes,halfcut,full cut and Creasing,plotting pen | |
定位方式 | 红外线激光灯 | |
Positioning device | Red Ultra-Light | |
固定纸的方式 | 真空吸附 | |
Method for fixing paper | Vacuum absorption | |
切割精度 | ±0.2mm | |
Cutting tolerance | ||
重复精度 | ≦0.05mm | |
Repeat accuracy | ||
切割圆形直径 | ≧3mm diameter | |
Minimum circle | ||
传输接口 | 以太网口 | |
Transmission interface | Ethernet port | |
兼容软件格式 | AI软件、Autocad、Coraldraw和所有的盒型 设计软件都可以直接输出，无需转换，且带自动优化 | |
Format compatible | Compatibility format AI software,Autocad,Coraldraw and all box software | |
指令系统 | HP-GL和GP-GL | |
Direcive system | HP-GL and GP-GL | |
数控面板 | 液晶显示和触点按键 | |
Digital control panel | Liquid crystal display and contact button | |
传动材料 | 直线导轨，进口同步带 | |
Transmission materials | Straight-line guide rails and imported synchronous belts | |
工作电压和功率 | 交流220V 380V ±10%，50HZ；整机功 率2kw；保险丝规格6A | |
Supply voltage | AC 220V 380V ±10%，50HZ | |
振动刀头 | 振动刀头电机每分钟25000转 | |
Vibration blade | Vibration cutter head motor at 25000rpm | |
切割面积 | 600mm*900mm | 900mm*1200mm |
Cutting area | ||
外观尺寸 | 960*1280*1000mm | 1280*1590*1000mm |
Overall dimension | ||
功能特点|Functions and special feature
● 中瑞技术合作产品，采用旋转电机使刀头主动旋转，并采用 日本进口刀片，以致在无振动的情况下切割瓦楞纸和灰板纸也能达到很好的切割 效果。
● It is the product with the cooperation of Sine-swiss technologies A product of Sino-Swiss technologies,and servomotors imported from Switzerland.The motor can smoothly turn without vibrating,to cut corrugated materials and cardboard.
● 采用意大利AMT直线导轨作为传动轨道，保证机器高速运转 平稳且精度高。
● The Italian AMT srraight-line guide rails are used as drive rails to ensure the machines will run in a steady manner and at a high accuracy.
● 有8组不同的笔画，可进行半刀、全刀切割，可压折痕，可 绘图；对于精品盒需要切割灰板纸时的半刀切割，即可由电脑控制。
● There are 8 different stroke setting; half cut,full cut,creasing,plotting are possible.Particular good for accuracy requirement in premium box with quality cardboard,grey broad with all computer control.
● 机器有三个功能头：主动旋转刀切割头、压折线轮和绘图笔 。可切割3mm以下的瓦楞纸、灰板纸、白卡纸、胶片、复盒材料、人造革、导热棉 和泡沫KT板等多种材料。
● The machines have three functional heads: Self Turn Cutting head,Creasing wheel,plot pen for 3mm below thickness material like,corrugation board,plastic sheets,leather,textile,foam board,KT board etc.
● 整机数据线全部采用德国进口。
● Date wire all imported from Germany.
● 机器台面采用美国进口纤维板，透气性好，耐用，不易变形 。
● Table mat are imported from USA,the fiber board are durable,with good,permeability,very stable in thickness and shape.
● 由最稳定的以太网口用网线传输数据，并可直接连接AI软件 以及Autocad,Coraldraw等所有软件输出
● Date is transfer by Ethernet,the most stable method.File can be exported to machine directly from Adobe Illustrator,Coraldraw without conversion to maintain maximum accuracy.
● 速度快，最快每秒可达到1500mm。
● Machine can ruu at the maximum speed of up to 1500mm per second.
● 直接在机器上控制所有微调功能，包括图档自动优化功能， 无需另配多一台电脑。
● All fine tuning can be made with control penal on the machine.
● 可由红外线激光灯定位切割已印刷好的彩盒，快速而又准确 。
Red Ultra-light positioning device for printed work can be cut accurately in easy and quickest way.
'
