Features产品描述：
u The light source adopts the integration of imported single high power LED, with the special design of integrating many chips into one lighting source.
光源采用单颗大功率LED集成光源，运用独特的多颗芯片集成式单模组光源设计，选用进口高亮度半导体芯片。
u Integrative design for heat sink and housing; The LED is closely connected to the surface. The heat from the LED is removed through the heat dissipation wing and also by air ventilation. This ensures 50,000 hours life-span for the LED. If it works 11-12 hours per day, it can work over 10 years.
独特的散热与灯壳一体化设计,有效将热量传导扩散，从而降低灯体内的温度,保障了LED光源50000小时的使用寿命。按照每天点亮11-12个小时计算，LED工矿灯在12年无需更换。
u The high pure imported aluminum from Germany as the reflector has high reflecting efficiency, and it can make sure the luminous flux, controlling the light inside of a useful area. It improves the efficiency of lightuniformityuniformity and utilizationutilization, showing the LED advantage of energysaving.uu
采用高纯度德国进口铝反射罩，有效提高了反射率，并确保了光通量输出，针对性地将LED发出的光控制在需要范围内，提高了灯具出光效果的均匀性和光能的利用率，凸现了LED灯具明显的节能优势。
u New high efficiency constant current driver. Wide range of input voltage: AC90-305V.
最新的高效恒流驱动器，宽电压工作：AC90-305V。
u Can present the original color of the objects, it has varies of colors to choose which can meet the requirements in different environments. It eliminates the dullness of environments caused by the lower color temperature, like sodium lamp, or higher color temperature, like mercury lamp. This could satisfy the feeling of those who appreciate the lighting.
显色性好，对实物颜色的呈现更真切。各种光色可选，能满足不同环境的需求，消除了传统灯具色温偏高或偏低引起的压抑情绪，使视觉倍感舒适，提高工人工作效率。
u No delay start. No waiting. It can reach its normal light as soon as it is turned on. No noise.
不存在启动延时问题，通电可立即正常工作，解决了传统灯具漫长的启动过程，实现了瞬时启动和再启动，没有噪音。
u Obvious power-saving efficiency. Use powerful LED light source and high efficiency imported LED driver. Compare with sodium lights, it can save electricity around 60%.
节能效果明显，采用大功率LED光源配备高效率电源，与钠灯相比可节能60%以上。
u Environment friendly and no air pollution. We exert the design of using cold light source. It’s no heat radiation. There is no ill to our eyes and skin. The floodlights do not have lead, hydrargyrum and any other contamination. It is really environment friendly with ROHS certificate
绿色、环保无污染，冷光源设计，无热辐射，对人体的各器官无任何伤害。不含铅、汞等污染元素，符合ROHS要求。
Applications应用范围:
Workshop, warehouse, toll station, gas station, supermarket, gymnasium, exhibition hall, and other public lighting places.
车间，厂房，库房，公路收费站，加油站，大型超市，展览馆，体育馆及其它公共照明场所。
MAIN SPECIFICATIONS (T=26℃) | ||
NUMBER | ITEM | DESCRIPTION |
01 | Input Voltage （输入电压） | AC90-305V 50~60Hz |
02 | LED （LED数量） | 1 PC |
03 | Power （LED功率） | 150W |
04 | LED Efficiency （LED发光效率） | 100-120Lm/W |
05 | Initial Flux （初始光通量） | >14250LM |
06 | Power factor （功率因素） | >0.93 |
07 | Color Temperature （色温） | 3000-3500K (Warm White)暖白 4000-4500K (Natural White)正白 6000-6500K (Cool White)冷白 |
08 | Illuminance Area （光斑面积） | 4M：￠14.35 M 6M：￠21.28 M 8M：￠28.21 M |
09 | Center Illuminance （中心照度） | 4M：307.5 Lux 6M：152.3 Lux 8M：112.7 Lux |
10 | Beam Angle （光束角度） | 120° |
11 | Light Design （配光方式） | LED+Reflector secondly light distribution LED+反光杯二次配光 |
12 | Life Time （使用寿命） | >50,000 Hours |
13 | Operating Temperature （工作环境温度） | -40℃to +55℃ |
14 | Storage Temperature （储存温度） | -25℃to +65℃ |
15 | Connect Wire （电源线连接） | Brown棕（L火线） Blue蓝（N零线） Yellow/Green黄绿（G地线） |
16 | Certifications （所获认证） | CE, RoHS,SAA |
17 | Weight （净重） | 9.0KG |
18 | IP Code （IP等级） | IP65 |
生产车间实景图：
产品包装实景图
产品细节图：
产品应用场地效果图：
应用范围：车间、厂房、库房、公路收费站、加油站、大型超市、展览馆、体育馆及其他公共照明场所。

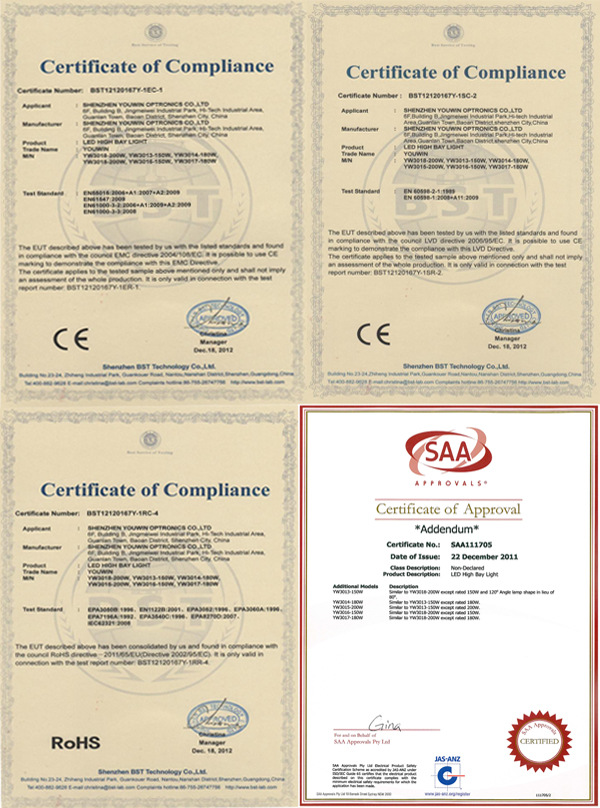

证书：
