Body with flange
Zinc die-cast zinc alloy with two holes for assembly with countersunk head
screw. Corrosions-resistant ZNDG PAss nano®-coating, anthracite coloured.
Plunger
AISI 303 stainless steel. Suggested matching hole with tolerance
+0.03/+0.08.
"Push/Pull" knurled knob
Polyamide based (PA) technopolymer, black colour, matt finish, not
removable.
Spring
AISI 301 stainless steel.

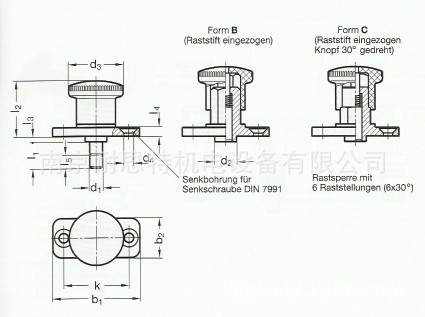

Standard executions available
- TypeB: without rest position.
- Type
C: with rest position.
Accessories on request
- Distance bushings GN 609 / GN 609.5.
- Flat nut GN 909.5.
Features and
applications
Mini indexing plungers GN 822.8 are distinguished for their small dimensions.
They are mounted by countersunk screws.
'
