德国OPTIBELT一级代理商
德国欧皮特(Optibelt)公司成立于1872年,是一具有百年历史的著名传动带生产厂家。日前Optibelt 集团在欧洲有5家工厂荣被称为世界上生产及销售传动带的专业领导者。产品质量满足高效要求并以ISO9001质量体系保证。
Optibelt欧皮特皮带的主要领域:-机械制造业-汽车工业-农业机械-家用电器和办公设备-纺织、印刷及造纸设备。
优点:
l 高效
l 极佳的动态功率传输性能
l 良好的摩擦系数和高性能
l 低震颤、低噪音
l 可承受冲击负荷和短时间负荷
l 较高的皮带速度
应用领域:铣床和车床、纺织机械、主轴传动、造纸机、风扇传动、洗衣机、转筒式烘干机、运动器材和DIY设备等。
截面:PH、PJ、PK、PL、PM
常用规格参数表:
PJ
280 | 330 | 356 | 362 | 381 | 406 | 414 | 432 | 457 | 483 | 508 | 559 |
584 | 610 | 660 | 711 | 723 | 737 | 762 | 813 | 836 | 864 | 914 | 955 |
965 | 1016 | 1092 | 1105 | 1110 | 1123 | 1130 | 1150 | 1168 | 1194 | 1200 | 1222 |
1244 | 1262 | 1270 | 1285 | 1301 | 1309 | 1316 | 1321 | 1333 | 1355 | 1371 | 1397 |
1428 | 1439 | 1475 | 1549 | 1600 | 1651 | 1663 | 1752 | 1780 | 1854 | 1895 | 1910 |
1915 | 1930 | 1956 | 1965 | 1981 | 1992 | 2083 | 2155 | 2210 | 2337 | 2489 | |
PK
630 | 648 | 698 | 730 | 775 | 800 | 812 | 830 | 865 | 875 | 890 | 913 |
920 | 940 | 954 | 962 | 990 | 1015 | 1080 | 1090 | 1125 | 1150 | 1165 | 1190 |
1200 | 1222 | 1230 | 1245 | 1270 | 1285 | 1290 | 1321 | 1330 | 1345 | 1371 | 1397 |
1439 | 1460 | 1520 | 1560 | 1570 | 1600 | 1655 | 1690 | 1755 | 1854 | 1855 | 1930 |
1956 | 1980 | 2030 | 2050 | 2080 | 2120 | 2145 | 2170 | 2235 | 2255 | 2362 | 2460 |
2515 | 2743 | 2845 | | | | | | | | | |
常见问题与解决方案:
楔齿的异常磨损和撕裂
可能原因:张紧力太小、运行过程中有杂物进入、带轮未对齐、带轮缺陷、错误的带型和带轮。
解决方案:正确张紧、安装防护装置、对齐带轮、重新加工或更换带轮、更换带型或带轮。
短期运行后,皮带断裂(皮带撕裂)
可能原因:多楔带打滑或突起件接触、传动系统卡死、传动系统过载、受润滑油、润滑脂、化学物质污染。
解决方案:张紧或移除突起件、排除故障、检查传动系统工作情况,重新设计、保护传动装置不受环境影响。
皮带开裂
可能原因:外张紧轮的位置和大小不符合要求、带轮太小、环境温度过高、环境温度过低、皮带异常打滑、化学影响。
解决方案:参考optibelt建议,如增加直径,在传动系统皮带松边使用内张紧轮、确保最小的带轮直径、移除热源,保护皮带,改善通风条件、使用之前预热、保护传动装置。
皮带不能重新张紧
可能原因:轴中心距调节范围小、皮带伸长过大,因驱动装置尺寸太小、皮带长度错误。
解决方案:根据optibelt建议,更正调整范围、重新计算传动系统设计数据,并修改、安装短一点的皮带。
皮带膨胀及软化
可能原因:受润滑油、润滑脂、化学物质污染。
解决方案:防止异物进入传动装置内、在安装新带这前,用汽油或酒精,对带轮槽进行清洗.

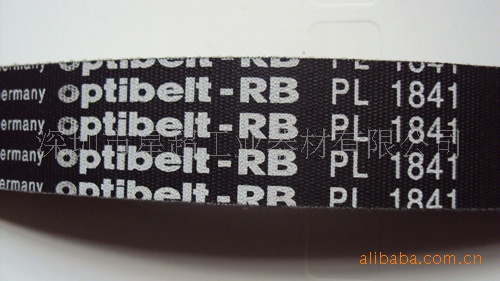

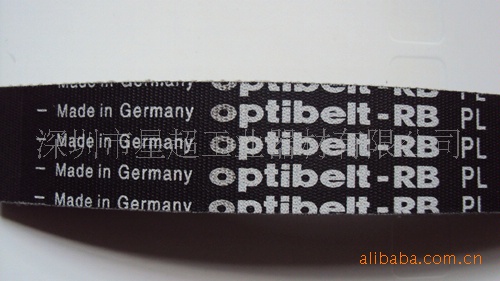

产品图片:









The ribbed belt combines the high fl exibility of fl at beltswith the high performance of V-belts. The V-shapedparallel ribs are made from a wear-resistant rubber
compound. The high strength tension cord is designedfor the many applications of the ribbed belt. It is
embedded in a rubber adhesive mixture and covers theentire width of the ribbed belt. Fibre reinforced, wearresistantrubber compounds ensure quiet operation,oil and heat resistance and a long belt life.
Advantages
● Ribbed belts
● High effi ciency
● Very good dynamic power transmission capability
● Good coeffi cient of friction and high performance
● Low vibration and noise
● Withstands shock loads and short-term overload
● High belt speeds possible
● Can be used with back bend idlers,
e.g. in serpentine drives
The small minimum pulley diameters permit drives withhigh speed ratios as well as small drive volume
requirements. Ribbed belts are well suited for use withback bend idlers, e.g. in serpentine drives.
