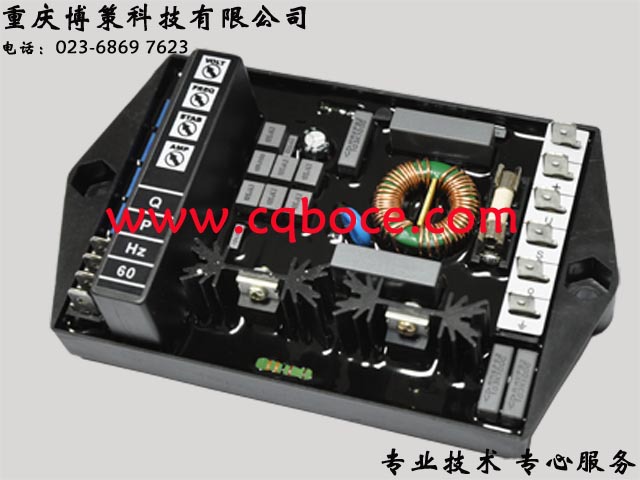

Marelli AVR M16FA655A Automatic Voltage Regulator

The voltage regulator type “MARK V”, is suitable for Synchronous Generators of MARELLI  MOTORI make, MJB series, size range 160-225 frames. The regulator is fully insulated in order to maintain high reliability also with severe ambient conditions (high level of humidity, dust, salt atmosphere), and in case of high vibrations level. The regulator is proper both for single and 3-phase generators.

TECHNICAL DATA

• REGULATION ACCURACY: +/- 0.5%  rated steady state conditions
• VOLTAGE DRIFT:+/- 0.5 %, voltage change, for 50°C T amb change
• RESPONSE TIME: 1 cycle
• OPERATING TEMPERATURE:  -30 °C &pide; +70 °C
• EXCITER FIELD RESISTANCE:  8 Ω (min) &pide; 20 Ω(max)

INPUT/OUTPUT DATA:

• SUPPLY VOLTAGE:170 -270 V
• POWER SUPPLY:350 VA (max)
• POWER DISSIPATED: 15 W (max)
• VOLTAGE SENSING: 170 - 270 V
• OUTPUT VOLTAGE (DC):30 V
• OUTPUT CURRENT (DC): 5 A   (max, continuos)
• OUTPUT CURRENT (DC): 8 A   (max forcing one minute)

发电机AVR调压板产品，我公司品种齐全，另有以下型号：
斯坦福发电机：SX440,AS440,AS480,SX460,MX321,MX341；
利莱森玛发电机：R230,R438,R448,R449；
马拉松发电机：DVR2000E,DVR2000E+,SE350；
西门子发电机：6GA2-490-0A，6GA2-491-1A，6GA2-492-1A；
无刷通用：GAVR=8A,12A,15A；
英格发电机：WT-2,WT-3；
其它品种：EA05A,EA15A,AVC63-7,SR7,UVR6，M16FA655A，M40FA640A
