视频 音频延长器型号 品牌 厂家直销 品质保证
产品简介
XTENDEX® ST-2FODVI-LC的DVI延长器，通过光纤电缆位于一个单链路DVI数字显示高达到4920英尺（1,500米），使用单模光纤光缆可达1,640英尺（500米），使用多模光纤光缆。每个扩展器包括一个发射器，它连接到一台计算机和一个接收器，连接到监视器。

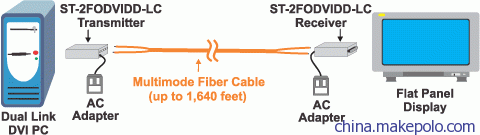

典型应用图
产品规格
- esolution: up to 1920x1200. (WUXGA)
- Connectors (for transmitter and receiver): one male DVI-D single link connector and two LC fiber connectors.
- Maximum distance: 4,920 feet (1,500 meters) using singlemode cable and 1,640 feet (500 meters) using multimode cable.
- Compliant with DDWG DVI standard.
- EDID learning for the support of any DVI display device.
- Low RFI/EMI.
- Operating Temperature: 32 to 122°F (0 to 50°C).
- Storage Temperature: 14 to 185°F (-10 to 85°C).
- Operating and Storage Relative Humidity: 5 to 85% non-condensing RH.
- CE, FCC, RoHS.
- WxDxH: 1.5x2.7x0.6 in (38x69x15 mm)
- Use a FIBER-D-LCLC-50-xxM duplex multimode LC 50-micron fiber optic cable to extend the receiver from the transmitter up to 1,640 feet (500 meters).
- Use a duplex singlemode LC 9-micron fiber optic cable to extend the receiver from the transmitter up to 4,920 feet (1,500 meters).
- 100 to 240 VAC at 50 or 60 Hz via AC adapter.
- Power consumption: 5 W (each – transmitter and receiver).
产品简介
XTENDEX®DVI延长器，数字DVI视频和红外信号传输到300英尺远超过一个单一的CAT5/6/7电缆从一个DVI源。每个视频延长由地方单位连接到一个链接数字DVI信号源和红外发射器和远程单元连接DVI显示器和红外接收。

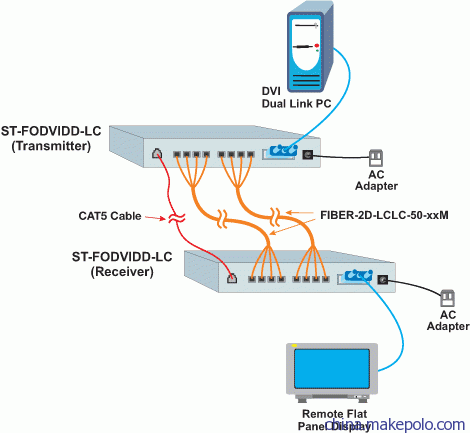

典型应用图
产品规格
Connectors (Transmitter and Receiver)
- One female DVI-I dual link connector.
- One female RJ45 connector
- Eight duplex LC connectors.
- WxDxH: 7.1x3.5x1.2 in (180x89x30 mm)
- FCC, RoHS
- Two years
- 110 to 220 VAC at 50 or 60 Hz via AC adapter
- Power consumption: 1.5 W (each - local and remote unit)
MTBF
- 560,670 hrs.
- Operating Temperature: -32 to 122°F (0 to 50°C).
- Storage Temperature: -4 to 158°F (-20 to 70°C).
- Use two FIBER-2D-LCLC-50-xxM (2 duplex LC 50-micron) multimode fiber optic cables to extend the receiver from the transmitter up to 330 feet (101 meters).
- Use one CAT5 cable connected between the transmitter and receiver for DDC (not included).
产品简介
XTENDEX®DVI延长器，数字DVI视频和红外信号传输到300英尺远超过一个单一的CAT5/6/7电缆从一个DVI源。每个视频延长由地方单位连接到一个链接数字DVI信号源和红外发射器和远程单元连接DVI显示器和红外接收。

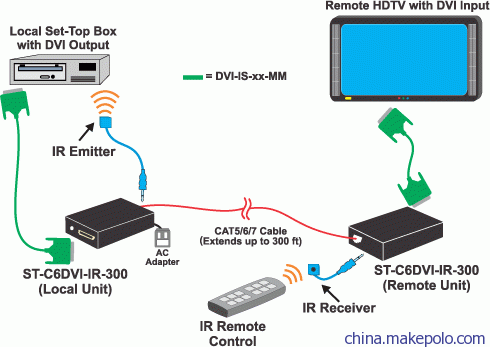

典型应用图
产品规格
Local Unit
- Compatible with a computer or HDTV video source with DVI output.
- One female DVI-I connector.
- Signal type: single link digital DVI.
- IR extension support: one female 3.5 mm port for IR emitter.
- Optional stereo audio support: 3.5 mm jack
- One female RJ45 port for sending/receiving high definition video, IR, stereo audio and DDC signals.
- Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200 (WUXGA).
- One female DVI-I connector.
- Signal type: single link digital DVI.
- IR extension support: one female 3.5 mm port for IR receiver.
- Optional stereo audio support: 3.5 mm jack.
- One female RJ45 port for sending/receiving high definition video, IR, stereo audio and DDC signals.
- Auto equalization for different lengths of CAT5/6/7 cable.
- Frequency response: 20 Hz to 20 kHz, ±1 dB.
- Signal-to-Noise Ratio (SNR): 76 dBA.
- Total Harmonic Distortion and Noise (THD+N): 0.017%.
- Stereo crosstalk: -70 dB.
- Input impedance: 10k Ohms.
- Line level output; supports multimedia speakers.
- Maximum I/O levels: 3.1Vp-p (line level).
- CD quality audio output.
- WxDxH: 3.09x3.49x1.08 in (78x89x27 mm)
- Powered from a single power supply attached to either the local or remote unit.
- Local or remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included.)
- Power consumption: 10 W.
- Heat dissipation: 34 Btu/h.
- Operating temperature: 32 to 122°F (0 to 50°C).
- Storage temperature: -20 to 140°F (-30 to 60°C).
- Operating/storage relative humidity: 17 to 90% non-condensing RH.
- CE, RoHS
- Use DVI-IS-xx-MM cable to connect a DVI source or display.
- Use DVI-HDMI-xx-MM cable to connect an HDMI source or display.
- Use DPMM-DVIDF-CBL adapter cable to connect a Mini DisplayPort source or display.
- Use SA-xx-MM cable with units with stereo audio option to connect a stereo audio source or speakers.
- Use CAT5/6/7 straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
- Use CAT6A-BULK23-BLUE-NPC CAT6a 750 MHz Solid Unshielded Bulk Cable terminated with 6A-PLG-SH-BFA CAT6a Shielded Field Assembly RJ45 Connectors for the best performance at 1080p resolution.
- IR transmitter/receiver included.
Distances and Resolutions for CAT5e/CAT6 and CAT7 CablesCableDistanceMaximum Standard ResolutionCAT5e SolidCAT5e Stranded UTPCAT6 Solid UTPCAT6a Solid UTPFlat CAT7 Stranded STPCAT7 Solid STP
| 100 feet (30 meters) | 1080p/24Hz |
| 1920x1200/60Hz feet | |
| 1080i/60Hz/12-bit feet | |
| 720p/60Hz/12-bit feet | |
| 100 feet (30 meters) | 1280x1024/60Hz |
| 720p/60Hz/12-bit feet | |
| 50 feet (15 meters) | 1080p/60Hz/12-bit |
| 1920x1200/60Hz feet | |
| 75 feet (23 meters) | 1080p/60Hz/10-bit |
| 1080i/60Hz/12-bit feet | |
| 1920x1200/60Hz feet | |
| 150 feet (46 meters) | 1080p/60Hz/8-bit |
| 1600x1200/60Hz feet | |
| 1080i/60Hz/12-bit feet | |
| 200 feet (61 meters) | 1080p/24Hz |
| 1360x768/60Hz feet | |
| 1080i/60Hz/12-bit feet | |
| 720p/60Hz/12-bit feet | |
| 250 feet (76 meters) | 1080p/24Hz |
| 1360x768/60Hz feet | |
| 1080i/60Hz/8-bit feet | |
| 480p/60Hz/12-bit feet | |
| 300 feet (91 meters) | 480p/60Hz/12-bit |
| 800x600/75Hz/8-bit feet | |
| 50 feet (15 meters) | 1080p/60Hz/12-bit |
| 1920x1200/60Hz/8-bit feet | |
| 75 feet (23 meters) | 1080p/60Hz/10-bit |
| 1920x1200/60Hz feet | |
| 1080i/60Hz/12-bit feet | |
| 100 feet (30 meters) | 1080p/60Hz/10-bit |
| 1920x1200/60Hz feet | |
| 1080i/60Hz/12-bit feet | |
| 200 feet (61 meters) | 1080i/60Hz/12-bit |
| 1360x768/60Hz feet | |
| 720p/60Hz/12-bit feet | |
| 250 feet (76 meters) | 1080i/60Hz/8-bit |
| 1024x768/60Hz feet | |
| 480p/60Hz/12-bit feet | |
| 300 feet (91 meters) | 480p/60Hz/10-bit |
| 1024x768/60Hz feet | |
| 50 feet (15 meters) | 1080p/60Hz/36-bit |
| 1920x1200/60Hz feet | |
| 100 feet (30 meters) | 1080i/60Hz/36-bit |
| 1920x1200/60Hz feet | |
| 200 feet (61 meters) | 1080p/60Hz/8-bit |
| 1024x768/60Hz feet | |
| 1080i/60Hz/12-bit feet | |
| 279 feet (85 meters) | 1080p/24Hz |
| 1024x768/60Hz feet | |
| 1080i/60Hz/8-bit feet | |
| 480p/60Hz/12-bit feet |
