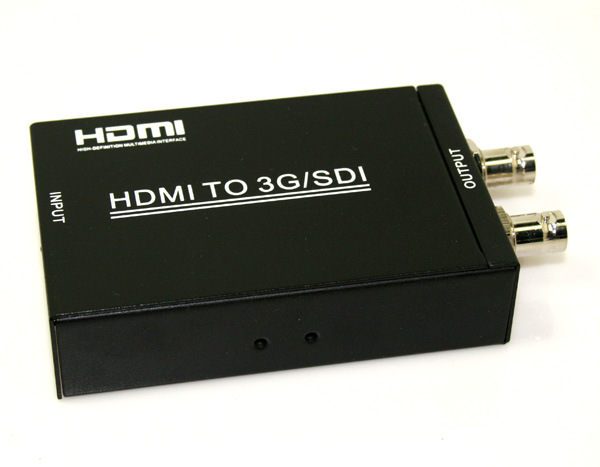

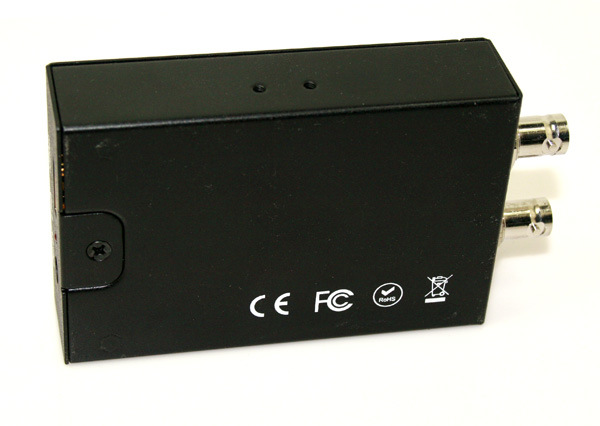

HDMI转SDI 高清转换器
型号:HDV-SH002
一、hdmi转sdi功能介绍
此款高清转换器支持将高清HDMI 信号转为广播级SDI信号输出，可以将标准的带音频的高清或者标清HDMI数字信号转为广播级质量的高清或标清信号SDI和独立的模拟音频通道进行输出。
hdmi转sdi转换器
SDI
SDI接口是数字串行接口(serial digital interface)的首字母缩写。 串行接口是把数据字的各个比特以及相应的数据通过单一通道顺序传送的接口。由于串行数字信号的数据率很高，在传送前必须经过处理。
HDMI
HDMI，高清晰度多媒体接口(英文：High Definition Multimedia Interface)是一种全数位化影像和声音传送接口，可以传送无压缩的音频信号及视频信号。HDMI可用于机顶盒、DVD播放机、个人电脑、电视游乐器、综合扩大机、数位音响与电视机。HDMI可以同时传送音频和影音信号，由于音频和视频信号采用同一条电缆，大大简化了系统的安装。
二、应用领域
广泛用于使用SDI信号的各级电视台的播出机房和非编制作领域，也广泛用于各种使用HDMI接口的光端传输领域。
三、规格参数
1.SDI格式输出:SD-SDI;HD-SDI;3G-SDI;
270M b/s, 625/25 PAL, 525/30 NTSC
1.485G b/s, 720P 23.98/24/25/29.97/30/50/59.94/60Hz
1.485G b/s, 1080i50Hz, 1080i59.94, 1080i60Hz
3G b/s, 1080p 23.98/24/25/29.97/30/50/60
2.SDI 格式兼容:SD, HD, 3G 输出格式支持;兼容SMPTE-259/274/296/372/424/425/292
3.HDMI输入:HDMI 1.2/1.3
HDMI 带宽24bit, 30bit.480i, 576i, 720P, 1080i, 1080P
4.SDI输出: 2路SDI旁通输出
5.音频输出:
SDI 内嵌8通道伴音24 bit 位宽 2通道模拟音频差分输出（可选）
6.信号指标:阻抗75欧姆直流电平偏移为 0V±500mv 信号电平为800mv±10%
四、功能特点
性能非常先进，输入端支持目前应用最广泛的HDMI1.3版本，并同时向下兼容HDMI1.2及HDMI1.1及以下版本，输出端支持目前业内最高端的3G SDI信号及1.485G SDI高清信号，并同时兼容各类SD-SDI信号。
画质输出效果一流，完全满足广电播出机房及非编系统的专业要求。
针对广电播出机房24小时不间断运营环境，方案从设计到元器件选型及生产工艺等环节都特别强调稳定性，能满足7天*24小时运行的要求。
HDMI to 3G SDI Box
OperationManual
Ⅰ:Introduction
The HDMI to 3G SDI converter allows HDMI signals to be shown on SDI displays while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to 3G SDI for long distance transmission and display your work on two 3G SDI display.
Ⅱ:Applications
HDMI signal display on SDI display(s)
Extending HDMI signal over 100M away to two SDI display
Cascade HDMI signal over SDI cable
Ⅲ:Features
Supports HDMI timing: 480i, 576i, 720p50/60, 1080p 24/25/30, 1080i 50/60, 1080p 50/60
Operation at 2.970Gbps, 2.970/1.001Gbps, 1.485Gbps, 1.485/1.001Gbps and 270Mbps
Simultaneous display HDMI source on two SDI displays
Integrated audio embedded up to 8CH PCM 48kHz for HDMI
Auto video mode detection (3G/SD/HD)
Connect with other units (SDI to HDMI) to extend your signal over long distances
Supports signal transmission distances up to 300M for SD signals, 200 for HD signals and 100M for 3G signals
Note: Cable tested with Belden 1694A. Operating distances may vary if used with another type of cable.
Ⅳ:Package
HDMI to 3G SDI Box-----------------------------1PCS

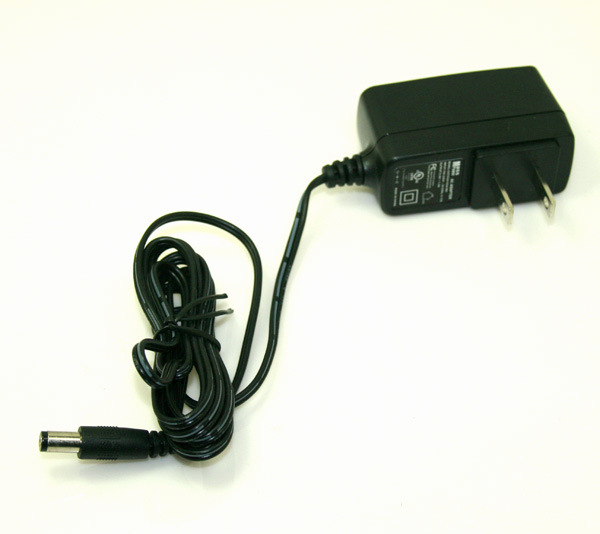

5V DC Power Supply Adaptor-----------------1PCS
Operation Manual---------------------------------1PCS
V:Specification
SDI Transmission Rates | 2.970 Gbps and 2.970/1.001 Gbps 1.485 Gbps, 1.485/1.001Gbps and 270 Mbps |
Frequency Bandwidth | 225MHz/link (HDMI 1.3) |
In/Output Support Resolution | 480i, 576i, 720p@50/59.94,60 1080i@50/59.94/60 1080p@23.98/24/25/29.97/30/50/59.94/60 |
InputPort | 1 x HDMI |
OutputPort | 2 x BNC (SDI/HD-SDI/3G-SDI) |
Power Supply | 5V DC/ 2A |
ESD Protection Human body model | ±8kV (air-gap discharge) ±4kV (contact discharge) |
SDI Cable Distance | 3Gup to 100M (BELDEN 1694A) HD up to 200M (BELDEN 1694A) SD up to 300M (BELDEN 1694A) |
Dimension (mm) | 100(W) x65(D) x 25(H) mm |
Weight (g) | 250g |

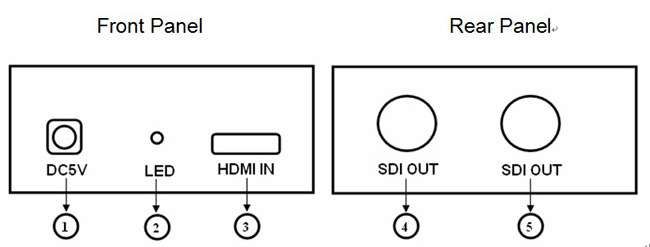

VI: Operation Controls and Functions

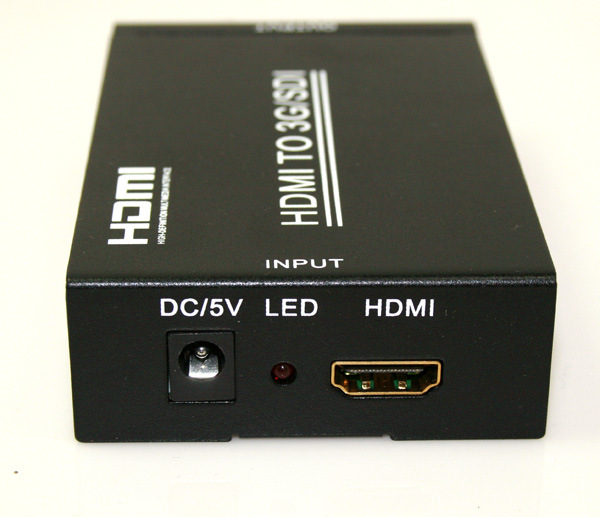

(1) DC 5V: Plug the 5V DC power supply into the unit and connect the adaptor to an AC outlet. The red LED will turn on when the power is on.
(2) Power LED: This red LED will switch on when the device is connected with the power supply.
(3) HDMI In: This slot is to connect with the input source equipment such as DVD or Blue-ray player with connection cable for input video and audio signal transmission. Or it can also be connect with DVI source equipment for video signal transmission.

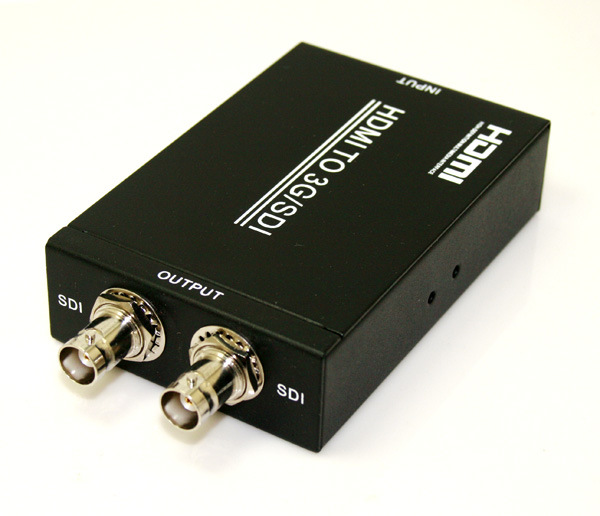

(4) 3G SDI Out 1: Connect output SDI display or with SDI to HDMI converter to cascade the signal as long as desired.
(5) 3G SDI Out 2: Connect output SDI display or with SDI to HDMI converter to cascade the signal as long as desired.
?
