【铠卫信总线制楼显编码型重复显示器量大从优】价格_厂家

品牌/型号

铠卫信/CFT-982

类型

总线型

型号

CFT-982

使用范围

小区，家庭，工厂

工作电源

24V

探测方式

/

尺寸

/

品牌

铠卫信

环境温度

-10℃～+50℃（℃）

'

厂家直销总线型楼显量大从优

产品介绍

- 产品信息
- 名称：总线型楼显
- 型号：CFT-982
- 品牌：铠卫信
- 颜色：灰色
- 产品特点
- ü Each display panel is connected with a fire alarm control panel via a RS-48 bus. At most 99 display panels may be connected with each RS-485 bus.
  ü The display panels can display fire alarm messages or feedback messages only rather than fault messages, action messages or other messages.

产品说明

添加图片

产品详细介绍

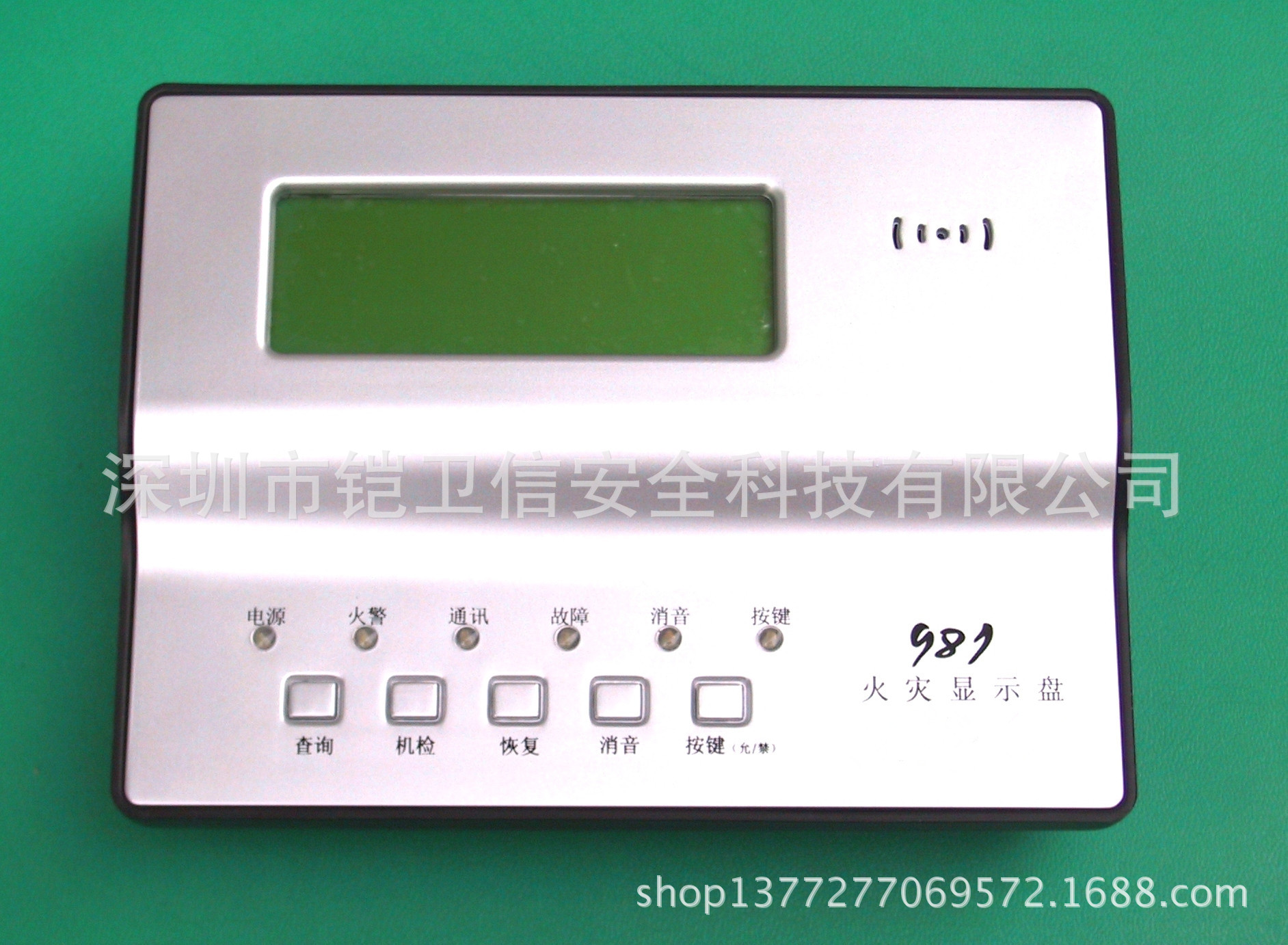

image017_副本

I. Product overview

The CFT-982 fire display panel (display panel for short) is a kind of microprocessor-controlled fire display panel developed by our company. Each display panel is connected to a fire alarm control panel produced by our company via a special RS-485 interface to process and display the data sent from the fire alarm control panel. Each floor of a building may have a display panel installed. When there is a fire alarm on the floor where the display panel is installed, or the neighboring floor above or below it, the display panel will give a horn/strobe alarm and display the floor No., the room No., and some other position information of the fire alarm.

II. Product features

ü Each display panel is connected with a fire alarm control panel via a RS-48 bus. At most 99 display panels may be connected with each RS-485 bus.

ü The display panels can display fire alarm messages or feedback messages only rather than fault messages, action messages or other messages.

ü A fire alarm control panel may be used for setting the display area of a display panel. The set display panel can display the fire alarm messages of the designated area (floor display) only. Note: See the User’s Manual of the fire alarm control panel for the setting method.

ü It can replace a JB-FSD-981 fire display panel in a 2100 system.
