Key Features

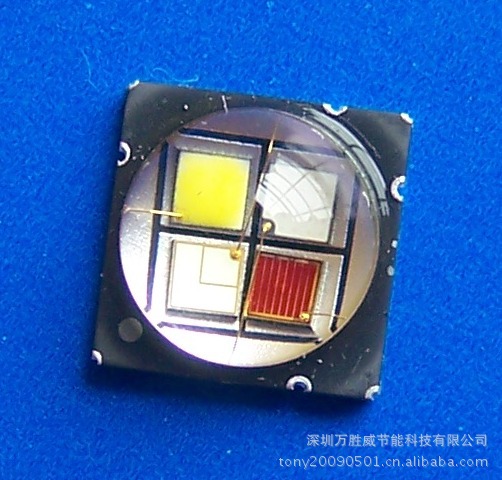

? High Luminous Efficacy 4-die RGBW LED
? Inpidually addressable Red, Green, Blue and Daylight White die

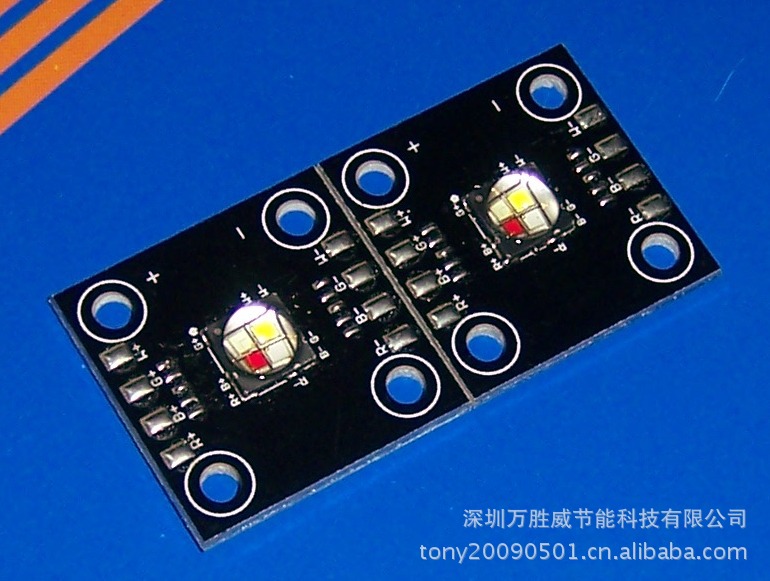

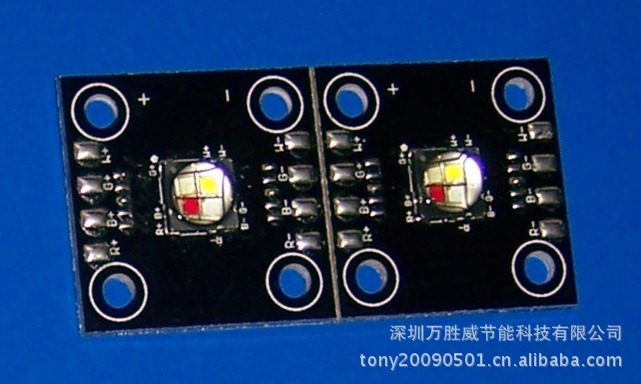

? Anodes and Cathodes are aligned for easy connection of multiple emitters
? Electrically neutral thermal path
? Ultra-small foot print – 7.0mm x 7.0mm
? Surface mount ceramic package with integrated dome lens
? Very low Thermal Resistance (1.1°C/W)
? Very high Luminous Flux density
? New industry standard for Lumen Maintenance (>90% at 65,000 Hours)
? JEDEC Level 1 for Moisture Sensitivity Level
? Autoclave compliant (JEDEC JESD22-A102-C)
? Lead (Pb) free and RoHS compliant
? Reflow solderable (up to 6 cycles)

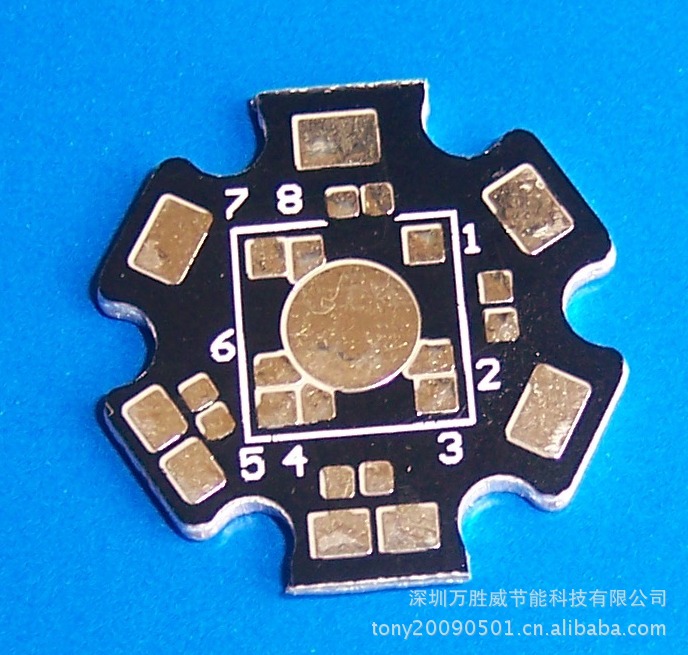

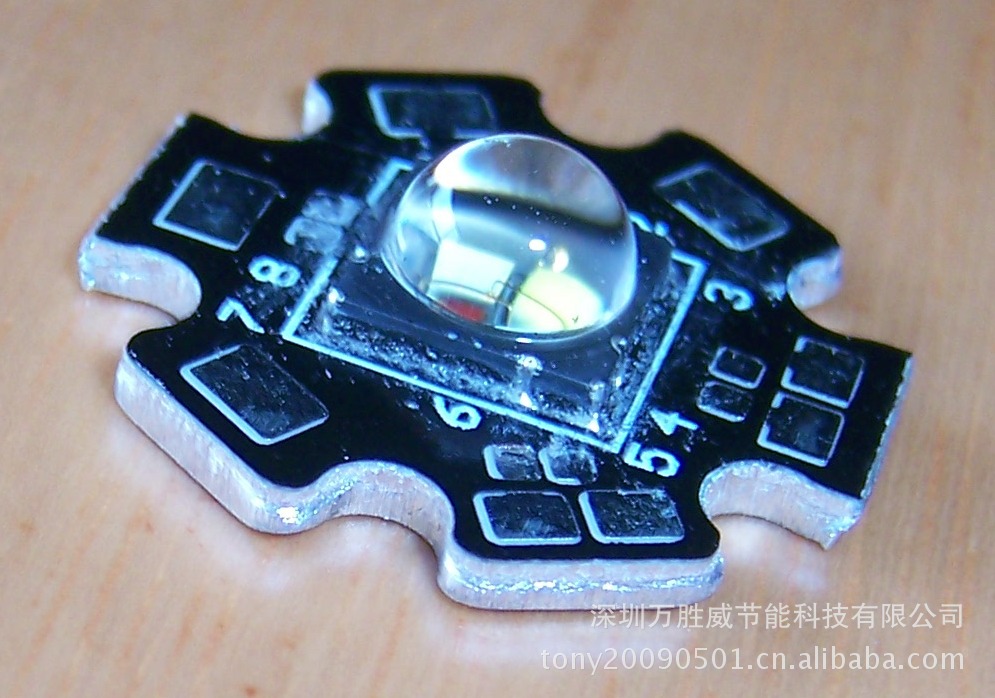

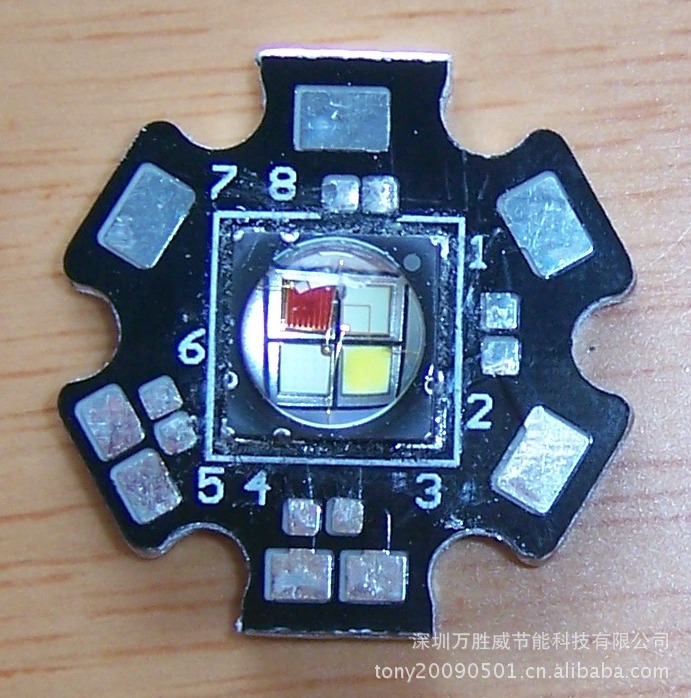

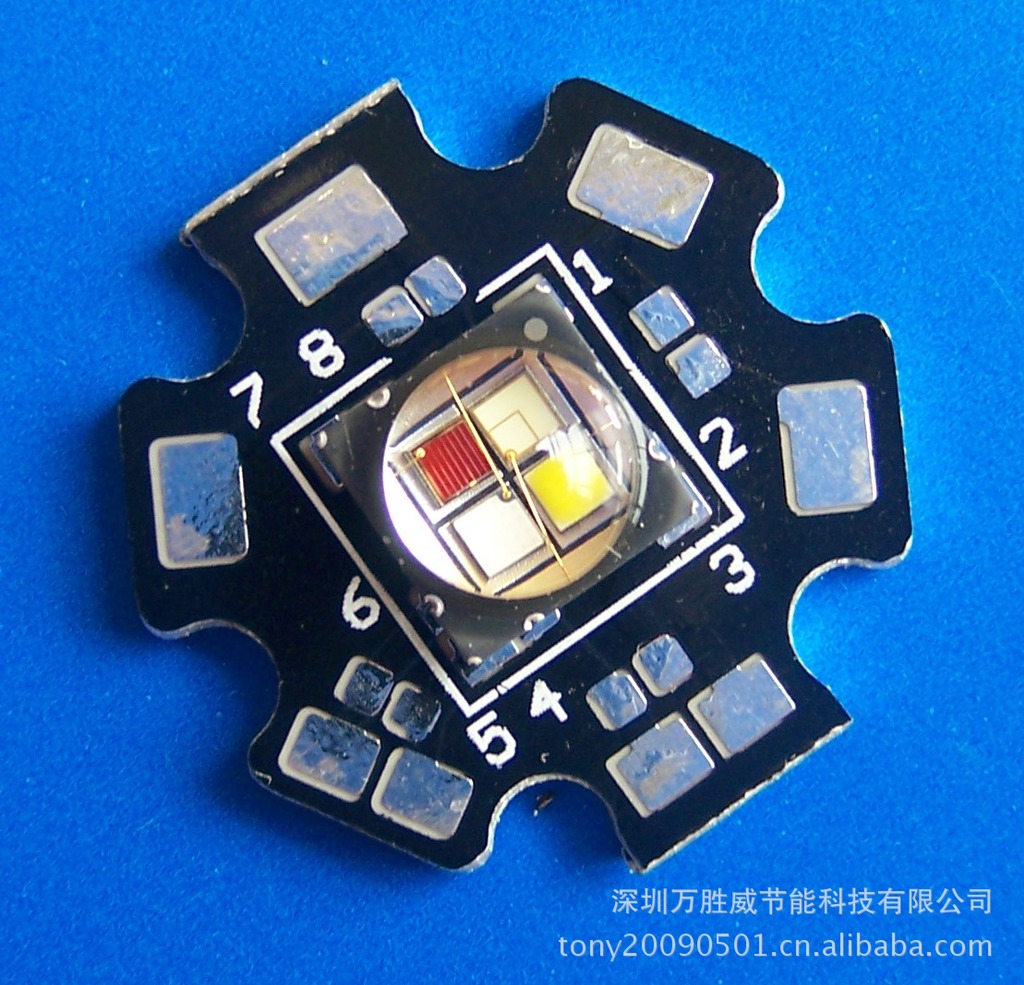

? Emitter available on Standard MCPCB (optional)
Typical Applications
? Architectural Lighting
? Retail Spot and Display Lighting
? Stage and Studio Lighting
? Hospitality Lighting
? Museum Lighting
? Video Walls and Full Color Displays
