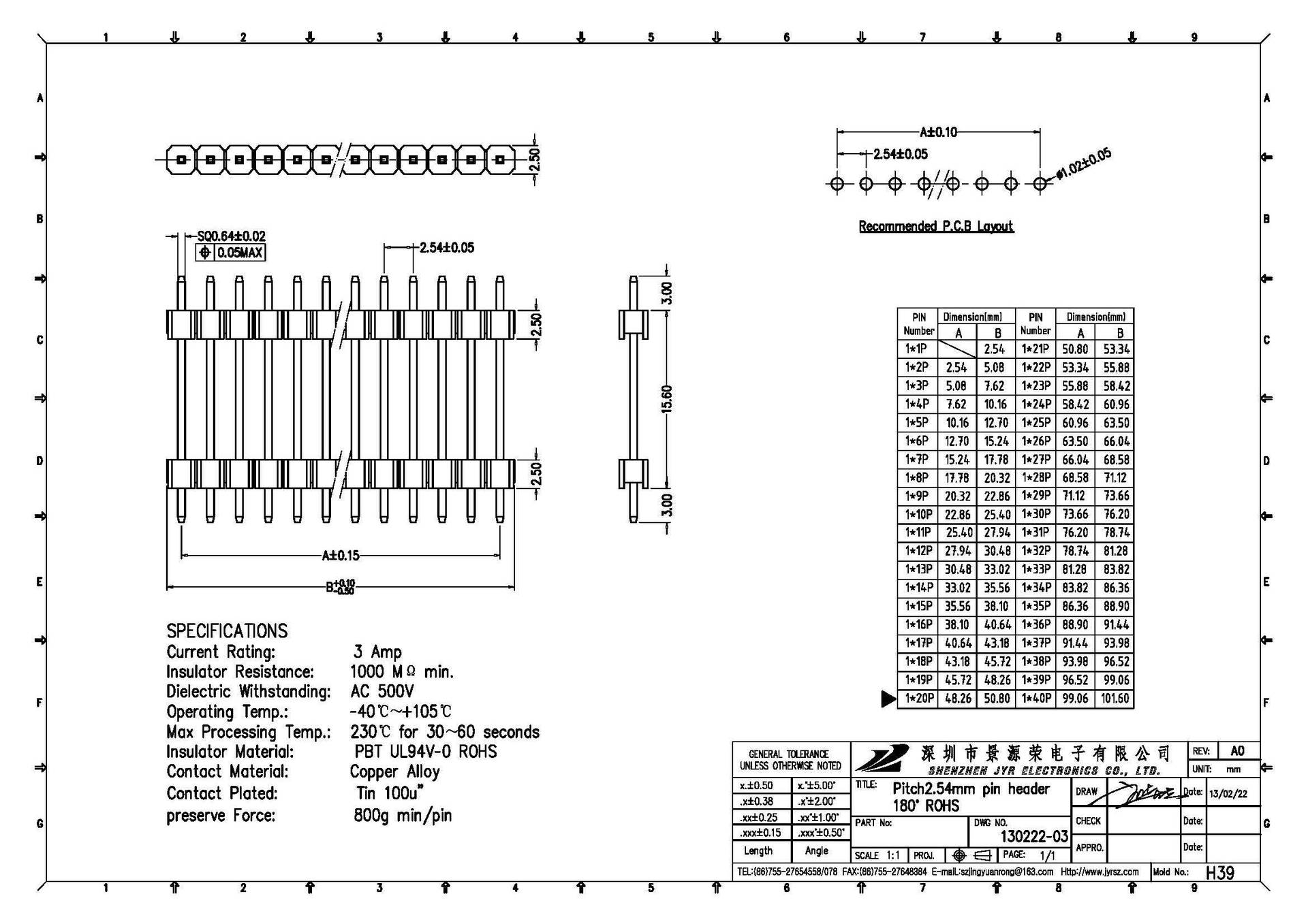

Current Rating:         3 Amp
Insulator Resistance:    1000 MΩ min.
Dielectric Withstanding:  AC 500V
Operating Temp.:       -40℃～+105℃
Max Processing Temp.:  230℃ for 30～60 seconds
Insulator Material:       PBT UL94V-0 ROHS
Contact Material:       Copper Alloy
Contact Plated:      tin 100u"
preserve Force:         800g min/pin
