【字符点阵HTM1601A】价格_厂家

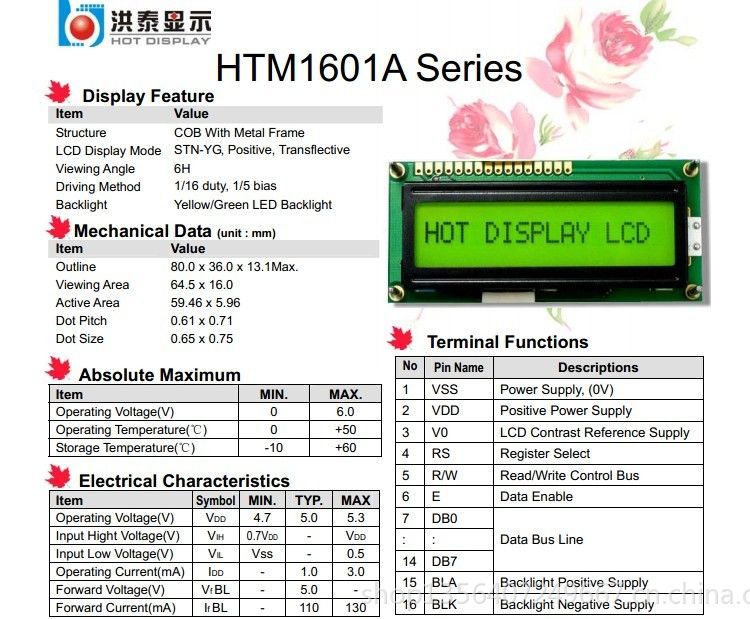

字符点阵HTM1601A

1台起批

￥14.00

深圳市龙岗区深圳

产品属性

图文详情

品牌推荐

品牌/型号

1601A

加工定制

否

品牌

HOT

型号

HTM1601A

种类

LCM液晶模块

屏幕尺寸

1（英寸）

亮度

可选cd/m2

对比度

可调

点距

065*0。75（mm）

可视角度

全角（°）

STN

83*36

HTM1601A-2

深圳市鑫洪泰电子科技有限公司成立于2004年，位于深圳市最大的工业园区龙岗宝龙工业城内的深圳虚拟大学园（龙岗）孵化基地精华中科技园，是一家专业从事LCD和LCM研发、生产、销售和售后于一体的高科技民营企业。

　　“以人为本，以质为纲，以客为尊”是我们至今秉承的经营理念。公司拥有一支经验丰富的研发、销售和生产管理人员，并具备成熟的生产工艺和先进的智能化进口专业生产设备。我们承接各种TN、HTN、STN、FSTN、TAB、COG、CSTN、TFT液晶屏TFT Module ：1.44/1.77/2.2/2.4/2.8/3.5/4.3/5/5.6/5.7/6.2/7/10.1 etc的开发设计、开模定制、单片机开发及LCD的来料加工。

　　公司自创立以来，开发出上千款标准和非标准液晶产品，广泛应用于通讯设备、家用电器、消费电子、汽车电子、教育电子、税控设备、仪器仪表、智能设备、医疗设备、工控设备、电力设备、航天、军工等等诸多领域。

　　我们为众多企业提供高品质液晶屏（LCD）和液晶模组（LCM）产品和产品方案。好的产品，好的服务，让我们赢得了客户的认可和信任，并与众多知名国有、民营和军工企业建立了良好的合作关系。有客户的大力支持，再加上我们不懈的努力，相信我们将会更具创造力和竞争力，早日跻身于国内LCD平板显示行业的前列。

产品严格执行SIO9001质量管理体系要求（通过了SGS认证），保证产品质量

鑫洪泰电子科技有限公司

联系人：洪梅

QQ:189323908

QQ:2446776505

电话：0755-29810081

手机：13631621652

www.hotlcd.com

深圳市龙岗区坪山镇宝龙工业城锦龙大道2号精华中科技园五栋

Display	模块型号	驱动/控制 IC	外形尺寸(mm)	视窗(mm)	支持电压	接口形式
Format	Model Name	Control/Driver	Outline Dimension	V.A.(mm)	Supply Voltage	interface Mode
16 x 3	HTG1603A	ST7036	39.0 x 25.5 x 2.0MAX.	35.0 x 17.0	3.3V	Parallel
16 x 3	HTG1603B	ST7036	64.0 x 33.5 x 2.0MAX.	61.0 x 25.0	3.3V	Parallel
96 X 16	HTG9616A	ST7549	29.2 x 10.8 x 1.7MAX	21.0 x 6.0	3.0V	I2C
96 X 26	HTG9626A	ST7549	32.9 x 17.0 x 1.7MAX	29.9 x 9.0	3.0V	Parallel
96 X 96	HTG9696A	SSD1848	29.9 x 35.9 x 2.9MAX	25.0 x 25.0	3.3V	Parallel / Serial
128 x 32	HTG12832A	ST7565P	34.5 x 17.9 x 2.0MAX.	32.0 x 10.1	3.0V	Parallel
	HTG12832F	ST7565R	63 x 27.5 x2.0MAX	59 x17.5	3.0V	Parallel
	HTG12832F-3	ST7565R	63.0 x 27.5 x 2.0MAX.	59.0 x 17.5	3.0V	Parallel
	HTG12832F-6	ST7565R	65.4 x 29x 3.4MAX.	59.0 x 17.5	3.0V	Parallel / BL
	HTG12832I	ST7565R	51 x 25.5x 1.7MAX.	48 x17.2	3.0V	Parallel / Serial
128 x 48	HTG12848A	ST7565R	78.7 x 35.9 x 2.8MAX.	75.3 x 28.3	3.3V	Parallel
128 x 48	HTG12848B	ST7565R	76.3 x 40.1 x 2.8MAX.	73.3 x 32.5	3.3V	Parallel / Serial
128 x 64	HTG12864C	ST7565R	39.0 x 31.1 x 1.9MAX.	36.0 x 23.5	3.0V	Parallel / Serial
	HTG12864D	ST7565R	31.0 x 27.0 x 1.7MAX.	28.0 x 18.0	3.0V	Parallel
	HTG12864I	ST7565R	69.1 x 50.0 x 2.8MAX.	65.5 x 38.0	3.0V	Serial
	HTG12864T	ST7565P	53.2 x 37.8x 2.8MAX.	45.2 x27	3.3V	Parallel / Serial
	HTG1284LQ	ST7565P	28.5 x20x 1.85MAX.	25.5 x13.3	3.3V	Parallel
	HTG12864N	ST7565P	35.8 x 33.3 x 2.7MAX	31 x 21	3.0V	Parallel
	HTG12864W	ST7565P	57 x 39.3 x 2.0MAX	52.6x 27.5	3.3V	Parallel / Serial
	HTG12864K1	NT7534	89.8 x 54.6 x 7.0MAX	70.7 x 38.8	3.0V	Serial，Add BL
	HTG12864-9	ST7565P	33.1x 31.5 x1.70MAX	30.1 x 23.3	3.3V	Serial
	HTG12864-20	ST7565P	53.2 x 37.8 x 2.8MAX.	45.2 x 27.0	3.3V	Parallel / Serial
	HTG12864-55	ST7565R	28.55 x 20.1 x1.7MAX.	26.15 x13.9	3.3V	Serial
128 x 128	HTG128128D	SSD1779	49 x 53 x2.0MAX.	46 x 38	3.3V	Parallel
	HTG128128K	S6B0741	46.5 x 55.2 x1.8MAX.	39.64 x46	3.3V	Parallel
	HTG18128Z	SSD1848	46.5 x 55.2 x 1.8MAX.	39.64 x 46.04	3.0V	Parallel,Add BL
	HTG13264C	ST7565R	57.5 x 41.0 x 2.0MAX.	54.0 x30.2	3.3V	Parallel
240 x 160	HTG240160C	ST7529	77.42 x 61.0x2.0MAX.	73.42 x 48.0	3.3V	Parallel

点阵数DisplayFormat	模块型号Model Name	驱动/控制ICControl/Driver IC	外形尺寸(mm)Outline Dimension(mm)	视窗(mm)V.A.(mm)	支持电压Supply Voltage	接口形式interface Mode
点阵数DisplayFormat	模块型号Model Name	驱动/控制ICControl/Driver IC	外形尺寸(mm)Outline Dimension(mm)	视窗(mm)V.A.(mm)	支持电压Supply Voltage	接口形式interface Mode
122 x 32	HTM12232A	SED1520	84.0 x 44.0 x 13.9MAX.	60.0 x 18.0	5.0V	Parallel
	HTM12232G
	HTM12232Z	ST7920	84.0 x 44.0 x 13.9MAX.	60.0 x 18.0	5.0V	Parallel / Serial
128 x32	HTM12832Z	ST7920	83.5 x 37.5 x 8.6Max.	64.5 x 16.0	5.0V	Parallel / Serial
128 x 64	HTM12864A	S6B0108	113.0 x 65.0 x 12.7MAX.	72.0 x 39.5	5.0V	Parallel
	HTM12864-21
	HTM12864B	S6B0108	93.0 x 70.0 x 14.1MAX.	72.0 x 39.5	5.0V	Parallel
	HTM12864C02	ST7565R	40.6 x 32.2 x 11.0MAX.	37.0 x 23.3	3.3V	Parallel / Serial
	HTM12864D	S6B0108	78.0 x 70.0 x 13.2MAX.	62.0 x 44.0	5.0V	Parallel
	HTM12864F	S6B0108	54.0 x 50.0 x 12.5MAX.	44.5 x 30.0	5.0V	Parallel
	HTM12864Z	ST7920	93.0 x 70.0 x 13.5MAX.	71.4 x 38.7	3.3V / 5.0V	Parallel / Serial
	HTM12864-6	T6963C	78.0 x 70.0 x 13.2MAX.	62.0 x 44.0	5.0V	Parallel
	HTM12864-7	ST7565R	95.0 x 55.7 x 11.8MAX.	65.0 x 38.0	3.0V	Serial
	HTM12864-8G	ST7565R	80.0 x 70.0 x 11.3MAX.	65.4 x 37.8	3.0V	Parallel
	HTM12864-18	NT7534	93.0 x 70.0 x 13.5MAX.	71.4 x 38.8	5.0V	Parallel / Serial
	HTM12864-18P	NT7534	93.0 x 70.0 x 13.5MAX.	71.4 x 38.8	5.0V	Parallel / Serial
	HTM12864-19C	ST7565R	45.0 x 42.0 x 10.5MAX.	36.0 x 23.5	3.3V	Serial
	HTM12864-23	ST7565P	54.0 x 50.0 x 9.0MAX.	45.2 x 27.0	3.3V	Parallel / Serial
	HTM12864-27	NT7534	93.0 x 70.0 x 13.5MAX.	65.5 x 38.0	3.3V / 5.0V	Serial
130 x64	HTM13064A	S6B0724	120 x 64x 13MAX.	83.3 x 41	3.3V	Parallel / Serial
160 x 128	HTM160128B	T6963C	129.0 x 97.0 x 16.5MAX.	101.0 x 82.0	5.0V	Parallel
160 x 160	HTM160160C	UC1698u	82.4 x 66.0 x 9.5MAX.	60.0 x 60.0	3.0V	Parallel
192 x 64	HTM19264A	S6B0108	130.0 x 65.0 x13.5MAX.	103.92 x 38.94	5.0V	Parallel
192 x 64	HTM19264C	S6B0108	100.0 x 60.0 x 11.6MAX.	81.6 x 31.0	5.0V	Parallel
240 x 64	HTM24064A	T6963C	180 x 62.0 x 14.5MAX.	132.0 x 39.0	5.0V	Parallel
240 x 64	HTM24064C	T6963C	180 x 75.0 x 10.0MAX.	132.0 x 39.0	5.0V	Parallel
240 x 128	HTM240128A	T6963C	144.0 x 104.0 x 12.0MAX.	114.0 x 64.0	5.0V	Parallel
240 x 128	HTM240128Z	RA8806	144.0 x 104.0 x 14.6MAX.	114.0 x 64.0	5.0V	Parallel
256 x 32	HTM25632A	S6B0108	151.0 x 37.8 x 12.0MAX.	119.0 x 23.0	3.3V / 5.0V	Parallel
256 x 128	HTM256128B		147.0 x 116.0 x 14.6MAX.	122.0 x 70.0	5.0V	Parallel
240 x 160	HTM240160F	ST7529	87.0 x 73.0 x 10.0MAX.	72.9 x 48.0	3.3V	Parallel
240 x 160	HTM240160E	SSD13700	135.0 x 95.0 x 12.0MAX.	109.0 x 74.0	3.3V	Parallel
320 x 240	HTM320240A	RA8835/8806	160.0 x 109.0 x 13.0MAX.	122.0 x 92.0	3.3V / 5.0V	Parallel
	HTM320240B	NT7701/7702	122.0 x 94.0 x 13.0MAX.	100.0 x 76.0	5.0V	4-bit Parallel
	HTM320240F-1	RA8835	92.0 x 71.3 x 7.9MAX.	78.78 x 59.58	3.3V	Parallel
	HTM320240T	RA8835/RA8803	160x 109 x 13MAX.	122 x92	5	Parallel
	HTM32020I	RA8806	102.0 x81.4 x 8.5MAX.	78.78 x 59.58	3.3V	Parallel
640 x 200	HTM640200A	S6B2086	260.0 x 110.7 x 12.9MAX.	216.0 x 83.2	5.0V	4-bit Parallel

★

Format	模块型号	外形尺寸(mm)	视窗(mm)	支持电压	备注
Char x Line	Model Name	Outline Dimension(mm)	V.A.(mm)	Supply Voltage	Remark
8 x 2	HTM0802B	58.0 x 32.0 x 10.3MAX.	38.0 x 16.0	5.0V
16 x 1	HTM1601A	80.0 x 36.0 x 10.1MAX.	64.5 x 16.0	3.3V / 5.0V	反射Reflective
16 x 2	HTM1602A	80.0 x 36.0 x 13.1MAX.	64.5 x 16.0	3.3V / 5.0V
	HTM1602B	122.0 x 44.0 x 14.6MAX.	99.0 x 24.0	5.0V	STN-Gray/FSTN
	HTM1602-17	93.8 x47 x 10.1MAX.	70 x 33	5.0V
	HTM1602-8	84.0 x 44.0 x 13.5MAX.	61.0 x 15.8	3.3V / 5.0V
	HTM1602-9	100.0 x 38.0 x 13.0MAX.	80.0 x 20.5	3.3V / 5.0V
	HTM1602-10	85.0 x 29.5 x 13.1MAX.	64.5 x 16.0	3.3V / 5.0V
	HTM1602-12	72.0 x 36.0 x 10.1MAX.	64.5 x 16.0	3.3V / 5.0V	反射Reflective
	HTM1602-13	91.0 x47.0 x 14.0MAX.	78.0 x 26.8	5.0V
	HTM16002-18	72.0 x 36.0 x 10.1MAX.	64.5 x 16.0	3.3V / 5.0V
16 x 4	HTM1604A	87.0 x 60.0 x 14.3MAX.	61.7 x 25.2	3.3V / 5.0V
16 x 4	HTM1604B	87.0 x 60.0 x 14.3MAX.	65.5 x 25.2	3.3V / 5.0V
20 x 2	HTM2002A	116.0 x 37.0 x 14.6MAX.	83.0 x 18.6	3.3V / 5.0V
20 x 4	HTM2004A	98.0 x 60.0 x 14.2MAX.	76.0 x 25.8	3.3V / 5.0V
	HTM2004-2	105.0 x 38.0 x 13.7MAX.	76.0 x 25.2	3.3V / 5.0V	With FFC
	HTM2004-5	77.0 x 47.0 x 14.7MAX.	60.0 x 22.2	3.3V / 5.0V
40 x 2	HTM4002A	182.0 x 33.5 x 14.0MAX.	155.1 x 16.0	3.3V / 5.0V
40 x 2	HTM4002B	182.0 x 33.5 x 14.0MAX.	155.1 x 16.0	3.3V / 5.0V
40 x 4	HTM4004A	190.0 x 54.0 x 14.9MAX.	147.0 x 29.5	3.3V / 5.0V

产品型号	外形尺寸(mm)	视域尺寸(mm)	控制器	说明
HTM68001	101.0*43.5	63.0*34.0	1622	无线公话
HTM68007	90.0*59.0	63.0*34.0	1622	无线公话
HTM68008	106.0*60.0	81.0*45.0	1622	公话/中文
HTM68009	106.0*60.0	81.0*45.0	1622	公话/英文
HTM68010	106.0*63.0	81.0*45.0	1622	无线公话
HTM68011	106.0*52.0	81.0*45.0	1622	无线公话
HTM68012	118.0*53.3	81.0*45.0	1622	无线公话
HTM68015	188.5*121.0	159.0*89.0	1621	四路计费器
HTM68016	186.0*161.0	168.0*125.0	1622	八路计费器
HTM68017	95.0*44.0	74.0*20.0	1621	单路计费器
HTM68018	188.5*121.0	159.0*89.0	1621	四路计费/英文
HTM68019	110.3*79.0	86.8*54.5	1621
HTM68020	40.6*32.2	37.0*23.3	1621
HTM68021	170.0*99.0	160.0*91.0	1621	四路英文计费器
HTM68029	28.0*20.5	25.0*15.0	无	温控LCD
HTM68030	143.2*155.0	140.0*144.4	无	罗盘LCD
HTM68031	50.0*28.0	47.0*22.0	无	医疗仪表LCD
