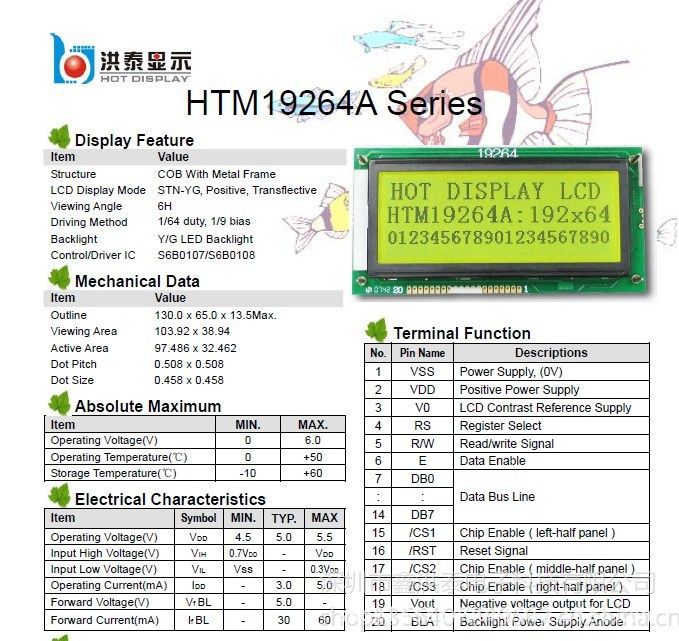

图形点阵显示屏模组HTM19264A 电话：
深圳市鑫洪泰电子科技有限公司
深圳市龙岗区深圳
产品属性
图文详情
品牌推荐
品牌/型号
鑫洪泰19264A
加工定制
是
品牌
鑫洪泰
型号
HTM19264A
种类
LCM液晶模块
屏幕尺寸
2.5（英寸）
色彩
可选
亮度
可选cd/m2
对比度
可调
分辨率
192*64
点距
0.508*0.508（mm）
可视角度
全角（°）
STN
Backlight :Y/G LED Backlight
'
'
| Display | 模块型号 | 驱动/控制 IC | 外形尺寸(mm) | 视窗(mm) | 支持电压 | 接口形式 | |||||||||
| Format | Model Name | Control/Driver | Outline Dimension | V.A.(mm) | Supply Voltage | interface Mode | |||||||||
| 16 x 3 | HTG1603A | ST7036 | 39.0 x 25.5 x 2.0MAX. | 35.0 x 17.0 | 3.3V | Parallel | |||||||||
| HTG1603B | ST7036 | 64.0 x 33.5 x 2.0MAX. | 61.0 x 25.0 | 3.3V | Parallel | ||||||||||
| 96 X 16 | HTG9616A | ST7549 | 29.2 x 10.8 x 1.7MAX | 21.0 x 6.0 | 3.0V | I2C | |||||||||
| 96 X 26 | HTG9626A | ST7549 | 32.9 x 17.0 x 1.7MAX | 29.9 x 9.0 | 3.0V | Parallel | |||||||||
| 96 X 96 | HTG9696A | SSD1848 | 29.9 x 35.9 x 2.9MAX | 25.0 x 25.0 | 3.3V | Parallel / Serial | |||||||||
| 128 x 32 | HTG12832A | ST7565P | 34.5 x 17.9 x 2.0MAX. | 32.0 x 10.1 | 3.0V | Parallel | |||||||||
| HTG12832F | ST7565R | 63 x 27.5 x2.0MAX | 59 x17.5 | 3.0V | Parallel | ||||||||||
| HTG12832F-3 | ST7565R | 63.0 x 27.5 x 2.0MAX. | 59.0 x 17.5 | 3.0V | Parallel | ||||||||||
| HTG12832F-6 | ST7565R | 65.4 x 29x 3.4MAX. | 59.0 x 17.5 | 3.0V | Parallel / BL | ||||||||||
| HTG12832I | ST7565R | 51 x 25.5x 1.7MAX. | 48 x17.2 | 3.0V | Parallel / Serial | ||||||||||
| 128 x 48 | HTG12848A | ST7565R | 78.7 x 35.9 x 2.8MAX. | 75.3 x 28.3 | 3.3V | Parallel | |||||||||
| HTG12848B | ST7565R | 76.3 x 40.1 x 2.8MAX. | 73.3 x 32.5 | 3.3V | Parallel / Serial | ||||||||||
| 128 x 64 | HTG12864C | ST7565R | 39.0 x 31.1 x 1.9MAX. | 36.0 x 23.5 | 3.0V | Parallel / Serial | |||||||||
| HTG12864D | ST7565R | 31.0 x 27.0 x 1.7MAX. | 28.0 x 18.0 | 3.0V | Parallel | ||||||||||
| HTG12864I | ST7565R | 69.1 x 50.0 x 2.8MAX. | 65.5 x 38.0 | 3.0V | Serial | ||||||||||
| HTG12864T | ST7565P | 53.2 x 37.8x 2.8MAX. | 45.2 x27 | 3.3V | Parallel / Serial | ||||||||||
| HTG1284LQ | ST7565P | 28.5 x20x 1.85MAX. | 25.5 x13.3 | 3.3V | Parallel | ||||||||||
| HTG12864N | ST7565P | 35.8 x 33.3 x 2.7MAX | 31 x 21 | 3.0V | Parallel | ||||||||||
| HTG12864W | ST7565P | 57 x 39.3 x 2.0MAX | 52.6x 27.5 | 3.3V | Parallel / Serial | ||||||||||
| HTG12864K1 | NT7534 | 89.8 x 54.6 x 7.0MAX | 70.7 x 38.8 | 3.0V | Serial，Add BL | ||||||||||
| HTG12864-9 | ST7565P | 33.1x 31.5 x1.70MAX | 30.1 x 23.3 | 3.3V | Serial | ||||||||||
| HTG12864-20 | ST7565P | 53.2 x 37.8 x 2.8MAX. | 45.2 x 27.0 | 3.3V | Parallel / Serial | ||||||||||
| HTG12864-55 | ST7565R | 28.55 x 20.1 x1.7MAX. | 26.15 x13.9 | 3.3V | Serial | ||||||||||
| 128 x 128 | HTG128128D | SSD1779 | 49 x 53 x2.0MAX. | 46 x 38 | 3.3V | Parallel | |||||||||
| HTG128128K | S6B0741 | 46.5 x 55.2 x1.8MAX. | 39.64 x46 | 3.3V | Parallel | ||||||||||
| HTG18128Z | SSD1848 | 46.5 x 55.2 x 1.8MAX. | 39.64 x 46.04 | 3.0V | Parallel,Add BL | ||||||||||
| HTG13264C | ST7565R | 57.5 x 41.0 x 2.0MAX. | 54.0 x30.2 | 3.3V | Parallel | ||||||||||
| 240 x 160 | HTG240160C | ST7529 | 77.42 x 61.0x2.0MAX. | 73.42 x 48.0 | 3.3V | Parallel | |||||||||
| 点阵数DisplayFormat | 模块型号Model Name | 驱动/控制ICControl/Driver IC | 外形尺寸(mm)Outline Dimension(mm) | 视窗(mm)V.A.(mm) | 支持电压Supply Voltage | 接口形式interface Mode | |||||||||
| 122 x 32 | HTM12232A | SED1520 | 84.0 x 44.0 x 13.9MAX. | 60.0 x 18.0 | 5.0V | Parallel | |||||||||
| HTM12232G | |||||||||||||||
| HTM12232Z | ST7920 | 84.0 x 44.0 x 13.9MAX. | 60.0 x 18.0 | 5.0V | Parallel / Serial | ||||||||||
| 128 x32 | HTM12832Z | ST7920 | 83.5 x 37.5 x 8.6Max. | 64.5 x 16.0 | 5.0V | Parallel / Serial | |||||||||
| 128 x 64 | HTM12864A | S6B0108 | 113.0 x 65.0 x 12.7MAX. | 72.0 x 39.5 | 5.0V | Parallel | |||||||||
| HTM12864-21 | |||||||||||||||
| HTM12864B | S6B0108 | 93.0 x 70.0 x 14.1MAX. | 72.0 x 39.5 | 5.0V | Parallel | ||||||||||
| HTM12864C02 | ST7565R | 40.6 x 32.2 x 11.0MAX. | 37.0 x 23.3 | 3.3V | Parallel / Serial | ||||||||||
| HTM12864D | S6B0108 | 78.0 x 70.0 x 13.2MAX. | 62.0 x 44.0 | 5.0V | Parallel | ||||||||||
| HTM12864F | S6B0108 | 54.0 x 50.0 x 12.5MAX. | 44.5 x 30.0 | 5.0V | Parallel | ||||||||||
| HTM12864Z | ST7920 | 93.0 x 70.0 x 13.5MAX. | 71.4 x 38.7 | 3.3V / 5.0V | Parallel / Serial | ||||||||||
| HTM12864-6 | T6963C | 78.0 x 70.0 x 13.2MAX. | 62.0 x 44.0 | 5.0V | Parallel | ||||||||||
| HTM12864-7 | ST7565R | 95.0 x 55.7 x 11.8MAX. | 65.0 x 38.0 | 3.0V | Serial | ||||||||||
| HTM12864-8G | ST7565R | 80.0 x 70.0 x 11.3MAX. | 65.4 x 37.8 | 3.0V | Parallel | ||||||||||
| HTM12864-18 | NT7534 | 93.0 x 70.0 x 13.5MAX. | 71.4 x 38.8 | 5.0V | Parallel / Serial | ||||||||||
| HTM12864-18P | NT7534 | 93.0 x 70.0 x 13.5MAX. | 71.4 x 38.8 | 5.0V | Parallel / Serial | ||||||||||
| HTM12864-19C | ST7565R | 45.0 x 42.0 x 10.5MAX. | 36.0 x 23.5 | 3.3V | Serial | ||||||||||
| HTM12864-23 | ST7565P | 54.0 x 50.0 x 9.0MAX. | 45.2 x 27.0 | 3.3V | Parallel / Serial | ||||||||||
| HTM12864-27 | NT7534 | 93.0 x 70.0 x 13.5MAX. | 65.5 x 38.0 | 3.3V / 5.0V | Serial | ||||||||||
| 130 x64 | HTM13064A | S6B0724 | 120 x 64x 13MAX. | 83.3 x 41 | 3.3V | Parallel / Serial | |||||||||
| 160 x 128 | HTM160128B | T6963C | 129.0 x 97.0 x 16.5MAX. | 101.0 x 82.0 | 5.0V | Parallel | |||||||||
| 160 x 160 | HTM160160C | UC1698u | 82.4 x 66.0 x 9.5MAX. | 60.0 x 60.0 | 3.0V | Parallel | |||||||||
| 192 x 64 | HTM19264A | S6B0108 | 130.0 x 65.0 x13.5MAX. | 103.92 x 38.94 | 5.0V | Parallel | |||||||||
| HTM19264C | S6B0108 | 100.0 x 60.0 x 11.6MAX. | 81.6 x 31.0 | 5.0V | Parallel | ||||||||||
| 240 x 64 | HTM24064A | T6963C | 180 x 62.0 x 14.5MAX. | 132.0 x 39.0 | 5.0V | Parallel | |||||||||
| HTM24064C | T6963C | 180 x 75.0 x 10.0MAX. | 132.0 x 39.0 | 5.0V | Parallel | ||||||||||
| 240 x 128 | HTM240128A | T6963C | 144.0 x 104.0 x 12.0MAX. | 114.0 x 64.0 | 5.0V | Parallel | |||||||||
| HTM240128Z | RA8806 | 144.0 x 104.0 x 14.6MAX. | 114.0 x 64.0 | 5.0V | Parallel | ||||||||||
| 256 x 32 | HTM25632A | S6B0108 | 151.0 x 37.8 x 12.0MAX. | 119.0 x 23.0 | 3.3V / 5.0V | Parallel | |||||||||
| 256 x 128 | HTM256128B | 147.0 x 116.0 x 14.6MAX. | 122.0 x 70.0 | 5.0V | Parallel | ||||||||||
| 240 x 160 | HTM240160F | ST7529 | 87.0 x 73.0 x 10.0MAX. | 72.9 x 48.0 | 3.3V | Parallel | |||||||||
| HTM240160E | SSD13700 | 135.0 x 95.0 x 12.0MAX. | 109.0 x 74.0 | 3.3V | Parallel | ||||||||||
| 320 x 240 | HTM320240A | RA8835/8806 | 160.0 x 109.0 x 13.0MAX. | 122.0 x 92.0 | 3.3V / 5.0V | Parallel | |||||||||
| HTM320240B | NT7701/7702 | 122.0 x 94.0 x 13.0MAX. | 100.0 x 76.0 | 5.0V | 4-bit Parallel | ||||||||||
| HTM320240F-1 | RA8835 | 92.0 x 71.3 x 7.9MAX. | 78.78 x 59.58 | 3.3V | Parallel | ||||||||||
| HTM320240T | RA8835/RA8803 | 160x 109 x 13MAX. | 122 x92 | 5 | Parallel | ||||||||||
| HTM32020I | RA8806 | 102.0 x81.4 x 8.5MAX. | 78.78 x 59.58 | 3.3V | Parallel | ||||||||||
| 640 x 200 | HTM640200A | S6B2086 | 260.0 x 110.7 x 12.9MAX. | 216.0 x 83.2 | 5.0V | 4-bit Parallel | |||||||||
| ★ | |||||||||||||||
| Format | 模块型号 | 外形尺寸(mm) | 视窗(mm) | 支持电压 | 备注 | ||||||||||
| Char x Line | Model Name | Outline Dimension(mm) | V.A.(mm) | Supply Voltage | Remark | ||||||||||
| 8 x 2 | HTM0802B | 58.0 x 32.0 x 10.3MAX. | 38.0 x 16.0 | 5.0V | |||||||||||
| 16 x 1 | HTM1601A | 80.0 x 36.0 x 10.1MAX. | 64.5 x 16.0 | 3.3V / 5.0V | 反射Reflective | ||||||||||
| 16 x 2 | HTM1602A | 80.0 x 36.0 x 13.1MAX. | 64.5 x 16.0 | 3.3V / 5.0V | |||||||||||
| HTM1602B | 122.0 x 44.0 x 14.6MAX. | 99.0 x 24.0 | 5.0V | STN-Gray/FSTN | |||||||||||
| HTM1602-17 | 93.8 x47 x 10.1MAX. | 70 x 33 | 5.0V | ||||||||||||
| HTM1602-8 | 84.0 x 44.0 x 13.5MAX. | 61.0 x 15.8 | 3.3V / 5.0V | ||||||||||||
| HTM1602-9 | 100.0 x 38.0 x 13.0MAX. | 80.0 x 20.5 | 3.3V / 5.0V | ||||||||||||
| HTM1602-10 | 85.0 x 29.5 x 13.1MAX. | 64.5 x 16.0 | 3.3V / 5.0V | ||||||||||||
| HTM1602-12 | 72.0 x 36.0 x 10.1MAX. | 64.5 x 16.0 | 3.3V / 5.0V | 反射Reflective | |||||||||||
| HTM1602-13 | 91.0 x47.0 x 14.0MAX. | 78.0 x 26.8 | 5.0V | ||||||||||||
| HTM16002-18 | 72.0 x 36.0 x 10.1MAX. | 64.5 x 16.0 | 3.3V / 5.0V | ||||||||||||
| 16 x 4 | HTM1604A | 87.0 x 60.0 x 14.3MAX. | 61.7 x 25.2 | 3.3V / 5.0V | |||||||||||
| HTM1604B | 87.0 x 60.0 x 14.3MAX. | 65.5 x 25.2 | 3.3V / 5.0V | ||||||||||||
| 20 x 2 | HTM2002A | 116.0 x 37.0 x 14.6MAX. | 83.0 x 18.6 | 3.3V / 5.0V | |||||||||||
| 20 x 4 | HTM2004A | 98.0 x 60.0 x 14.2MAX. | 76.0 x 25.8 | 3.3V / 5.0V | |||||||||||
| HTM2004-2 | 105.0 x 38.0 x 13.7MAX. | 76.0 x 25.2 | 3.3V / 5.0V | With FFC | |||||||||||
| HTM2004-5 | 77.0 x 47.0 x 14.7MAX. | 60.0 x 22.2 | 3.3V / 5.0V | ||||||||||||
| 40 x 2 | HTM4002A | 182.0 x 33.5 x 14.0MAX. | 155.1 x 16.0 | 3.3V / 5.0V | |||||||||||
| HTM4002B | 182.0 x 33.5 x 14.0MAX. | 155.1 x 16.0 | 3.3V / 5.0V | ||||||||||||
| 40 x 4 | HTM4004A | 190.0 x 54.0 x 14.9MAX. | 147.0 x 29.5 | 3.3V / 5.0V | |||||||||||
| 产品型号 | 外形尺寸(mm) | 视域尺寸(mm) | 控制器 | 说明 | |||||||||||
| HTM68001 | 101.0*43.5 | 63.0*34.0 | 1622 | 无线公话 | |||||||||||
| HTM68007 | 90.0*59.0 | 63.0*34.0 | 1622 | 无线公话 | |||||||||||
| HTM68008 | 106.0*60.0 | 81.0*45.0 | 1622 | 公话/中文 | |||||||||||
| HTM68009 | 106.0*60.0 | 81.0*45.0 | 1622 | 公话/英文 | |||||||||||
| HTM68010 | 106.0*63.0 | 81.0*45.0 | 1622 | 无线公话 | |||||||||||
| HTM68011 | 106.0*52.0 | 81.0*45.0 | 1622 | 无线公话 | |||||||||||
| HTM68012 | 118.0*53.3 | 81.0*45.0 | 1622 | 无线公话 | |||||||||||
| HTM68015 | 188.5*121.0 | 159.0*89.0 | 1621 | 四路计费器 | |||||||||||
| HTM68016 | 186.0*161.0 | 168.0*125.0 | 1622 | 八路计费器 | |||||||||||
| HTM68017 | 95.0*44.0 | 74.0*20.0 | 1621 | 单路计费器 | |||||||||||
| HTM68018 | 188.5*121.0 | 159.0*89.0 | 1621 | 四路计费/英文 | |||||||||||
| HTM68019 | 110.3*79.0 | 86.8*54.5 | 1621 | ||||||||||||
| HTM68020 | 40.6*32.2 | 37.0*23.3 | 1621 | ||||||||||||
| HTM68021 | 170.0*99.0 | 160.0*91.0 | 1621 | 四路英文计费器 | |||||||||||
| HTM68029 | 28.0*20.5 | 25.0*15.0 | 无 | 温控LCD | |||||||||||
| HTM68030 | 143.2*155.0 | 140.0*144.4 | 无 | 罗盘LCD | |||||||||||
| HTM68031 | 50.0*28.0 | 47.0*22.0 | 无 | 医疗仪表LCD | |||||||||||
| |||||||||||||||
