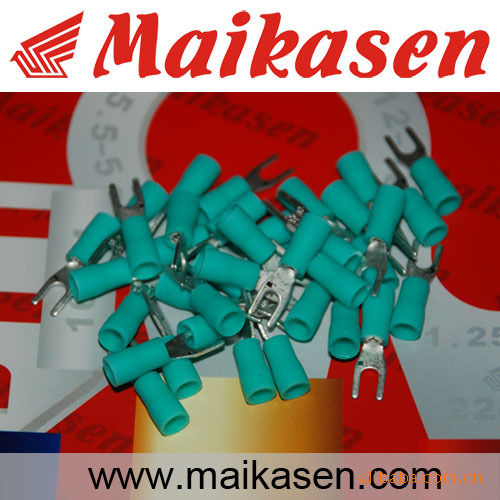

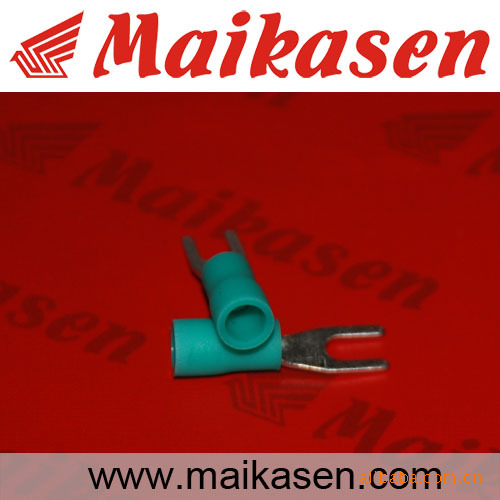

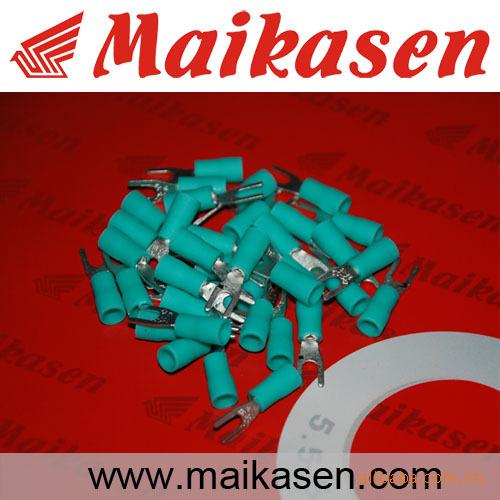

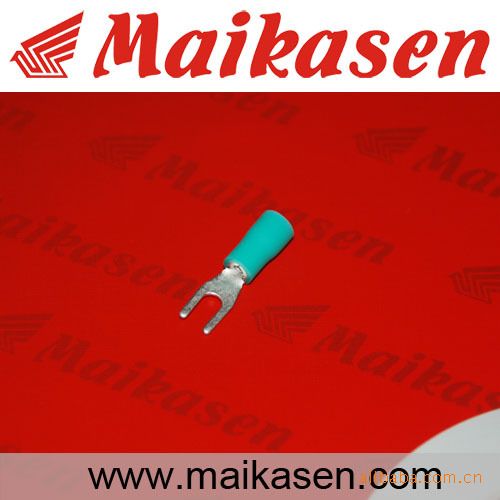

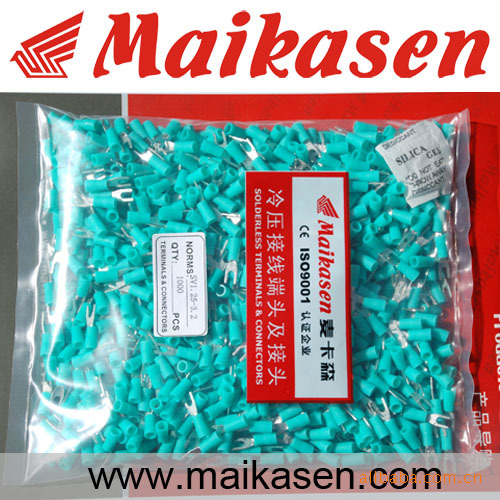

SV1.25-3.2,叉形预绝缘端头,冷压端头(图)
品牌/型号
MaiKaSen/麦卡森/SV1.25-3.2
 |
 |
| |
|
| |
| |
 |
| |
| | | | | | | | Lead section: 0.5-1.5mm2(22-16) Max current: =9A| Type | Number of ANSI bolt | Diameter of bolt mouth d2 | B(mm) | L(mm) | F(mm) | H(mm) | D(mm) | Color | | SV1.25-3.2 | #4 | 3.2mm | 5.7 | 21.2 | 6.5 | 10.0 | 4.3 | Red | | SV1.25-3.5 | #6 | 3.7mm | 5.7 | 21.2 | 6.5 | | SV1.25-3.5 | #6 | 3.7mm | 6.4 | 21.2 | 6.5 | | SV1.25-3.5 | #8 | 4.3mm | 6.4 | 21.2 | 6.5 | | SV1.25-4 | #8 | 4.3mm | 7.2 | 21.2 | 6.5 | | SV1.25-4 | #8 | 4.3mm | 8.1 | 21.2 | 6.5 | | SV1.25-5 | #10 | 5.3mm | 8.1 | 21.2 | 6.5 | | SV1.25-6 | 1/4 | 5.3mm | 9.5 | 21.2 | 6.5 | | SV1.25-8 | 5/16 | 6.5mm | 9.5 | 21.2 | 6.5 | | SV1.25-10 | 3/8 | 6.5mm | 12.0 | 21.2 | 11.0 |
Lead section: 1.5-2.5mm2(16-14) Max current: =27A | Type | Number of ANSI bolt | Diameter of bolt mouth d2 | B(mm) | L(mm) | F(mm) | H(mm) | D(mm) | Color | | SV2-3 | #4 | 3.2mm | 6.6 | 17.8 | 4.3 | 10.0 | 4.9 | Blue | | SV2-3.5 | #6 | 3.7mm | 6.6 | 17.8 | 4.3 | | SV2-3.5 | #6 | 3.7mm | 6.6 | 21.0 | 7.0 | | SV2-3.5 | #8 | 4.3mm | 8.5 | 22.5 | 7.75 | | SV2-4 | #8 | 4.3mm | 6.6 | 21.0 | 7.0 | | SV2-4 | #8 | 4.3mm | 8.5 | 22.5 | 7.75 | | SV2-5 | #10 | 5.3mm | 8.5 | 22.5 | 7.75 | | SV2-5 | #10 | 5.3mm | 9.5 | 22.5 | 7.25 | | SV2-6 | 1/4 | 6.5mm | 12.0 | 27.6 | 11.0 | | SV2-8 | 5/16 | 8.4mm | 12.0 | 27.6 | 11.0 | | SV2-8 | 3/8 | 10.5mm | 13.6 | 30.2 | 13.9 |
Lead section: 2.5-4mm2(14-12) Max current: =37A | Type | Number of ANSI bolt | Diameter of bolt mouth d2 | B(mm) | L(mm) | F(mm) | H(mm) | D(mm) | Color | | SV3.5-4 | #8 | 4.3mm | 8.0 | 24.5 | 7.7 | 12.5 | 6.2 | Black | | SV3.5-5 | #10 | 5.3mm | 8.0 | 24.6 | 7.7 | | SVL3.5-5 | #10 | 5.3mm | 12.0 | 27.9 | 7.7 | | SV3.5-6 | 1/4 | 6.5mm | 12.0 | 27.9 | 7.7 |
Lead section: 4-6mm2(12-10) Max current: =48A | Type | Number of ANSI bolt | Diameter of bolt mouth d2 | B(mm) | L(mm) | F(mm) | H(mm) | D(mm) | Color | | SV5.5-3.5 | #6 | 3.7mm | 7.2
| 21.4
| 5.9
| 12.5 | 6.7 | Yellow | | SV5.5-4 | #8 | 4.3mm | 7.2
| 21.5
| 5.9
| | SV5.5-4 | #8 | 4.3mm | 9.5
| 25.5
| 8.3
| | SV5.5-5 | #10 | 5.3mm | 9.5
| 25.5
| 8.3 | | SV5.5-6 | 1/4 | 6.5mm | 12.0
| 31.5
| 13.0 | | SV5.5-8 | 5/16 | 8.4mm | 15.0
| 33.7
| 13.0 | | SV5.5-10 | 3/8 | 10.5mm | 15.0 | 33.7 | 13.7 | | SV5.5-12 | 1/2 | 13.0mm | 19.2 | 38.1 | 16.0 |
|
| | |
| | | |
|
| 产品外形同国内外厂商同样大小，产品厚度按标准厚度制作，镀层采用亚光锡，绝缘护套采用进口材料套管，产品供货及时 品种齐全 价格优惠 品质保证 如您有特殊型号需要,量大并提供图纸可以为您定做产品.价格合理.欢迎新老客户来电洽谈! |
