自动送料激光切割工艺技术参数
非金属材料切割厚度 | ≤3mm |
非金属材料雕刻速度 | ≤800mm／s |
非金属材料切割工艺 | 直线切割工艺 |
一：国产品牌CO2激光器（功率稳定性高）
二：采用新加波进口激光镜片（光斑细、切口好、功率大、无焦痕）
三：进口韩国直线导轨
四：美国雷塞步进电机
五：合力原厂激光机机壳
六：合力原厂制冷系统合力冷水机
七：原装进口传动皮带；
八：离心式风机一台；随机赠送压缩磁泵一台
三包：
1：机器包培训
2：机器包运费
3：机器包用一年
五免：
1：免费提供公司画册
2：免费提供技术方案
3：免费提供切割样品材料
4：免费提供生产工艺制品的解决方案
5：免费提供试样机器寄材或来我司带材试样
欢迎各公司采购部来我司参观了解试样！
如果想再加详细的了解，请联系我！
真诚期待与贵司合作共赢！
诚祝贵司生意兴隆
售前服务：王先生 电话：13925596503 QQ:1253044061

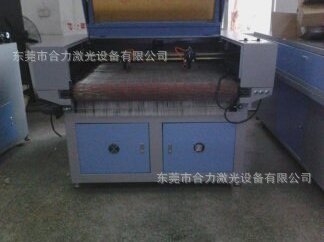

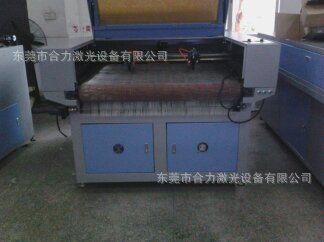

自动送料激光切割机 HL-M系列
HL –M系列自动送料切割机 HL –Mseries automatic feed cutting machine
HL-1080M
HL-1280M
HL-1390M
HL-1480M
HL-1410M
HL-1680M
HL-1610M
HL-1810M
机型简介Means of indicators
合力激光为了迎合市场需要，满足客户要求。研发部门通过一年来的产品开发创新，最新开发出激光大面积大功率自动送料切割机。合力激光HL-M激光大面积大功率自动送料切割机是一款专门为大面积大功率自动送料的产品切割雕刻设计的机型，该机配置步进电机和直线导轨，采用飞行光路模式，较大的满足了客户的需求，采用光斑模式好。稳定的高性能激光器。加冷却装置的反射系统，保证激光的反射率永不下降，光斑不变形。由于近年来包装印刷，电子，不干胶，吸塑等行业对模切板的精度等各方面要求越来越来越高，激光刀模行业在这几年得到了迅猛的发展。合力激光推出的激光大面积大功率自动送料切割机，采用国产激光发生器，结合高精密的数控机械系统。在达到刀模制作所需要的精度的同时大大降低了激光刀模的制作成本。并且采用分层切板技术拼合成的模切板，避免了大功率激光机因光路偏差而造成的尺寸不准问题。而且投资风险极小，回报快，业务饱满情况下三个月便可收加投资，该项机适用于大幅面的服装、毛绒、皮革等大面积自动送料的切割，及刀模、建筑模型、家具等大功率切割雕刻。
Laser efforts to meet the needs of the market, customer satisfaction. research and development departments through the year of product development innovation, the latest development of the large muscle automatically send material machine. the resultant force laser HL - M laser a large to send for an automatic machine is a special area for the large muscle of products automatically sent to the cutting in the design of the model, the configuration steps in the motor and straight guide, flying the light pattern, a large number of satisfied customers needs in the good model。Stable high-performance laser. add cooling of the system, ensure that the reflective never falling, the light does not deform. the package in recent years, electronic, not a sticker, a plastic industries to die cutting plate the accuracy of all aspects of the demand for higher and higher laser die industry in recent years has been rapid development. the resultant force for the launch of the laser light automatically send out a large machine, using laser generators domestic with high precision Numerical Control mechanical systems. While achieved precision which the knife mold manufacture needed to reduce greatly has stirred up the laser scalpel mold's manufacture cost. And uses the lamination to cut the die cutting board which the board technology joins together, avoided the high efficiency stirring up the X-ray machine the size which created because of the path of rays deviation not to permit the question. Moreover the investment risk is minimum, repays quickly, the service full situation next three months then may receive add the investment, this aircraft are suitable for the great width clothing, the plush, the leather and so on big area feed control cutting, and high efficiency cutting and so on knife mold, building model, furniture.
具体特点Specific features
1、可对实际纸张进行盒型打样，也可对电子薄膜、不干胶等多数需要刀模冲切的的材料直接切割打样设计。还可以在纸张上直接打印单图或大幅面排版，代替一台几万块钱绘图仪的作用。
2、采用飞行光路结构，CO2激光发生器由国内性能最好的厂商提供，稳定性高激光反射聚焦镜片采用新加坡原装进口镜片，大大降低激光功率在传输过程中的衰减。
3、采用恒温工业冷却水循环系统，延长激光管寿命的同时也更加确保了激光功率的稳定，保证激光刀模的切缝均匀。
4、合力激光刀模切割系统界面友好，采用国际通用的CAD系统，精度高，兼容性好，易于操作。
5、运行速度、激光能量实时可调，极大地方便客户操作。
6、采用分色切割、雕刻，可在同一文件下设置多个加工参数，提高加工工艺
7、采用两种在线升级模式的最大化的控制技术，保证了最新控制技术的同步，保障了用户投资收益。
8、采用LAN接口，双向通讯，提高传送速度和准确性；可实现一台电脑控制多达254台激光设备，大大降低了用户的投资成本。
9、切割能量自动补偿功能，切割效果得到极大改善
10、内置128M内存，可同时存储99个文件支持断电数据保存的永久文件存储区
11设备可单独对多种材料的表面进行雕刻，也可单独对多种材料进行切割，亦可雕刻和切割同时进行，实现了雕刻与切割两种功能的完美统一，设备运行速度快，操作简单、成本低；雕刻效果好，切割边缘无毛刺，无需二次打磨，切割废料少，雕刻深度可自主调节，精度高
12、采用高性能的激光雕刻切割控制平台-CA控制系统
13、运行速度，激光能量实时可调，极大地方便了客户的操作
1、To the actual type of paper to make them, and also for electronic film, not a sticker for the most need a knife cut very flush of the material is cut directly in the design. you can also in paper form or direct printing of the large format resembles to replace a part of the tens of thousands of dollars graphic plotter.
2、Using four flight –path structure, CO2 laser generator best performance by the domestic manufacturers to offer high stability .Confocal laser lens reflexSingapore imported fully using lenses and greatly reduce transmission of laser power in the process of attenuation
3、Thermostat using cooling water circulation system of industrial extension of the laser tube life but also to ensure a more laser power stability ,and ensure that the laser Cutting Die knife uniform
4、Helilaser Cutting Die laser cutting system friendly interface and the application of international common CAD systems, high precision, good compatibility , ease of use.
5、Real-time power and speed adjust ,convenient for customer to operating
6、Use multicolor for cutting and engraving ,setting different parameters in the same file ,improve the processing technology
7、Two ways for upgrade model ,ensure the latest control technology synchronization, protect user investment income
8、Using LAN interface ,two -way communications ,improved transmission speed and accuracy ;One computer can controlled up to 254 laser equipment greatly reduces customer investment and maintenance costs
9、Cutting energy automatic compensation function ,cutting greatly improved results
10、Built-in 128MB of memory ,can also store 99 documents to support power -fail data retention of permanent document storage area
11、Equipment can engraving and cutting on the surface in variety of material ,engraving and cutting can be at the one time to achieve the two functions perfect unity .Running fast ,simple operation and low cost ;engraving good effect ,cutting edge without burr ,no secondary polishing ,cutting on waste less ,engraving depth can be self regulation ,high accuracy
12、Use the laser industry's most advanced control system --CA-control system
13、Operational speed ,laser energy real-time tunable ,and very easy for customers to operate
详细配置Detailed configuration
A.德国原装进口步进电机及驱动系统
a.Germany imported fully stepper motor and drive systems
B HELILASER控制系统
B .HELILASER control system
C.采用国外进口直线导轨
c. Foreign imports in linear guide way
D.双传输方式：工业串口、USP串口
d. Dual transmission of USB 2.0
E.中英文液晶显示，人性化按键控制板
e. Chinese/English LCD, Humanity button panels
F.国产激光器（70/80）选配
f. Homemade laser(70/80)matching
G.光路系统采用新加坡全进口激光镜片
g. Optical system uses laserSingapore imports all lenses
H.高强度不锈铁蜂窝底板
h. High strength stainless Rail cellular integration backplane
I.机箱一体化结构
i . Chassing integration structure
J.支持U盘下载数据
j. Support U-download data
技术参数technical-parameters
产品型号/Machine model HL-1280M HL-1390M（可根据客户定制）
激光类型/Laser type 国产CO2激光器/hermetic and detached co2 laser tube
激光功率/Laser power 80w
雕刻面积/Engraving area 600*400/900*600/1000*800/1200*800mm
雕刻速度/Engraving speed 0-1500mm/s
切割速度/Cutting speed 0-800mm/s
重复精度/Repeating locating ±0.05mm
运动系统/Moving system CNC控制系统CNC controlling units
冷却方式/Cooling mode 强制水冷及保护系统/water-cooling and protection system
工作电压/Working voltage 220±10% 50HZ
整机功率/Whole power 1250w
工作温度/Operating temperature 0℃-45℃
工作湿度/ Operating humidity 5%-95%
控制软件/Controlling software 正版合力激光软件/original Helilaser software
支持格式/Graphic format supported BMP PLT AI DXF DST
外形尺寸/Size 1600*1200/1700*1300mm
整机重量/Gross weight 230kg/1100 kg
适用材料Applicable Materials
本品适用于木制品、纸张、皮革、布料、有机玻璃、环氧树脂、亚克力、毛料、塑料、橡胶、瓷砖、水晶、玉石、竹制品等非金属材料。
Wood . paper . leather . cloth . organic glass . resin . acrylic . Wool fabric . plastic . rubber . ceramic tile .Crystal . bowlder bamboo and other non-metal material.
适用行业Applicable Industry
本类机型机器适用于服装绣花、皮革制品、竹木制品、电子电器、模型、帐篷、雨伞、窗帘、玩具、地毯等。This kind of machine is suitable for clothing embroidery, leather products, wood products, electronic appliances, model, tents, umbrellas, curtain, toys, carpet, etc.
