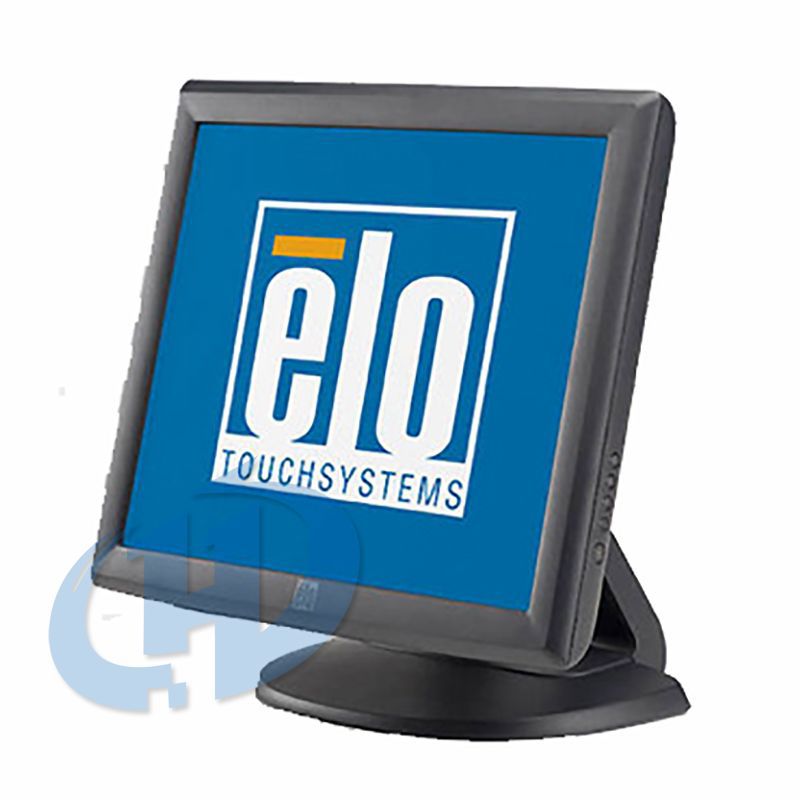

The 1215L touchmonitors are designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. Aimed at the fast-changing retail POS and hospitality markets, they provide reliable, durable operation and come from the worldwide leader in touchmonitors, Elo TouchSystems. The space-saving 1215L features a choice of touch technologies and spill resistant sealing. Features- Small footprint of a 12" LCD
- Economical and reliable
- Up to 800 x 600 resolution at 75 Hz
- Available with AccuTouch Five-Wire Resistive Technology, the most widely used for retail applications (activated with fingernails, gloves, credit cards, or any stylus), IntelliTouch Surface Wave Technology for superior image quality (activated with finger or glove), or Surface Capacitive Technology for compatibility with some existing systems
- Touchscreen sealed against spills
- Dual serial/USB interface

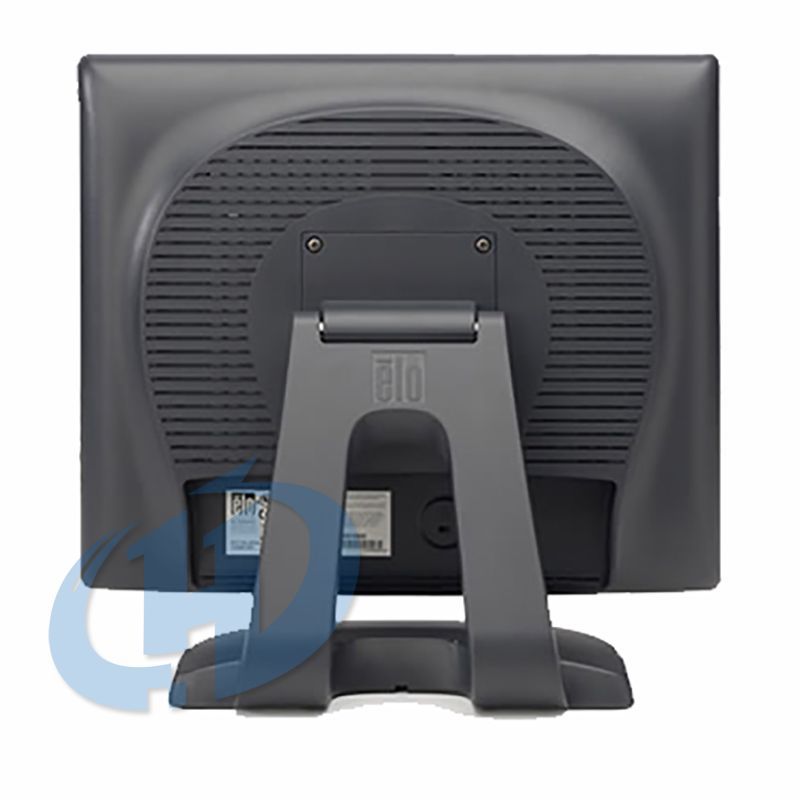

- Removable stand and VESA mounting option
- Mounting holes on stand bottom for tabletop security
- Controls on the side rather than the front, plus lockout function for public use
- Digital on-screen display (OSD)
- Internal power supply
- Worldwide agency approvals
|
Model Display Aspect Ratio Useful Screen Area Native (Optimal) Resolution Other Supported Resolutions Viewing Angle (Typical) Colors Brightness(Typical) Response Time (Typical) Contrast Ratio (Typical) On-Screen Display (OSD) | 1215L | | 12.1" diagonal, Active matrix TFT LCD | | 4:3 | Horizontal: 9.7" (246 mm) Vertical: 7.3" (185 mm) | | 800 x 600 at 60 Hz | 800 x 600 at 56, 60, 72 or 75 Hz 640 x 480 at 60, 66 Hz, 72 or 75 Hz | Horizontal: ±70° or 140° total Vertical: ±50° or 100° total | | 262,000 | LCD panel: 200 nits AccuTouch: 164 nits IntelliTouch: 184 nits Surface capacitive: 170 nits | | 35 msec | | 500:1 | Controls (side): menu, up, down, select, power Settings: contrast, brightness, H/V position, recall default, RGB (color temp), OSD exit, clock, phase, sharpness, OSD H/V position, OSD time, auto adjust, input select Languages: English, German, Spanish, Japanese, French Lockouts: power, user controls |
Input Video Format Input Video Signal Connector | Analog VGA | | Mini D-Sub 15-Pin VGA type |
Power Supply Input Voltage Input Connector Input Frequency Power Consumption (Typical) | Internal AC, Optional external DC (power brick) | AC: 85-265 VAC, 47–63 Hz DC: 12.0 V ± 0.75V | AC: IEC 60320 C6 DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length) | Horizontal: 31.5-48 kHz Vertical: 56.3-75 Hz | | 16W |
Monitor Dimensions (with Stand) (W x D x H) Shipping Box Dimensions (W x D x H) | 11.9" (301 mm) x 6.6" (168 mm) x 11.3" (286 mm) | | 14.77" (375 mm) x 10.24" (260 mm) x 14.38" (365 mm) |
Weight Actual: 8.2lb (3.7 kg) Shipping: 13.6 lb (6.2 kg) |
Temperature Humidity (non-condensing) Operating: 0°C to 40°C (32°F to 104°F) Storage: -20°C to 60°C (-4°F to 140°F) | Operating: 20%-80% Storage: 10%-90% |
Form Factor Enclosure Color Sealing MTBF Stand Options Mounting Options Other Features | Desktop | | Dark grey | Touchscreen sealed to bezel Touchscreen sealed to LCD | | 50,000 hours demonstrated | | Remove | 75 mm VESA mount Threaded-through mounting holes, under stand | | Security lock receptacle |
|
