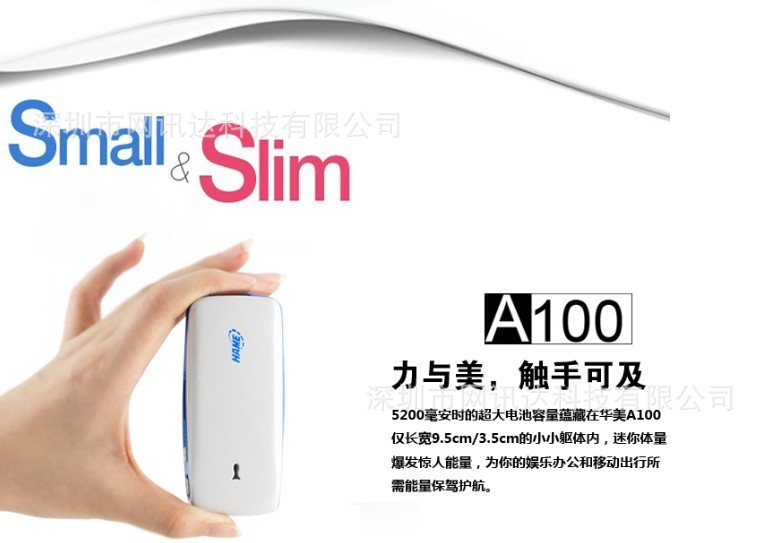

• 超便携式、高速3G/4G无线路由器
• 内置5200mAh锂电池，随时随地续航10-12小时,高容量移动电源
• 支持所有符合Dlna协议的软件和硬件设备，无缝链接，播放及共享
• 自动识别ADSL/DHCP等有线接入方式
• 兼容HSUPA/HSDPA/CDMA EVDO USB无线上网卡
• 支持IEEE802.11b/g/n，速率高达150Mbps
• NAT&NAPT通过虚拟服务器的VPN传输
• DHCP服务器自动分配IP地址
• 支持多用户的高速传输
• 可设置安全WEP、WPA加密方式和建立防火墙
• 简约界面，便于安装、便于管理
  • 标准WIFI协议：IEEE802.11b/g/n
  • 频段：2.4G-2.4835GHz
  • 端口：MINI型LAN/WAN口

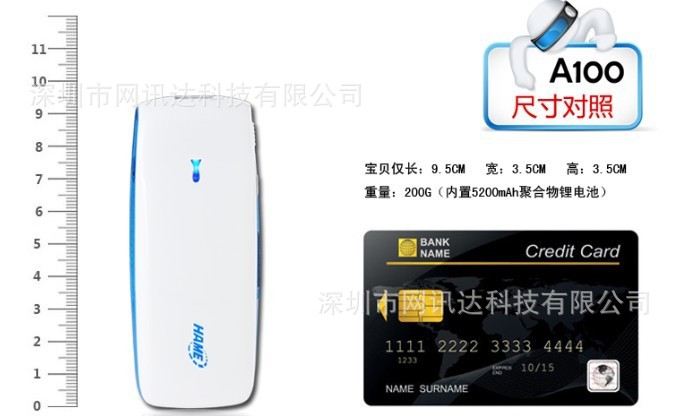

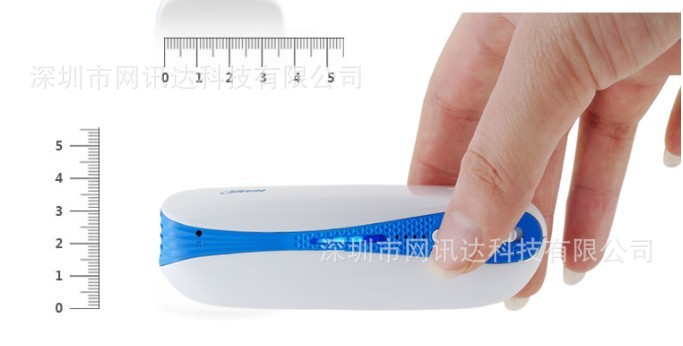

  • 外形尺寸：95*35*35 MM
  • 使用环境：工作温度：0。C到40。C

l存储温度：-40。C到70。C

l工作湿度：10%到90%RH不凝结

l存储湿度：5%到90%RH不凝结

• 电源功耗：输入：5V～1.2A 50Hz；功率：最大3.5W
• MIFI A8路由器x1
• 1800mAh锂电池
• 快速安装指南x1

MainFeatures:

nSuper Portable, Suitable for mobile and stationary use as:

a fallback for the fixed line network

for mobile broadband access wherever you need it

power bank with 5200mAh Battery

compatible with Dlan video Player ,wireless storage and share with Video/Audio/Picture/Music.

nCompatible with HSUPA/HSDPA/CDMA EVDO USB Modem

nSupports WIFI speed rate up to 150Mbps

nSupports ADSL, static IP, dynamic IP（Option）

nShares a single IP address with up to 32 users

nNAT & NAPT with VPN pass-through Virtual Server

nAutomatic receipt of IP address with DHCP Server

nSupports the high-speed gateway

nSupports multi-users

nSimple handling and management over web interface

nSecurity through WEP, WPA and built-in firewall

nNo SW installation necessary

Technical Specifications

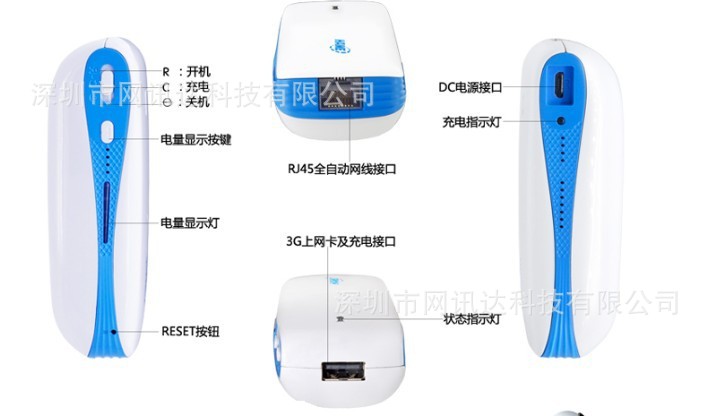

LED Indicator x 5(Power,Battery,WIFI,Signal,Network Mode)

Compliance to 802.11b/g/n standard with 100mV transmission power

Wireless Access Point &Gateway

MAC Clone

WEP 64-bit/128-bit Encryption WPA-PSK/WPS2-PSK/802.1x

Radius Server

WIFI Internal Antenna

Ports：

-USB2.0 Modem Interface

-DC Power Input 5V 1.5A (12V CAR USE)

-10/100 Ethernet x 1

Operating System Support：

Windows®2000, XP, Vista, Linux 2.4 /2.6

Environment Requirements:

Operating Temperature:0℃to +70℃

Storage Temperature:-65℃to +125℃

Humidity: 5%～95% (non-condensing)

Power Consumption:

•Power Supply: 5~5.5V

Standard Package Contents:

Gateway

Mini-5pin Switching Power Adapter

5V DC Car Charger (optional)

RJ45 Ethernet Cable

Quick Start Guide

Dimension

Dimension:95*35*35mm

Weight : 160 g
