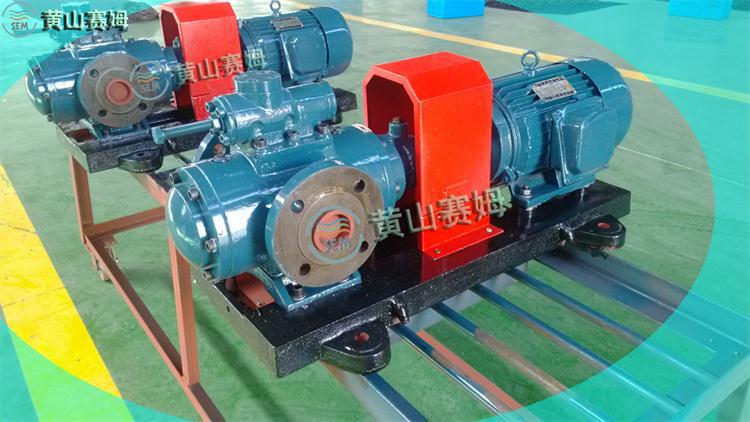

我公司提供【现货】精轧机轴承稀油润滑系统泵站HSNH440-54三螺杆泵；该规格产品常规参数是 压力：1.0Mpa（0.5~4.0）；转速：1450r/min；粘度：75mm2/s；流量：14.52m3/h；轴功率：5.54kw；该规格产品型号还有：HSNH440-40、HSNH440-42、HSNH440-46、HSNH440-51;详情可咨询我公司0559-2588071;13855946855(涂经理)
一、适用范围
主要用于输送中低黏度的润滑性液体,在工业生产中常作为液压泵、润滑泵、轻燃油泵、输送泵。
二、性能参数（在转速1450r/min，运动黏度n：75㎜2/s）
流量Q：26 -3000 l/min最高工作压力：4.0MPa。
三、安装形式
部件组合系列化,有底板式（HSNH）、支架式（HSNF）、柱脚式（HSNS）多种结构。可用于卧式、法兰式和立式安装，泵进出口方向可左右更换。
具有自吸能力，可根据用户特殊要求进行专门设计、生产。
四、选型提醒
- 选择产品时，需要注意泵进口流速（包括进口管线流速）。一般进口流速控制在1m/s以内，1~1.3m/s需要有条件选择，大于1.3m/s需要谨慎选择或者不选。
- 由于电机转速越高，泵进口的流速也大，可靠性会降低，应综合考虑泵的可靠性使用，电机的选择请根据泵的选型步骤中的推荐选取。
- 若传输介质的润滑性较好，且温度<=80℃，推荐使用内置轴承结构的泵，若传输介质的润滑性较差或温度>=80℃，推荐使用外置轴承结构的泵。
- 为了更好的避免杂质进入泵体内，建议在泵的进口钱配置过滤器，过滤精度为40目（过滤面积为过流通经的15-20倍）
- 如果使用流量要求精确且不在性能参数表里面内，您可以选用变频电机来实现，或者来电咨询，我公司可根据您的要求量身定制
五、规格型号
HSNH三螺杆泵常用型号：
HSNH三螺杆泵常用标准系列
HSNH40-38 HSNH40-46 HSNH40-54 HSNH80-36 HSNH80-42
HSNH80-46 HSNH80-54 HSNH120-42 HSNH120-46 HSNH120-54
HSNH210-36 HSNH210-40 HSNH210-46 HSNH210-54 HSNH280-43
HSNH280-46 HSNH280-54 HSNH440-36 HSNH440-40 HSNH440-46
HSNH440-52 HSNH440-54 HSNH660-40 HSNH660-44 HSNH660-46
HSNH660-52 HSNH660-54 HSNH940-40 HSNH940-42 HSNH940-46
HSNH940-49 HSNH940-50 HSNH940-54 HSNH1300-36 HSNH1300-38
HSNH1300-40 HSNH1300-42 HSNH1300-46 HSNH1300-54 HSNH1700-40
HSNH1700-42 HSNH1700-46 HSNH2200-40 HSNH2200-42 HSNH2200-46
HSNH2900-40 HSNH2900-46 HSNH3600-46 HSNH5300-36 HSNH5300-42
HSNH5300-46 HSNH7400-32 HSNH7400-40 HSNH9400-32 HSNH9400-40
HSNH三螺杆泵轴承内置安装系列
HSNH40-38N HSNH40-46N HSNH40-54N HSNH80-36N HSNH80-42N
HSNH80-46N HSNH80-54N HSNH120-42N HSNH120-46N HSNH120-54N
HSNH210-36N HSNH210-40N HSNH210-46N HSNH210-54N HSNH280-43N
HSNH280-46N HSNH280-54N HSNH440-36N HSNH440-40N HSNH440-46N
HSNH440-52N HSNH440-54N HSNH660-40N HSNH660-44N HSNH660-46N
HSNH660-52N HSNH660-54N HSNH940-40N HSNH940-42N HSNH940-46N
HSNH940-49N HSNH940-50N HSNH940-54N HSNH1300-36N HSNH1300-38N
HSNH1300-40N HSNH1300-42N HSNH1300-46N HSNH1300-54N HSNH1700-40N
HSNH1700-42N HSNH1700-46N HSNH2200-40N HSNH2200-42N HSNH2200-46N
HSNH2900-40N HSNH2900-46N HSNH3600-46N HSNH5300-36N HSNH5300-42N
HSNH5300-46N HSNH7400-32N HSNH7400-40N HSNH9400-32N HSNH9400-40N
HSNH三螺杆泵轴承内置进出口反向安装
HSNH40-38NZ HSNH40-46NZ HSNH40-54NZ HSNH80-36NZ HSNH80-42NZ
HSNH80-46NZ HSNH80-54NZ HSNH120-42NZ HSNH120-46NZ HSNH120-54NZ
HSNH210-36NZ HSNH210-40NZ HSNH210-46NZ HSNH210-54NZ HSNH280-43NZ
HSNH280-46NZ HSNH280-54NZ HSNH440-36NZ HSNH440-40NZ HSNH440-46NZ
HSNH440-52NZ HSNH440-54NZ HSNH660-40NZ HSNH660-44NZ HSNH660-46NZ
HSNH660-52NZ HSNH660-54NZ HSNH940-40NZ HSNH940-42NZ HSNH940-46NZ
HSNH940-49NZ HSNH940-50NZ HSNH940-54NZ HSNH1300-36NZ HSNH1300-38NZ
HSNH1300-40NZ HSNH1300-42NZ HSNH1300-46NZ HSNH1300-54NZ HSNH1700-40NZ
HSNH1700-42NZ HSNH1700-46NZ HSNH2200-40NZ HSNH2200-42NZ HSNH2200-46NZ
HSNH2900-40NZ HSNH2900-46NZ HSNH3600-46NZ HSNH5300-36NZ HSNH5300-42NZ
HSNH5300-46NZ HSNH7400-32NZ HSNH7400-40NZ HSNH9400-32NZ HSNH9400-40NZ
HSNH三螺杆泵轴承外置系列三螺杆泵
HSNH40-38W1 HSNH40-46W1 HSNH40-54W1 HSNH80-36W1 HSNH80-42W1
HSNH80-46W1 HSNH80-54W1 HSNH120-42W1 HSNH120-46W1 HSNH120-54W1
HSNH210-36W1 HSNH210-40W1 HSNH210-46W1 HSNH210-54W1 HSNH280-43W1
HSNH280-46W1 HSNH280-54W1 HSNH440-36W1 HSNH440-40W1 HSNH440-46W1
HSNH440-52W1 HSNH440-54W1 HSNH660-40W1 HSNH660-44W1 HSNH660-46W1
HSNH660-52W1 HSNH660-54W1 HSNH940-40W1 HSNH940-42W1 HSNH940-46W1
HSNH940-49W1 HSNH940-50W1 HSNH940-54W1 HSNH1300-36W1 HSNH1300-38W1
HSNH1300-40W1 HSNH1300-42W1 HSNH1300-46W1 HSNH1300-54W1 HSNH1700-40W1
HSNH1700-42W1 HSNH1700-46W1 HSNH2200-40W1 HSNH2200-42W1 HSNH2200-46W1
HSNH2900-40W1 HSNH2900-46W1 HSNH3600-46W1 HSNH5300-36W1 HSNH5300-42W1
HSNH5300-46W1 HSNH7400-32W1 HSNH7400-40W1 HSNH9400-32W1 HSNH9400-40W1
HSNH三螺杆泵轴承外置进出口反向
HSNH40-38W1Z HSNH40-46W1Z HSNH40-54W1Z HSNH80-36W1Z HSNH80-42W1Z
HSNH80-46W1Z HSNH80-54W1Z HSNH120-42W1Z HSNH120-46W1Z HSNH120-54W1Z
HSNH210-36W1Z HSNH210-40W1Z HSNH210-46W1Z HSNH210-54W1Z HSNH280-43W1Z
HSNH280-46W1Z HSNH280-54W1Z HSNH440-36W1Z HSNH440-40W1Z HSNH440-46W1Z
HSNH440-52W1Z HSNH440-54W1Z HSNH660-40W1Z HSNH660-44W1Z HSNH660-46W1Z
HSNH660-52W1Z HSNH660-54W1Z HSNH940-40W1Z HSNH940-42W1Z HSNH940-46W1Z
HSNH940-49W1Z HSNH940-50W1Z HSNH940-54W1Z HSNH1300-36W1Z HSNH1300-38W1Z
HSNH1300-40W1Z HSNH1300-42W1Z HSNH1300-46W1Z HSNH1300-54W1Z HSNH1700-40W1Z
HSNH1700-42W1Z HSNH1700-46W1Z HSNH2200-40W1Z HSNH2200-42W1Z HSNH2200-46W1Z
HSNH2900-40W1Z HSNH2900-46W1Z HSNH3600-46W1Z HSNH5300-36W1Z HSNH5300-42W1Z
HSNH5300-46W1Z HSNH7400-32W1Z HSNH7400-40W1Z HSNH9400-32W1Z HSNH9400-40W1Z
HSNH三螺杆泵新系列
HSNH40R38 HSNH40R46 HSNH40R54 HSNH80R36 HSNH80R42
HSNH80R46 HSNH80R54 HSNH120R42 HSNH120R46 HSNH120R54
HSNH210R36 HSNH210R40 HSNH210R46 HSNH210R54 HSNH280R43
HSNH280R46 HSNH280R54 HSNH440R36 HSNH440R40 HSNH440R46
HSNH440R52 HSNH440R54 HSNH660R40 HSNH660R44 HSNH660R46
HSNH660R52 HSNH660R54 HSNH940R40 HSNH940R42 HSNH940R46
HSNH940R49 HSNH940R50 HSNH940R54 HSNH1300R36 HSNH1300R38
HSNH1300R40 HSNH1300R42 HSNH1300R46 HSNH1300R54 HSNH1700R40
HSNH1700R42 HSNH1700R46 HSNH2200R40 HSNH2200R42 HSNH2200R46
HSNH2900R40 HSNH2900R46 HSNH3600R46 HSNH5300R36 HSNH5300R42
HSNH5300R46 HSNH7400R32 HSNH7400R40 HSNH9400R32 HSNH9400R40
HSNH三螺杆泵轴承内置安装系列
HSNH40R38N HSNH40R46N HSNH40R54N HSNH80R36N HSNH80R42N
HSNH80R46N HSNH80R54N HSNH120R42N HSNH120R46N HSNH120R54N
HSNH210R36N HSNH210R40N HSNH210R46N HSNH210R54N HSNH280R43N
HSNH280R46N HSNH280R54N HSNH440R36N HSNH440R40N HSNH440R46N
HSNH440R52N HSNH440R54N HSNH660R40N HSNH660R44N HSNH660R46N
HSNH660R52N HSNH660R54N HSNH940R40N HSNH940R42N HSNH940R46N
HSNH940R49N HSNH940R50N HSNH940R54N HSNH1300R36N HSNH1300R38N
HSNH1300R40N HSNH1300R42N HSNH1300R46N HSNH1300R54N HSNH1700R40N
HSNH1700R42N HSNH1700R46N HSNH2200R40N HSNH2200R42N HSNH2200R46N
HSNH2900R40N HSNH2900R46N HSNH3600R46N HSNH5300R36N HSNH5300R42N
HSNH5300R46N HSNH7400R32N HSNH7400R40N HSNH9400R32N HSNH9400R40N
HSNH三螺杆泵轴承内置进出口反向安装
HSNH40R38NZ HSNH40R46NZ HSNH40R54NZ HSNH80R36NZ HSNH80R42NZ
HSNH80R46NZ HSNH80R54NZ HSNH120R42NZ HSNH120R46NZ HSNH120R54NZ
HSNH210R36NZ HSNH210R40NZ HSNH210R46NZ HSNH210R54NZ HSNH280R43NZ
HSNH280R46NZ HSNH280R54NZ HSNH440R36NZ HSNH440R40NZ HSNH440R46NZ
HSNH440R52NZ HSNH440R54NZ HSNH660R40NZ HSNH660R44NZ HSNH660R46NZ
HSNH660R52NZ HSNH660R54NZ HSNH940R40NZ HSNH940R42NZ HSNH940R46NZ
HSNH940R49NZ HSNH940R50NZ HSNH940R54NZ HSNH1300R36NZ HSNH1300R38NZ
HSNH1300R40NZ HSNH1300R42NZ HSNH1300R46NZ HSNH1300R54NZ HSNH1700R40NZ
HSNH1700R42NZ HSNH1700R46NZ HSNH2200R40NZ HSNH2200R42NZ HSNH2200R46NZ
HSNH2900R40NZ HSNH2900R46NZ HSNH3600R46NZ HSNH5300R36NZ HSNH5300R42NZ
HSNH5300R46NZ HSNH7400R32NZ HSNH7400R40NZ HSNH9400R32NZ HSNH9400R40NZ
HSNH三螺杆泵轴承外置系列三螺杆泵
HSNH40R38W1 HSNH40R46W1 HSNH40R54W1 HSNH80R36W1 HSNH80R42W1
HSNH80R46W1 HSNH80R54W1 HSNH120R42W1 HSNH120R46W1 HSNH120R54W1
HSNH210R36W1 HSNH210R40W1 HSNH210R46W1 HSNH210R54W1 HSNH280R43W1
HSNH280R46W1 HSNH280R54W1 HSNH440R36W1 HSNH440R40W1 HSNH440R46W1
HSNH440R52W1 HSNH440R54W1 HSNH660R40W1 HSNH660R44W1 HSNH660R46W1
HSNH660R52W1 HSNH660R54W1 HSNH940R40W1 HSNH940R42W1 HSNH940R46W1
HSNH940R49W1 HSNH940R50W1 HSNH940R54W1 HSNH1300R36W1 HSNH1300R38W1
HSNH1300R40W1 HSNH1300R42W1 HSNH1300R46W1 HSNH1300R54W1 HSNH1700R40W1
HSNH1700R42W1 HSNH1700R46W1 HSNH2200R40W1 HSNH2200R42W1 HSNH2200R46W1
HSNH2900R40W1 HSNH2900R46W1 HSNH3600R46W1 HSNH5300R36W1 HSNH5300R42W1
HSNH5300R46W1 HSNH7400R32W1 HSNH7400R40W1 HSNH9400R32W1 HSNH9400R40W1
HSNH三螺杆泵轴承外置进出口反向
HSNH40R38W1Z HSNH40R46W1Z HSNH40R54W1Z HSNH80R36W1Z HSNH80R42W1Z
HSNH80R46W1Z HSNH80R54W1Z HSNH120R42W1Z HSNH120R46W1Z HSNH120R54W1Z
HSNH210R36W1Z HSNH210R40W1Z HSNH210R46W1Z HSNH210R54W1Z HSNH280R43W1Z
HSNH280R46W1Z HSNH280R54W1Z HSNH440R36W1Z HSNH440R40W1Z HSNH440R46W1Z
HSNH440R52W1Z HSNH440R54W1Z HSNH660R40W1Z HSNH660R44W1Z HSNH660R46W1Z
HSNH660R52W1Z HSNH660R54W1Z HSNH940R40W1Z HSNH940R42W1Z HSNH940R46W1Z
HSNH940R49W1Z HSNH940R50W1Z HSNH940R54W1Z HSNH1300R36W1Z HSNH1300R38W1Z
HSNH1300R40W1Z HSNH1300R42W1Z HSNH1300R46W1Z HSNH1300R54W1Z HSNH1700R40W1Z
HSNH1700R42W1Z HSNH1700R46W1Z HSNH2200R40W1Z HSNH2200R42W1Z HSNH2200R46W1Z
HSNH2900R40W1Z HSNH2900R46W1Z HSNH3600R46W1Z HSNH5300R36W1Z HSNH5300R42W1Z
HSNH5300R46W1Z HSNH7400R32W1Z HSNH7400R40W1Z HSNH9400R32W1Z HSNH9400R40W1Z
