适用型号            ：RS17系列

APPLICABLE MODELS：RS17Series

一 构造  CONSTRUCTION

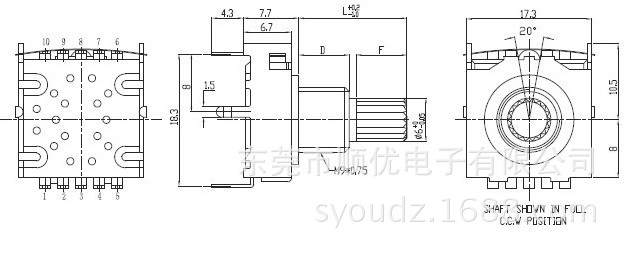

形状,寸法,依照图面规定

外    观        各部应良好无锈蚀、裂痕、电镀不良现象

APPEARANCE：EVRY PART SHOULD BE FINISHED NOT TO EXIST RUST

                         FLAW CRACK AND PLATING

二、主要性能参数(Typical specifications)

最大定格(抵抗负荷):

Rating(max.)(Resistive load)

0.3A 16V DC

接触抵抗(初期/寿命后):

Contact resistance(lnitial performance/after lifetime)

50mΩmax./150 mΩmax.

回转力矩:

Rotational torque

30±15mN.m

切换角度:

Changeover angle

45°±3°

定位数：

Number of positions

5

止档强度Check gear strength

9KG

储存温度Storage temperature

-30℃~+70℃

工作温度Work temperature

-20℃~+70℃

动作寿命

Operating life

无负荷

Without load

10,000 cycles

负荷

With load

10,000 cycles(0.3A 16V DC)
