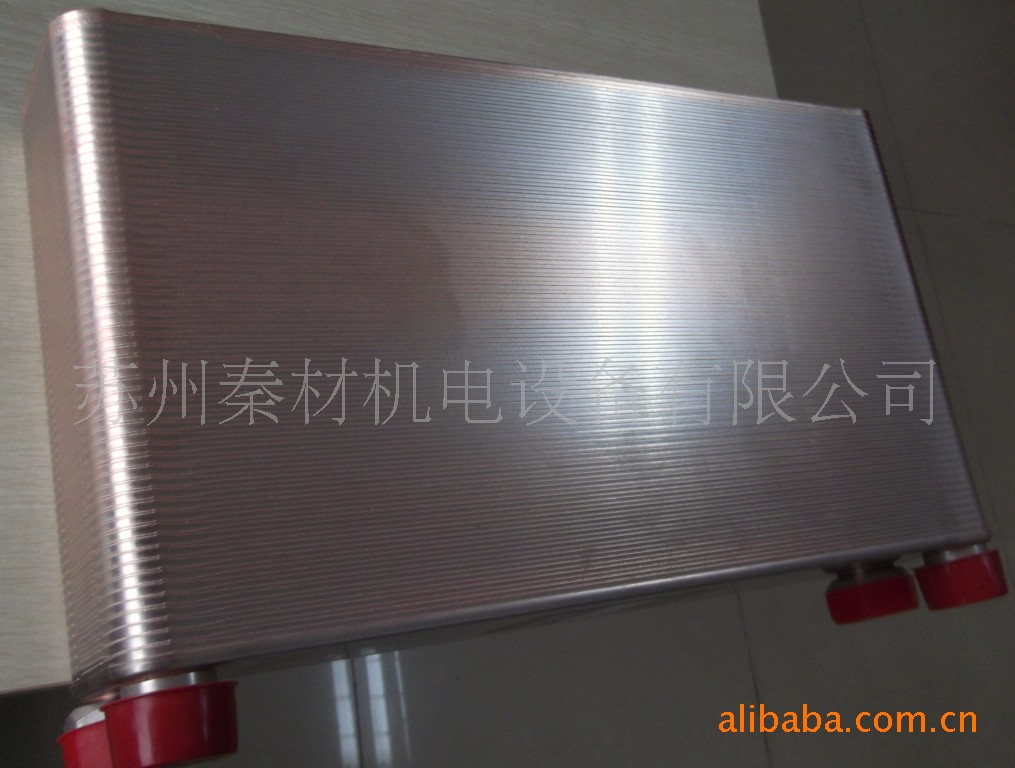

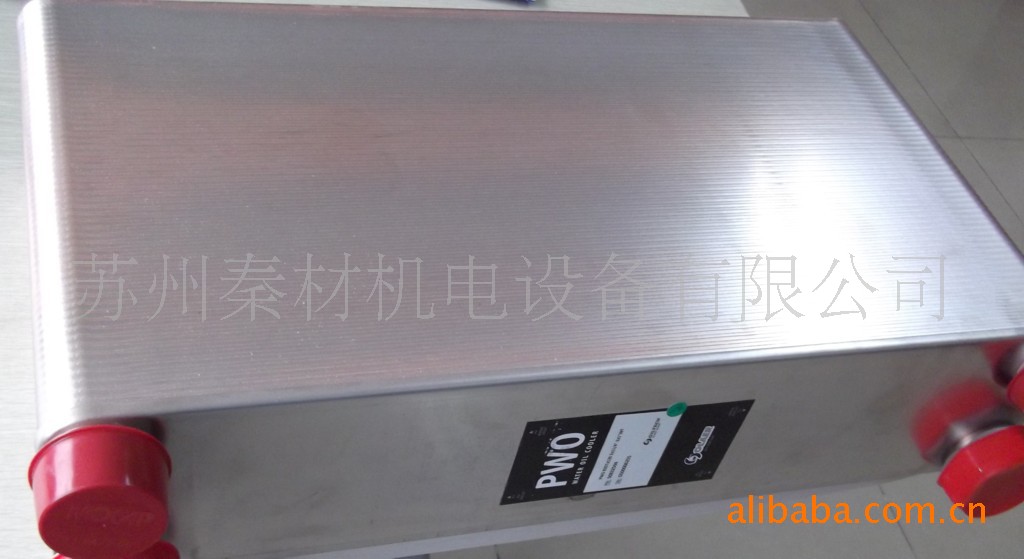

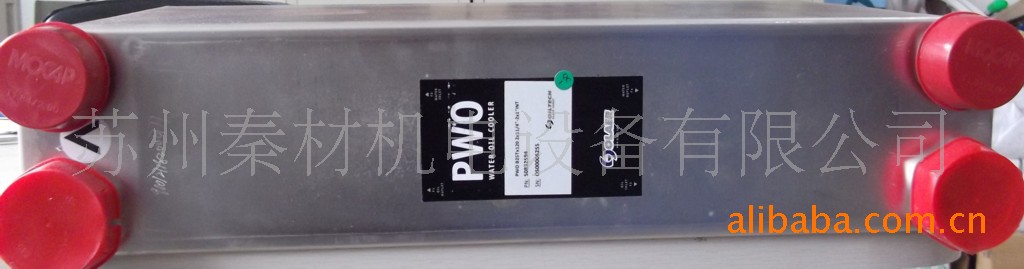

PWO进口冷却器B15TH*40/1P-SC-S

PWO STANDARD range of water oil coolers is available
in a wide number of sizes and is in general
available for immediate off-the-shelf delivery. The
basic material is AISI 316 stainless steel, vacuum
brazed with pure copper. PWO requires little refrigerant
volume resulting in lower cost and a more
environmentally-friendly installation.
Low installation cost allows for oversizing to
accommodate for future increase in requirements or
peak loads.10
B5 225 -196 31 50 1 + 0.04*
B8 225 -196 31 50 1 + 0.07*
B10T 225 -196 31 50 1 + 0.09*
B12 225 -196 31 50 2 + 0.12*
B15 225 -196 31 50 1 + 0.11*
B16 225 -196 28 45 2 + 0.11*
B25T 225 -196 31 50 2 + 0.17*
B28 225 -196 28 45 2 + 0.17*
B35 225 -196 31 50 7 + 0.34*
B120T 225 -196 31 50 10 + 0.43*
B56 225 -196 31 50 16 + 0.43*
Material:
Plates: EN 10028/7-1.4401 (AISI 316)
Brazing: Pure copper
Connections: EN 10272-1.4401 (AISI 316)

B5 187 72 154 40 20.1 2 x 3/4"- 2 x 1/2" 2.24 x * + 4 7 16
B8 310 72 278 40 20.1 2 x 3/4"- 2 x 1/2" 2.24 x * + 4 7 16
B10T 289 119 243 72 27.1 2 x 1"- 2 x 3/4" 2.24 x * + 4 6 22
B12 287 117 234 63 27.1 2 x 11/4"- 2 x 1" 2.24 x * + 4 6 22
B15 465 72 432 40 20.1 2 x 3/4"- 2 x 1/2" 2.24 x * + 4 7 16
B16 376 119 320 63 27.1 2 x 11/4"- 2 x 11/4" 2.24 x * + 4 6 23
B25T 526 119 479 72 27.1 2 x 11/4"- 2 x 1" 2.24 x * + 4 6 23
B28 526 119 470 63 27.1 2 x 11/4"- 2 x 11/4" 2.24 x * + 4 6 23
B35 393 243 324 174 27.1 2 x 11/2"- 2 x 11/4 2.34 x * + 8 3 35
B120T 525 243 456 174 27.1 2 x 11/2"- 2 x 11/4" 2.29 x * + 10 4 35
B56 525 243 430 148 54.2 ISO G 4 x 2 1/2" 2.44 x * + 14 3 48
