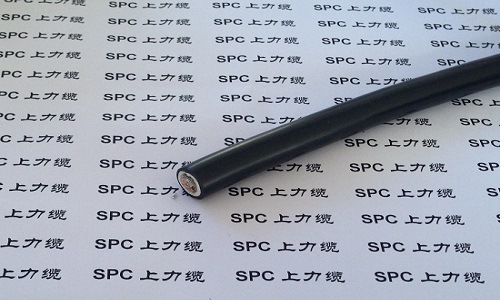

低压抽出式控制柜专用软电缆 抽出式控制柜电缆 ZR-JEFR阻燃型
'
型号 | 产品名称 | 用途 | 导体长期允许
工作温度 ℃ | 额定电压
V | 标称截面
mm2 |
JXN
JBQ
JEFR | 铜芯橡皮绝缘 ( 阻燃 ) 丁腈护套电机绕组引接线 | 适用于电机、电器绕组连接并引出机壳或绕组与电机壳体上的固定连接 | 70 | 500
1000 3000
6000 | 0.5 ~ 120
0.5 ~ 120
2.5 ~ 120
2.5 ~ 240 |
ZR-JXN
ZR-JEFR |
JXF
JBHF | 铜芯橡皮绝缘氯丁护套电机绕组引接线 | 500
1000 3000
6000 | 0.5 ~ 120
0.5 ~ 120
0.5 ~ 120
2.5 ~ 240 |
型号 | 截面
mm2 | 绝缘厚度
/ mm | 护套厚度
/ mm | 电缆最大外径
≤ /mm |
500
V | 1000
V | 3000
V | 6000
V | 500
V | 1000
V | 3000
V | 6000
V | 500
V | 1000
V | 3000
V | 6000
V |
JXN (JBQ) JEFR JXF (JBHF) | 0.12 | | | | | | | | | | | | |
0.2 | | | | | | | | | | | | |
0.3 | | | | | | | | | | | | |
0.4 | | | | | | | | | | | | |
0.5 | 0.6 | 1.0 | | | 0.8 | | | 4.3 | 5.1 | | |
0.75 | | | | | 4.5 | 5.4 | | |
1.0 | | | | | 4.7 | 5.5 | | |
1.5 | | | | | 5.0 | 5.9 | | |
2.5 | 0.8 | 1.2 | 2.3 | 3.5 | 1.0 | 1.4 | 1.8 | 6.2 | 7.1 | 10.3 | 13.5 |
4 | 6.8 | 7.7 | 11.0 | 14.2 |
6 | 7.5 | 8.4 | 12.0 | 15.2 |
10 | 1.0 | 1.4 | 2.5 | 1.2 | 10.0 | 10.9 | 14.0 | 16.8 |
16 | 11.2 | 12.0 | 15.2 | 18.0 |
25 | 1.4 | 1.6 | 2.0 | 13.7 | 14.6 | 17.8 | 20.6 |
35 | 14.9 | 15.7 | 18.9 | 21.7 |
50 | 1.2 | 1.6 | 1.6 | 1.8 | 17.1 | 17.9 | 20.9 | 23.3 |
70 | 2.0 | 2.5 | 19.6 | 20.5 | 24.0 | 27.0 |
95 | 1.4 | 1.8 | 2.8 | 21.9 | 22.8 | 26.5 | 28.9 |
120 | 1.6 | 1.8 | 2.1 | 24.6 | 25.0 | 28.6 | 30.8 |
150 | 1.8 | 2.0 | 3.0 | 27.0 | 27.4 | 30.0 | 31.5 |
185 | 2.0 | 2.2 | 29.0 | 29.4 | 31.8 | 33.5 |
240 | 30.6 | 31.0 | 33.4 | 36.5 |
'
