【上海供应BAT-1000W防爆投光灯巨祥防爆防爆双头应急灯】价格_厂家

上海供应BAT-1000W防爆投光灯巨祥防爆防爆双头应急灯

1台起批

￥980.00

乐清市柳市店后工业区7号

产品属性

图文详情

品牌推荐

品牌/型号

巨祥防爆/BAT-1000W

类型

防爆照明灯

型号

BAT-1000W

光源类型

金卤灯

防护等级

IP55

电压

220（V）V

光源功率

1000（W）W

加工定制

是

品牌

巨祥防爆

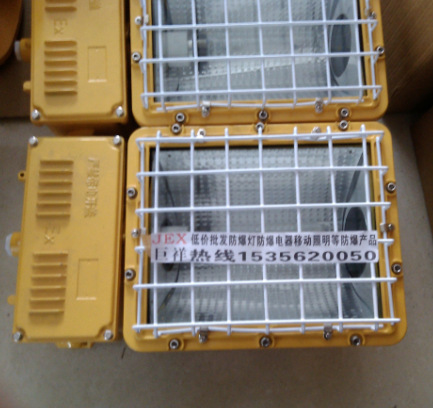

上海供应BAT-1000W防爆投光灯

巨祥防爆直销--价格优惠--

====巨祥防爆质量=服务优良===

)X4RT6V@`HQDO(J@5]H%XY6

4]E{7NM6L6ABI}Q0M9B5C9A

[VR%ER6%1%F123NC2PBWKZ5

广大的新老顾客朋友们，你们好，乐清巨祥防爆电器有限公司大降价啦，机会难得哦，我们以最真诚的服务对待，以最热情的招待，以最优惠价格售卖，以最好的质量回馈；广告打得好，不如实际作比较

我们对新顾客有以下优惠：

1.不满意的可以退货换货；

2.不喜欢的可以退货换货；

3.不好看的可以退货换货！

巨祥防爆电话0577-62709714

网站网址：http://www.jxfb.cn/

http://www.jexfb.com/

防爆投光灯适用范围：

1．适用于1区、2区危险场所；

2．适用于ⅡA、ⅡB、ⅡC类爆炸性气体环境；

3．适用于爆炸性气体混合温度：T1~T3；

防爆投光灯产品特点

*壳体采用铝合金压铸成型，表面高压静电喷塑；

*钢化玻璃灯罩，不锈刚外露紧固件，防护网采用镀锌后表面浸塑；

*采用活节螺栓紧固，能快速开启，便于安装与维护；

*灯体可在水平旋转360度，仰角在-60度～+90度内可调；

*反射罩采用抛物面形状，反射率高，远光时，射程能达100m

*电缆布线。

*符合GB3836——2000、IEC60079标准要求；

防爆投光灯订货须知：

1．按产品型号说明逐条选择，例：需配用光源为金卤灯70W、吊杆式安装配镇流器，则产品型号为BTD-L70gZ；

2．选用灯具配装镇流器时，如要求功率因数cosφ≥0.90，请在订货时注明；

3．本灯具出厂时不配光源，由用户自配；建议使用亚明、飞利浦、欧司朗品牌；

4．灯具出厂时不配灯伞，如需要时请注明

防爆投光灯技术参数

防爆标志: ExdⅡBT4 ExdⅡCT4

防护等级:IP55 IP56

电缆外径:10-14（Φ，mm）

进线口螺纹:3/4（G")

灯座代号:E40

质量:18（Kg)

额定电压:220V/50Hz

防爆投光灯光源类型1000W

自镇汞灯:250W/1000W

高压汞灯:175W/1000W

高压钠灯:150w/1000W

金卤灯: 175W/1000W

防爆自镇汞灯:450W/1000W

防爆汞灯:250w/1000W

防爆高压汞灯:400w/1000W

防爆钠灯:250w/1000W

防爆高压钠灯:400w/1000W

防爆金卤灯:250w/1000W

金卤防爆灯:400w/1000W

英文释义：

Shanghai supply BAT-1000W light projection lamp

Direct - - price concessions - wholesale

The quality of the first government government

The majority of the new and old customers and friends, you are good, Yueqing Ju Xiang explosion-proof electrical limited company big price, the opportunity is rare Oh, our most sincere service to treat, with the most enthusiasm hospitality, with the most preferential prices to sell, to the best quality feedback; advertising play well, not actual comparison

For our new customers have the following preferences:

1 not satisfied can return replacement;

2 don\'t like can return replacement;

3 nice can return replacement!

What are you waiting for? Please call to order it, manufacturers call 0577-62709067, mobile phone: 13695719702, the website net

Address: http://www.jxfb.cn/, http://www.jexfb.com/. In order to both the long-term interests, we build the speaker

Period of cooperation!!

Explosion proof light projector scope:

1 can be used in zone 1, zone 2 hazardous;

2 applicable toⅡ A,Ⅱ B,Ⅱ C group explosive atmosphere;

3 is applicable to explosive gas mixture temperature: T1~T3;

Light projection lamp product features

* shell adopts aluminium alloy die-casting molding, with high-pressure electrostatic plastic-sprayed surface;

* toughened glass chimney, stainless steel exposed fasteners, protective net after use galvanized surface;

* is fastened by eyelet bolt, can be opened quickly, easy installation and maintenance;

* the lamp body can be rotated 360 degrees of elevation in the levels, in -60 degrees to +90 degrees adjustable;

* the reflector adopts a parabolic shape, high reflectivity, high beam, range can be up to 100m

Cable wiring.

* with GB3836 -- 2000, IEC60079 standard;

Light projection lamp ordering notice:

1 according to the model by choosing, example: light source for metal halide lamp 70W, derrick installation with ballast, the product model BTD-L70gZ;

2 the selection of lamps with ballast, such as power factor cosφ≥ 0.90, please specify when ordering;

The 3 lamps factory not light, by the user with; recommendations for the use of Ya Ming, Philips, OSRAM brand;

4 lamps factory not light, if necessary, please specify

Light projection lamp technical parameters

Explosion proof mark: ExdⅡ BT4 ExdⅡ CT4

Protection grade: IP55 IP56

Cable diameter (φ, mm ): 10-14

Inlet thread: 3/4 ( G " )

Code of socket: E40

Quality: 18 ( Kg )

Rated voltage: 220V/50Hz

Light projection lamp light source type 1000W
