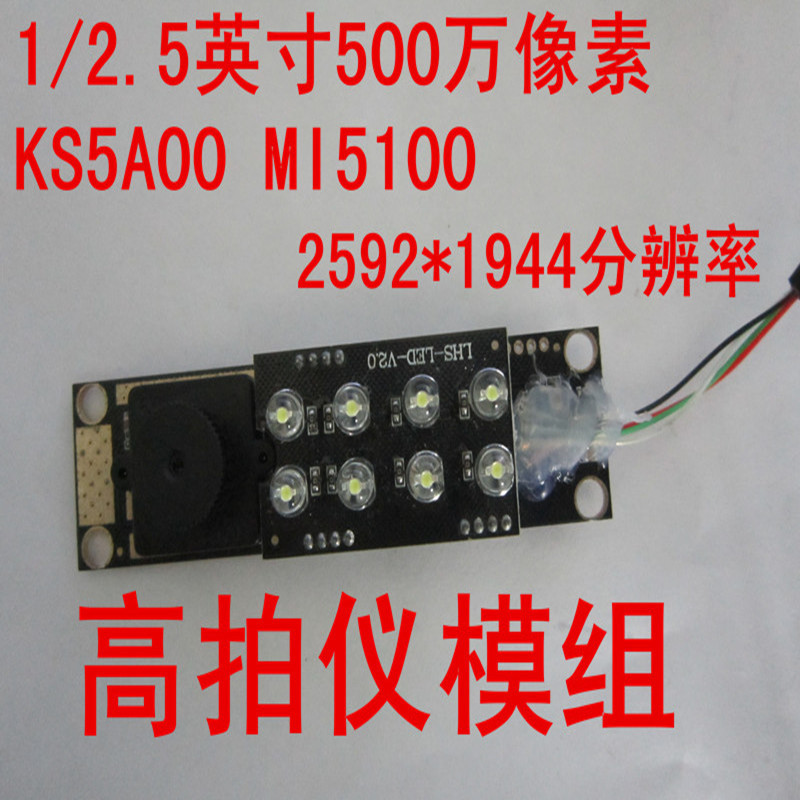

Module No.

        KS5A00

Module Size尺寸大小

38mm × 38mm

Temperature (Operation) 温度环境

-30°C to 70°C

Temperature (Stable Image) 最适温度

0°C to 50°C

Assembly technique

SMT (ROSH)

Focus

Fix

Object distance 拍摄距离（建议值）

1CM~500CM

Resolution 像素

500W

PCB printing ink 模板颜色

green

Interface 接口

USB 2.0

Power

USB bus power

Power consumption

110mW（VGA）; 130 mW（UXGA）;

Operating system request操作系统

Windows 2000、Windows XP、7

Focus 调焦模式

Manual

Package

Paper Pulp

Certifications

FCC and CE

Image compression 图像压缩格式

YUY2 / MJPG

Sensor Type 感光

 1 / 2.5

Active Array Size最大分辨率

2592*1944 (4：3)

Max S/N ratio

36dB(maximum)

  Power supply

Core

1.5V±5%（with embedded 1.5V regulator)

Analog

2.6~3.0V(2.8V typical)

I/O

1.8V/2.8V

  Dynamic range

68dB @ 8x gain

Sensitivity

TBD

Pixel Size

1.4µm x1.4µm

Maximum Image Transfer Rate

See table2-1 for detils

S/N Ratio

TBD

Dynamic Range

TBD

Package

CSP,Bare Die

AGC/AEC/Whiter balance

Auto

Output Formats

USB suspend out

Fixed Pattern Noise

< 0.03% of VPEAK-TO-PEAK
