一、产品介绍
Introduction

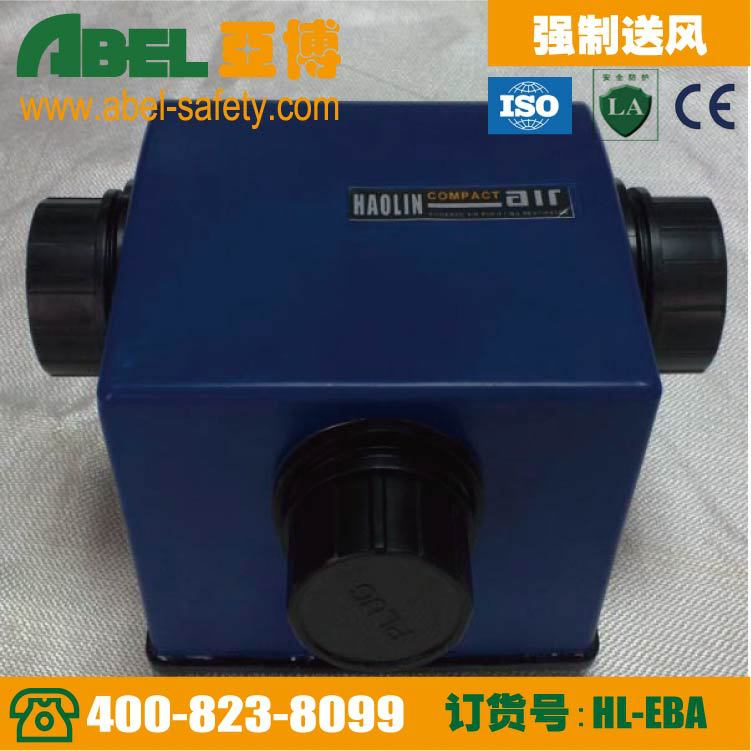

本产品主要由面罩或头罩、导气软管、鼓风机、电池组、充电器及2-3个小型滤罐组成。是一种通过蓄电池驱动风机强制送入空气过滤,并通过导气管送入面罩的个人呼吸道防护器材,能有效地保护佩戴人员的面部,眼睛和呼吸道免受毒剂、生物战剂和放射性尘埃的伤害。可供工业、农业、医疗队和科研等不同领域人员使用,亦可供军队、消防和民防使用。
This product is mainly composed of a mask or head hood, gas hose, air blower, battery, charger and 2-3 small canisters. It is a kind of forcing into the air filter through a battery powered fan, This is personal respiratory protection equipment through the guide tube into the mask, can effectively protect the user's face, eyes and respiratory tract from the toxic agents, biological agents and radioactive dust. Can be used in industrial,agricultural, medical and scientific research, military, fire protection and civil use and so on.
二、产品特征
Features
1、交直流两用,使用方便。
2、电量不足时蜂鸣报警。
3、外观精致美观,做工特别精细。
4、满负荷电池能提供5小时以上170升/分钟的持续气流。
5、根据作业环境的不同,可选用不同的头罩、面罩和滤罐。
6、开放式头罩适用环境与过滤式呼吸装备一致。
7、高档豪华抗冲击航运塑料存放箱包装。
1、AC-DC dual-use, easy to use.
2、Electricity shortage alarm buzzer.
3、Eelicate and beautiful in appearance, especially fine workmanship.
4、Full load cell can provide 170 L / min continuous flow more than 5 hours.
5、Can choose different hood, mask and filters according to the working environment.
6、Open the hood and application environment of filtering breathing equipment consistent.
7、Luxury and shock resistant shipping plastic storage box .
三、产品技术参数
Technical parameters of the product
满负荷工作时间 The full load operating time | 5小时 More than 5 hour |
送风口流量 Air flow | 不小于170L/min Not less than 170L/min |
油雾透过率 Oil mist transmittance | ≤0.0005% |
面具漏气系数 Mask leakage coefficient: | ≤0.0005% |
规格 Specifications | 59x45x22.5 |
重量 Weight | 8 Kg |
呼气阻力 Expiratory resistance | ≤98pa(30L/min) |
防毒时间 A time | 同选定罐的性能 The performance same with selected tank |
贮存寿命 Storage life | 面具滤毒罐在规定条件下,贮存期为5年 Under specified conditions, canister storage period of 5 years |
