YZC8

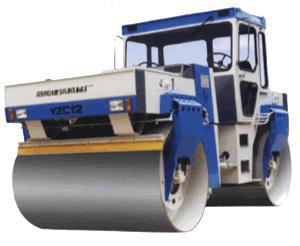

   Hydraulic double drum vibratory rollers are manufactured according to international advanced technology and by use of imported main components abroad, suitable for compaction of various stabilized soils, bituminous concrete and rolling cement concrete (RCC) on road surface construction, also for compaction of road base course，which are universal compaction equipments for high-class highway, airport, harbors, dams, municipal road and industrial ground.
Imported Deutz air-cooled diesel engine with excellent performance.
Hydrostatic all-drum travel drive directly by slow speed high torque hydraulic motors at two range infinitely variable speeds.
Dual frequency and amplitudes vibration system with imported piston pump and motors.
Center articulated steering with crabwalk unit for flexible maneuverability.
Integrated multi-disc wet brake with oil-cutoff braking for reliable safety.
Comfortable and spacious operator's cab with dual steering wheels and seats for convenient operations.
Electric power sprinkler system with large capacity reinforced polyethylene water tank.

型号

YZC8

工作质量

kg

8000

静线载荷

N/cm

231

振幅

mm

0.67/0.34

振动频率

Hz

40/50

激振力

kN

90×2/69×2

最高行走速度

km/h

13

爬坡能力

%

45

转弯半径

mm

6120

振动轮宽度

mm

1735

振动轮直径

mm

1050

轴距

mm

2638

最小离地间隙

mm

350

柴油机型号

mm

DeutzF4L912

柴油机功率

kW

51

外形尺寸

mm

3680×1930×2850
