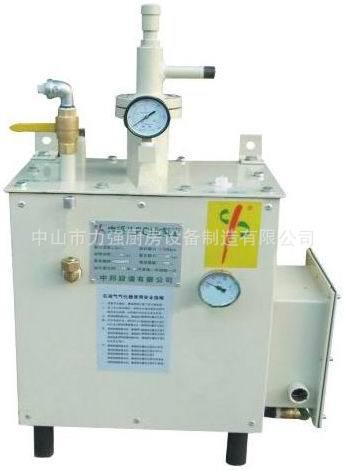

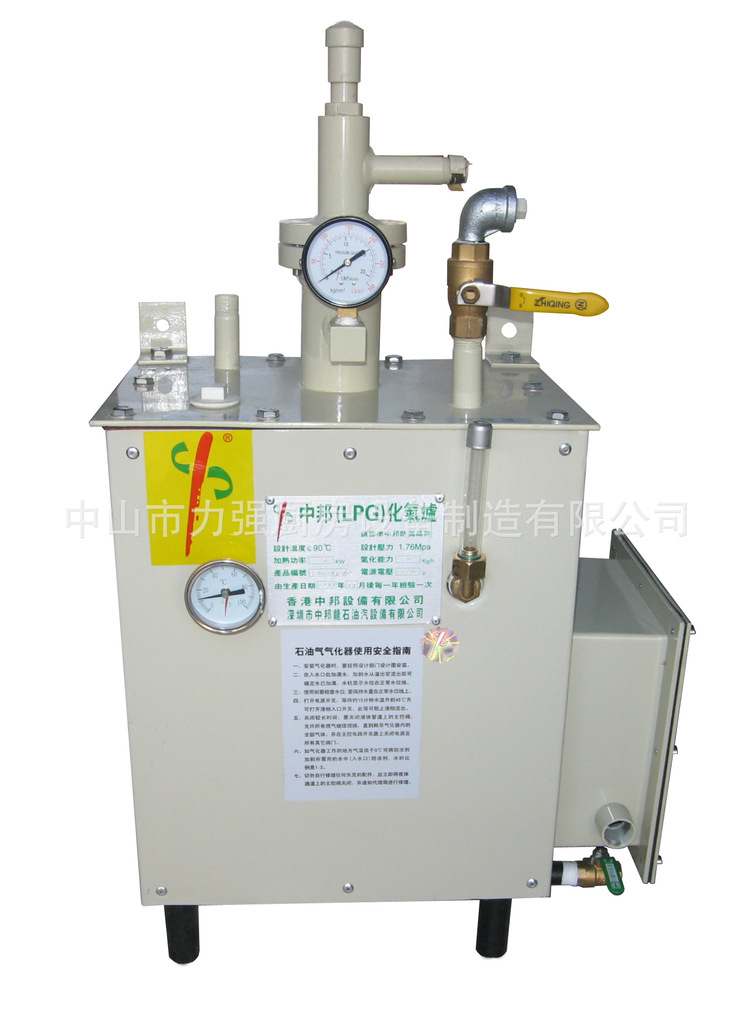

方形挂墙式气化炉
气化炉 Gasifier ——方形挂墙式
产品说明： →
气化炉（又名：防爆气化器），是强制气化液态石油气、液氨等液相气体的一种装置；它能很好的解决钢瓶中的LPG液化石油气（煤气）大量残余和管道起霜结冰等现象，从而保证连续供气和供气压力。适合企业、学校和餐饮业厨房。它与减压阀、调压器、高压胶管、压力表、安全阀、报警器以及其它配件组成完整的供气系统——气房。
Gasifier (also known as: explosion proof vaporizer), is forced to gasification liquefied petroleum gas, ammonia liquid etc gas a device; it can solve the LPG liquefied petroleum gas cylinder large number residual and pipes frost freeze of phenomena, ensure continuous gas supply and gas supply pressure.Fit for businesses, schools and catering kitchen. With pressure reducing valve, pressure regulator,high pressure hose, pressure gauge,safety valve,alarm and other accessories to form a complete air supply system-gas room.
技术参数： →
型号 Model | 工作压力 Pressure | 气化量 Gasification of | 介质 Media | 加热方式 Heating mode | 功率 Power | 外形尺寸 Dimension(mm) |
CPTYL-100 | 1.76Mpa | 100kg/h | 丙烷70% | 空温式 | —— | 1420×2000×2500 |
CPTYL-500 | 1.76Mpa | 500kg/h | 丙烷70% | 空温式 | —— | 5850×2000×2500 |
CPEx-30 | 1.76Mpa | 30kg/h | 液化石油气 | 电热式 | 4.0kw/380V | 550×850×950 |
CPEx-100 | 1.76Mpa | 100kg/h | 液化石油气 | 电热式 | 15kw/380V | 760×1150×1250 |
CPEX-500 | 1.76Mpa | 500kg/h | 液化石油气 | 电热式 | 68kw/380V | φ600×2220 |
更多型号、规格及详细参数，请来电咨询…… |
|
|
|

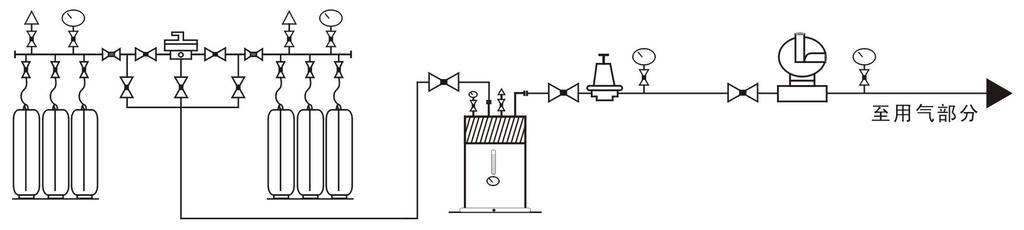

气房原理流程图： →
详细参数请来电垂询……

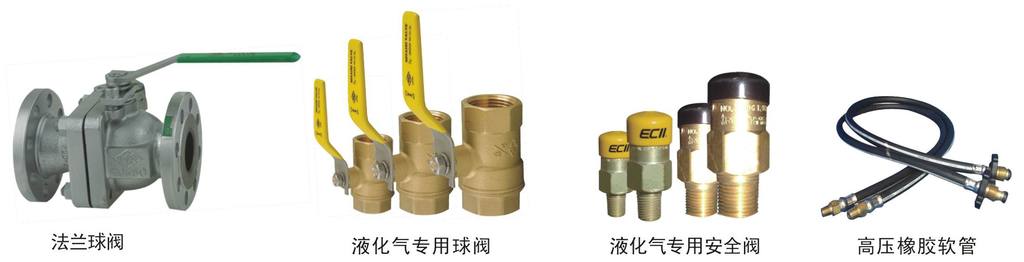

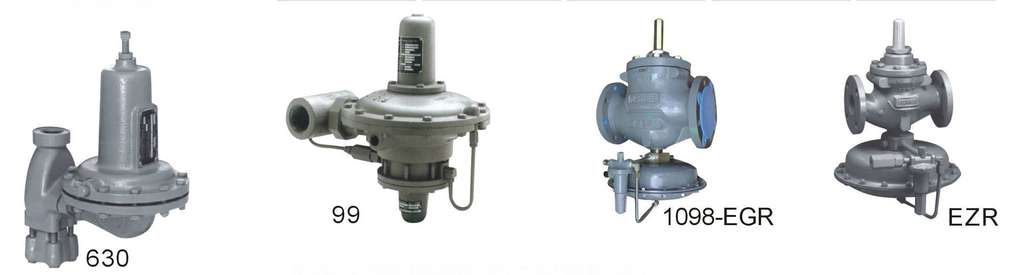

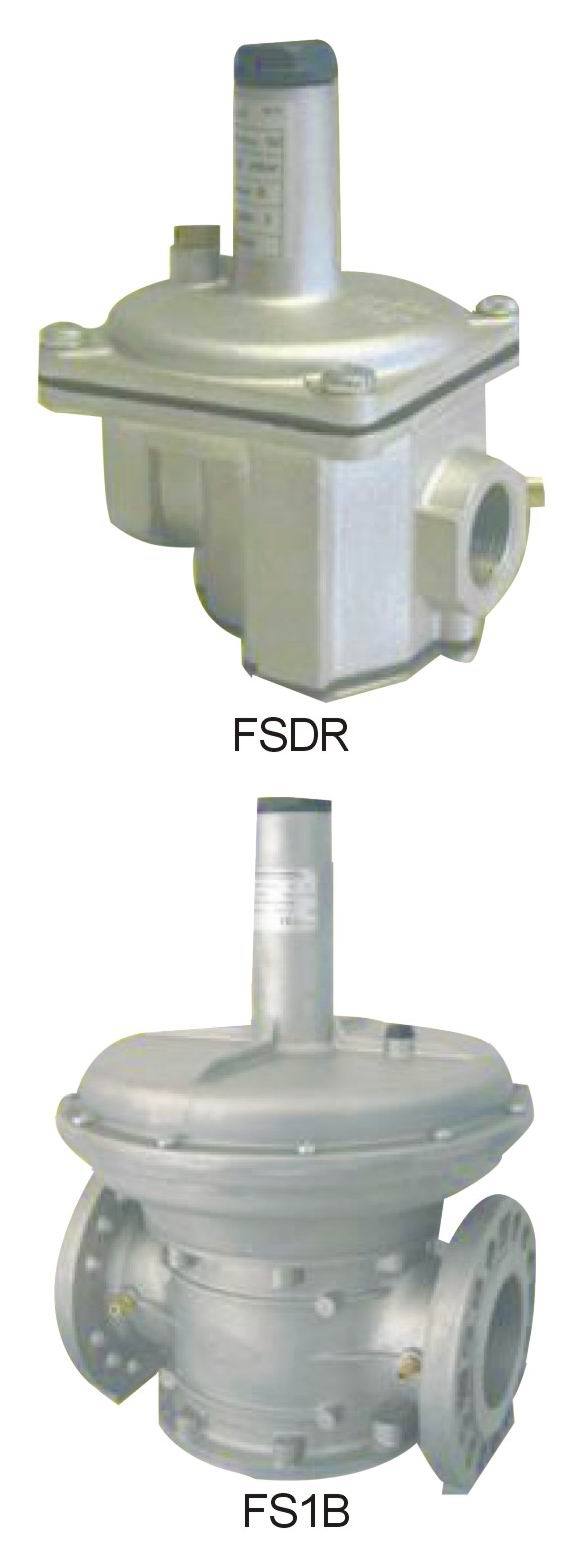

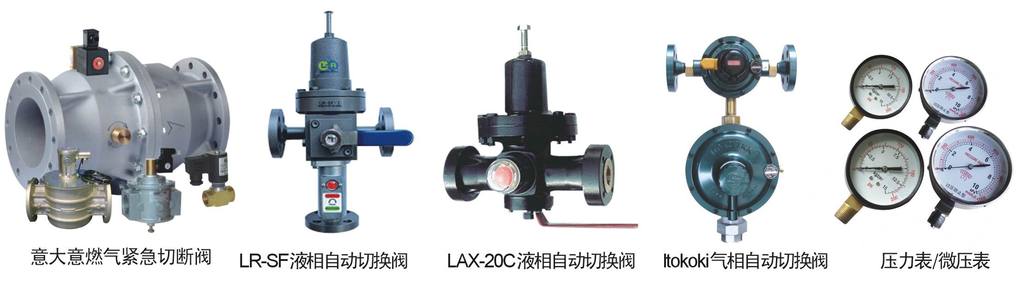

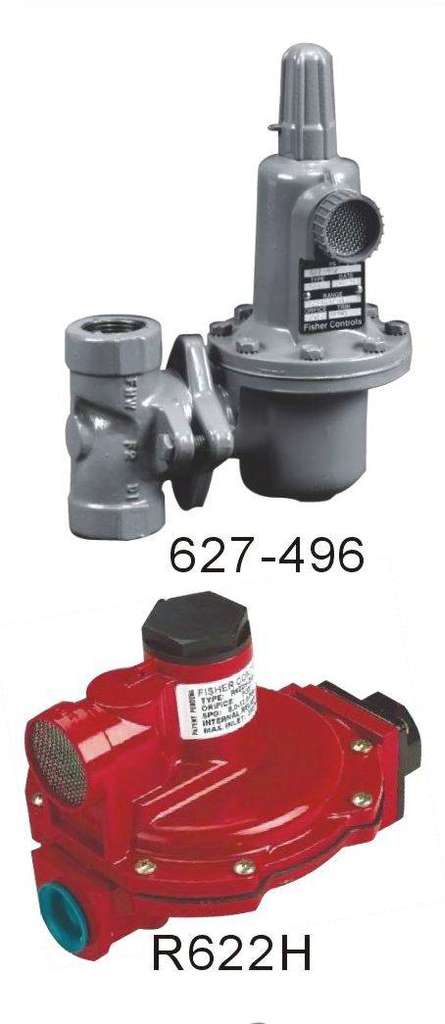

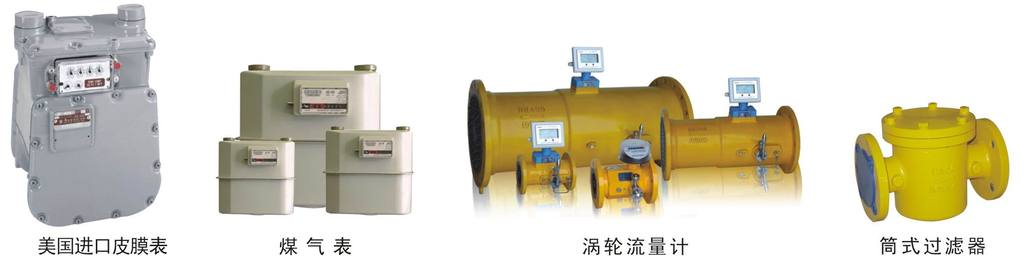

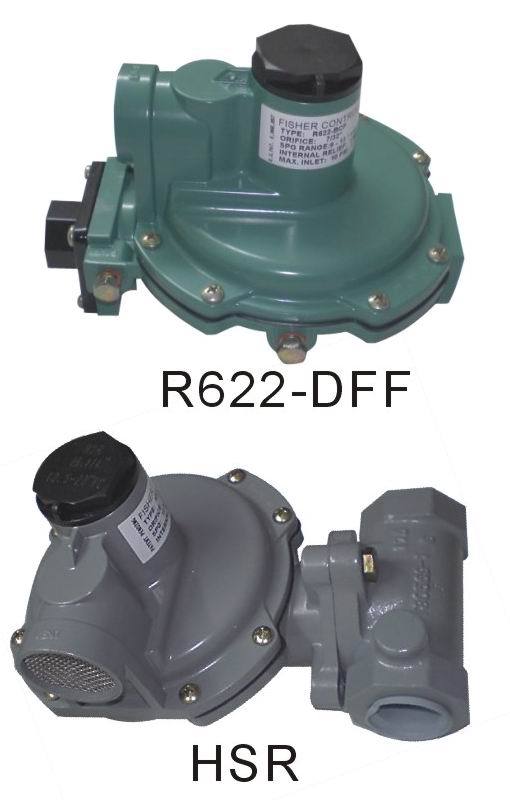

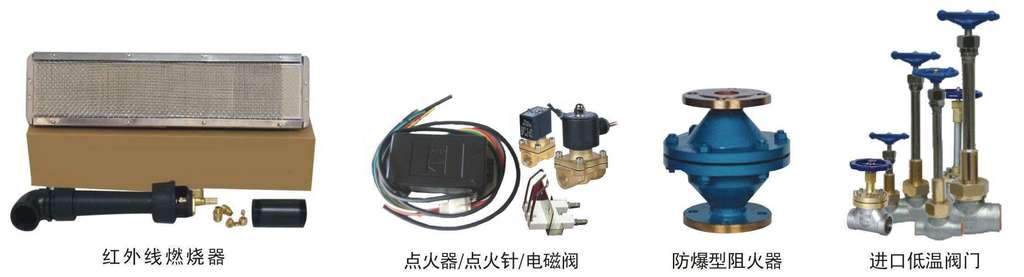

相关配件（选取）： →
