Wireless Standards

IEEE 802.11g

IEEE 802.11b

Host Interface

High speed USB2.0/1.1 interface

Data Rate

802.11n: up to 300Mbps (downlink) and 150Mbps (uplink)

802.11g: 54 / 48 / 36 / 24 / 18/ 12 / 9 / 6 Mbps auto fallback

802.11b: 11 / 5.5 / 2 / 1 Mbps auto fallback

Frequency Band

2.4GHz ISM (Industrial Scientific Medical) Band

Chipset

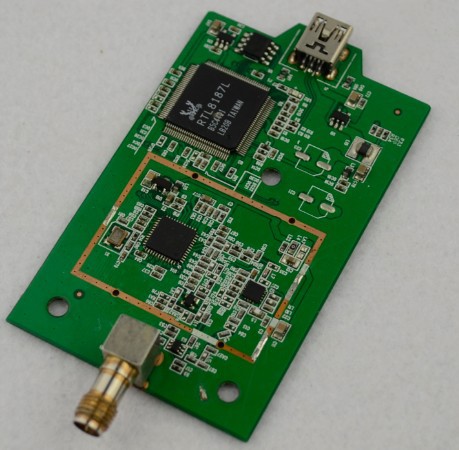

Realtek 8187L

RF Frequency

2412 ~ 2462 MHz (North America)

2412 ~ 2472 MHz (Europe)

2412 ~ 2484 MHz (Japan)

Radio Channel

1 ~ 14 channels (Universal Domain Selection)

Range Coverage

Up to 3 times farther range than 802.11g

Antenna type

Integrated Antenna

Roaming

Full mobility and seamless roaming from cell to cell

RF Output Power

13 ~17 dBm (Typical)

Modulation

11n: BPSK, QPSK, 16QAM, 64QAM with OFDM

11g: BPSK, QPSK, 16QAM, 64QAM, OFDM

11b: DQPSK, DBPSK, DSSS, CCK

Data Security

64/128-bit WEP Encryption

WPA, WPA-PSK, WPA2, WPA2-PSK. TKIP/AES

Network

Auto-switch to use 802.11g or 802.11b mode

Supports Ad-Hoc, Infrastructure WLAN network

Wireless roaming

Data rate auto fall-back under noisy environment or longer range distance

Site Survey with Profile function

Configuration & Management

Plug-and-Play setup and installation

Management Utility supports 2000 / XP/ Vista

Media Access Control

CSMA/CA with ACK

LED Indicator

Link/Active ( Green )

Operating System

Windows 2000, XP 32/64-bit, Vista 32/64-bit，
Linux and MAC OS X

Environment

Operating Temperature: 0oC to 40oC

Storage Temperature: -20oC to 75oC

Operating Humidity: 10% ~ 90% (Non Condensing)

Storage Humidity: 5% ~ 95% (Non Condensing)

Size

19*13.1*3.4cm
