●技术参数 Technical Parameter
型号Model | T8-12-2835 | T8-9-2835 | T8-6-2835 |
LED 数量 LED Qty | 96PCS | 66PCS | 48PCS |
额定功率 Power | 18W | 13W | 10W |
输入电压 Voltage | AC185-265V/DC24V |
工作频率 Working Frequency | 50-60HZ |
效率 Power Efficiency | >= 85% |
光效 Luminous Flux | Transparent：100-115LM/W Frosted：70-85LM/W |
照度 LUX（1.75M） | Transparent：195 Frosted：145 | Transparent：145 Frosted：105 | Transparent：100 Frosted：70 |
功率因数 Power Factor | >= 0.9 |
色温 Colour Temperature | WW: 2800 - 3200K WW:4000 - 4500K W: 6000 - 6500K |
显色指示 CRI | Pure White: Ra >= 70; |
发光角度 Bean Angle | 120º |
工作温度 Working Temperature | -20 to +60 ºC |
工作湿度 Working Humidity | 10 - 60% RH |
使用寿命 | 50,000hr life, 2yr warranty |

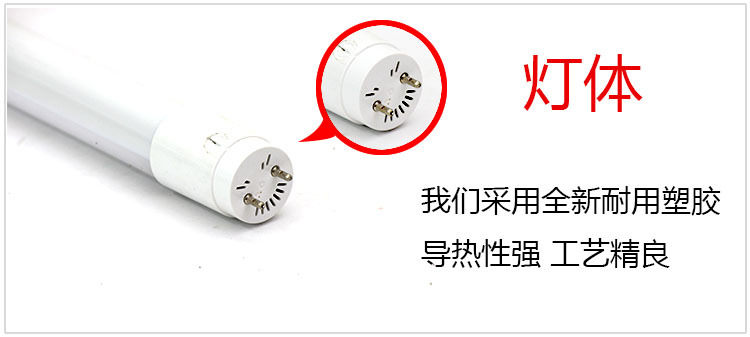

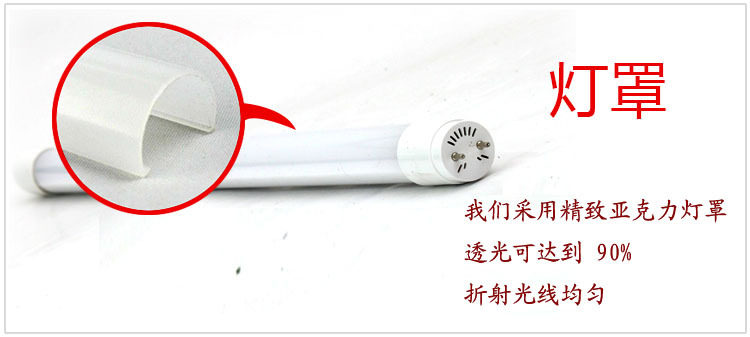

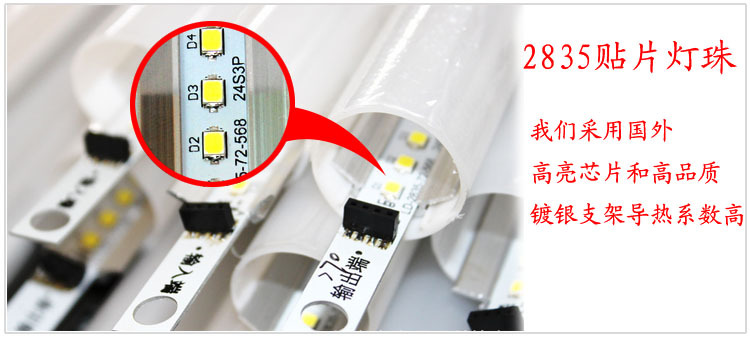

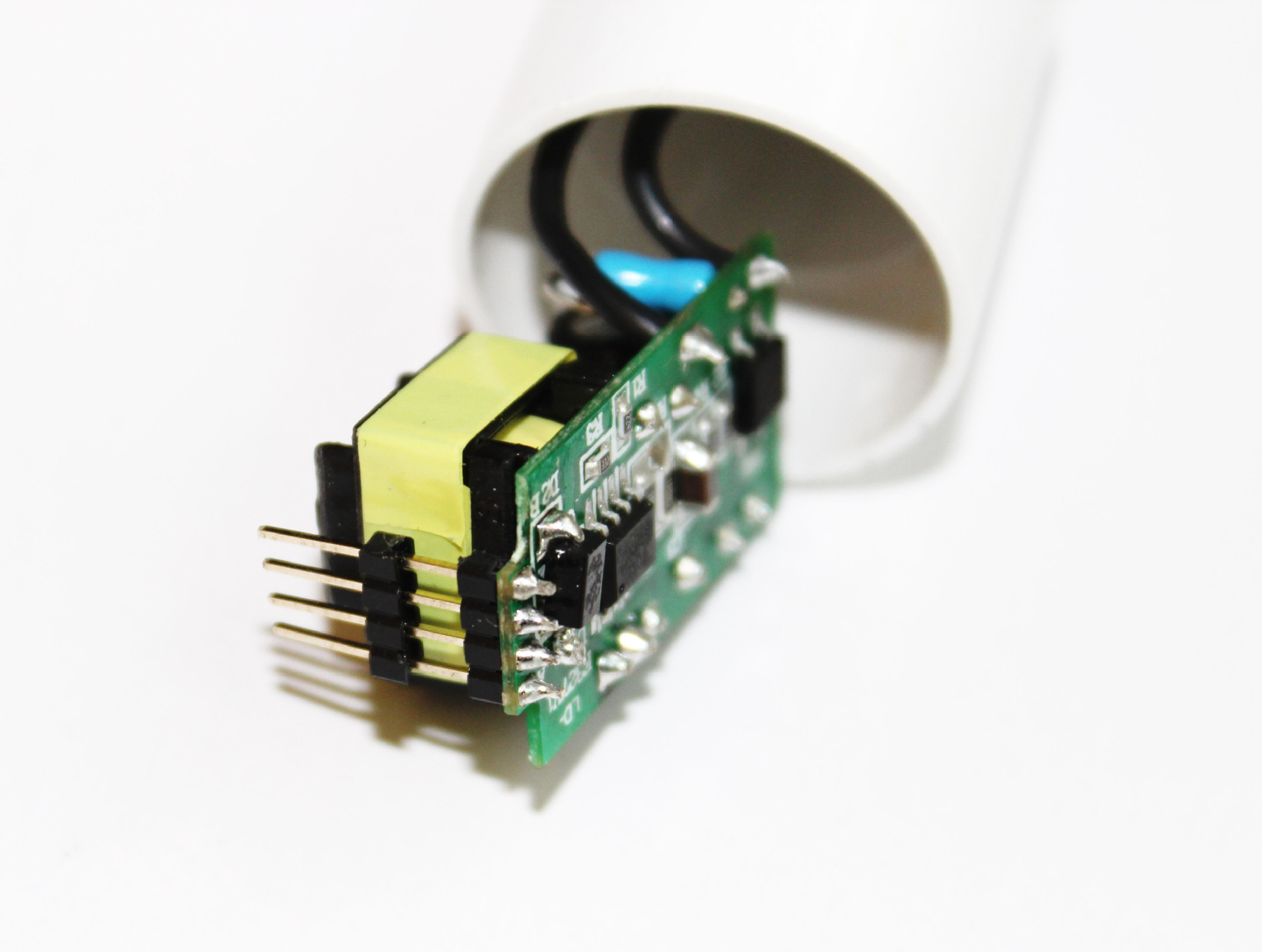

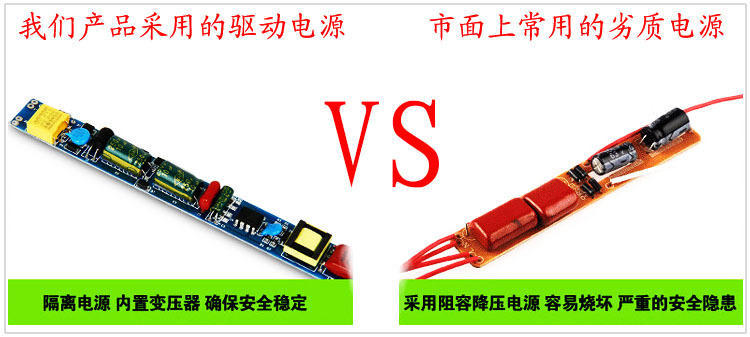

细节图片：
●相对光谱能量曲线 Relative Spectral Energy Distribution

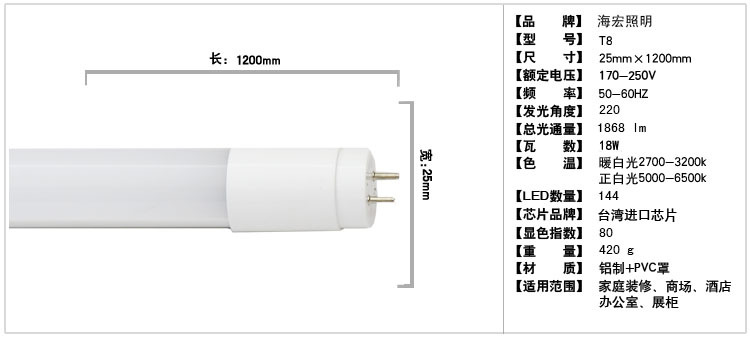

●外形尺寸图 Dimensions
Model | Spec(mm) | A(mm) | B(mm) | C(mm) | D(mm) |
T8-1.2 | L1198*Ø26 | 1198 | 1208 | 26 | 15 |
T8-0.9 | L894*Ø26 | 894 | 904 | 26 | 15 |
T8-0.6 | L588*Ø26 | 588 | 598 | 26 | 15 |
●安装接线示意图 Instruction of wiring
电感式镇流器灯管替换示意图
The Graphic Illustration for the Exchange of Inductive Ballast LED Tube
电子式镇流器灯管替换示意图
The Graphic Illustration for the Exchange of Electronic Ballast LED Tube
●安装说明 Installation Instructions
1. 安装前先切断原线路电源。
Cut off the original line power before installation;
2. LED日光灯管可直接安装在T8或T10支架上（取下启辉器）；
LED tube lights can be installed directly in the T8 or T10 bracket (remove the starter); 3. 有电子镇流器的不可直接安装，需去掉电子镇流器；
If there is an electronic ballast, it can’t be installed directly, you should get rid of electronic ballast; 4. 非专业人士不可自行拆装LED灯管，包括更换PC面罩；
Non-professionals should not disassemble the LED lamp by themselves, including replace of the PC cover;
5. 使用过程中若有异常请与我司联系，不可随意拆开此产品，否则不作保修。
If there is any unusual problem when using, please contact us. The product couldn’t be open optionally, or no warranty for it.
●产品包装 Product Package
彩盒包装，30PCS/箱（中性包装）
●产品应用实例 Products Application Cases
'
