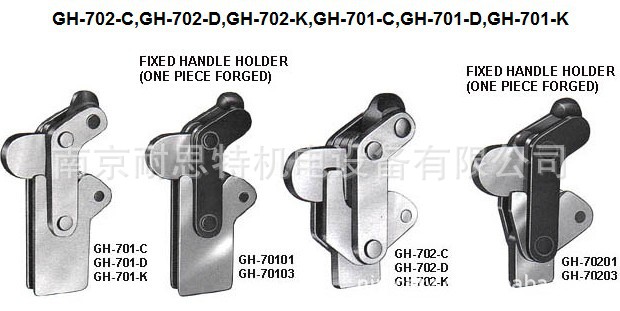

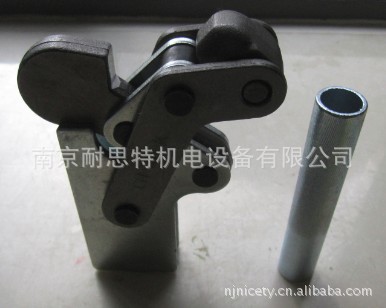

GH-702-C,GH-702-D,GH-702-K,GH-701-C,GH-701-D,GH-701-K
Extreme
versatility and compact design make these clamps excellent for heavy-duty and
high production applications, and also allows the user to customer fit his
clamping requirement. Forged steel construction, hardened steel pins, and
bushings at pivot points assure durability.
Clamps are supplied with a pivot
base and a separate handle. The user welds pivot base and handle in desired
position and supplies required hold down bar.

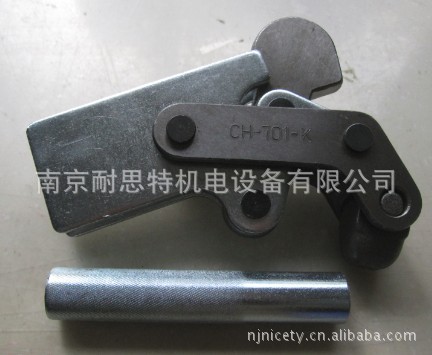

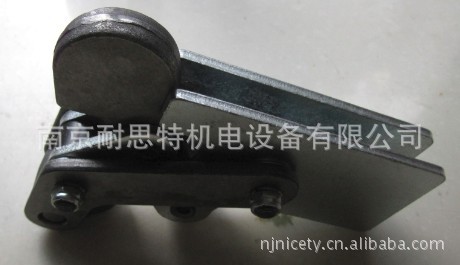

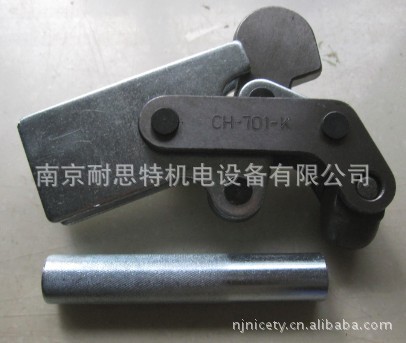

GH-701 series.
Ideal where
mounting space is limited. Base can be drilled or weld. Clamps are supplied with
a separate handle. The user welds handle in desired position and supplies
required hold down bar. |
紧凑、多功能完美设计，加上特殊材料制作的枢轴和轴套等零件，保证承担繁重且高频次生产速度的需要，具有很高的耐久性。
用户需要在安装位置上将夹钳用焊接方式联接，并选择理想方向将手把焊装连接。
GH-701系列：
在设计的安装位置上将夹钳焊接安装，并在理想的空间位置焊装手把并点焊固定与手把连接的头部，使其操作方便自如。
|

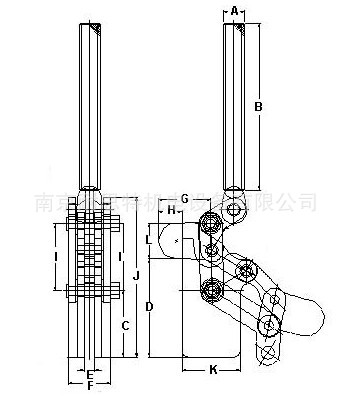

| MODEL型号 | HOLDING
CAPACITY夹持力 | A | B | C | D | E | F | G | H | I | J | K | L | WEIGHT自重 |
| GH-702-C | 200KG | Ø17.3 | 152.4 | 23.8 | 48 | 8 | 31.8 | 40 | 17 | 50.8 | 93 | 26 | 28 | 660G |
| GH-702-D | 500KG | Ø21.7 | 152.4 | 33.7 | 69 | 13 | 42 | 48.8 | 24.6 | 70 | 132 | 36.4 | 39 | 1470G |
| GH-702-K | 1000KG | Ø27.2 | 152.4 | 37.2 | 84 | 16 | 46 | 53 | 25 | 90 | 167 | 54 | 52 | 2610G |
| GH-701-C | 200KG | Ø17.3 | 152.4 | 50 | 14.5 | 8 | 31.8 | 40 | 17 | 50.8 | 121 | 44.5 | 28 | 600G |
| GH-701-D | 500KG | Ø21.7 | 152.4 | 66.8 | 102 | 13 | 42 | 48.8 | 24.6 | 70 | 165 | 50 | 39 | 1590G |
| GH-701-K | 1000KG | Ø27.2 | 152.4 | 80 | 123 | 16 | 46 | 53 | 25 | 90 | 205 | 63 | 52 | 2650G |
