GN 852Latch clamps Heavy duty type
•Black oxide forged steel body and latch bracket.
•Forged steel with black coating operating lever.
•Zinc-plated steel pulling latch and parallel fulcrum pin.
All moving parts are lubricated with special grease.
GN 852 latch clamps allow a toggle and safe locking of lids and covers.
It is suitable for very high holding forces, thanks to its high-resistance materials,
as in the field of plastic high pressure mould forming.

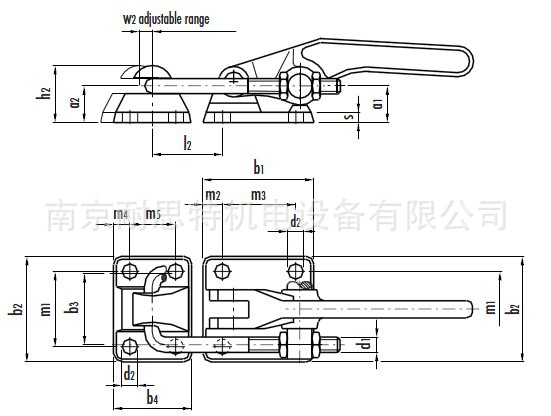

The stroke of the pulling latch can be adjusted within its range.
?
