行车电缆

      应考虑在电缆中增加承力元件，承力元件一般为镀锌软钢丝绳。

The driving cable

Application scope of installation:

The cable with special structural design, can be used as power and control cables installed in orbit, crane, logistics delivery, etc.

The properties of the cable:

USES the new type oil resistant flexible special outer sheath, can maintain soft under the low temperature - 15 degrees, flame retardant.

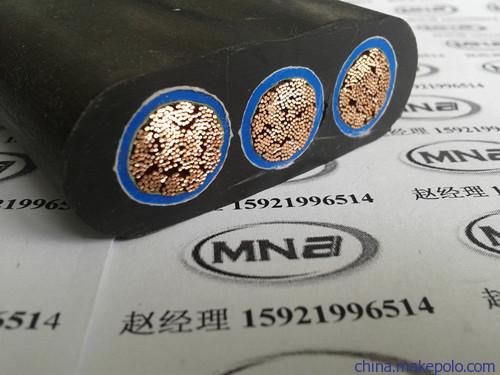

Cable structure:

Conductor: what a fine ground oxygen-free copper wire, accord with VDE0295 CLASS 5 standard.

Insulation: special oil resistant, flame retardant, mixed PVC insulation.

Color: color, according to conform to the iec 227 (brown, blue, black, yellow, green).

Black white number number, EN50214 standard (please) if you need yellow green ground wire.

Cable sheath, oil resistant, flame retardant, special elastic PVC sheathed or gray (RAL7001), black (RAL9005).

When used in outdoor must show in advance.

Such as crane usage is as follows:

The cable core is word order

1. The freedom to use length is greater than 35 meters

2. Speed is greater than 1.6 m/s

Should consider to add the bearing components in the cable, the bearing components for soft galvanized wire or fiber rope Aaron, such as spinning yarn, etc.

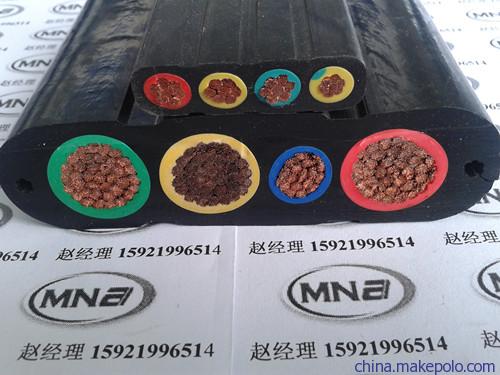

Cable core is plum blossom stranded when arranged

1. The free hanging length is more than 80 meters

2. The running speed of 4.0 m/s to 10.0 m/s

Should consider to add the bearing components in the cable, the bearing components for soft galvanized wire rope commonly.__ke_temp_url__
