适用于易燃易爆场所安全工作，用于各种室内，
外工作场所。中国煤炭行业、中石油、中石化、中海油、电力、冶金、
铁路、钢铁、船舶、部队、航空航天、公安消防、化工、政府部门及

简介
Introduction
◆环境温度为-25℃~+55℃；
The environmental temperature of -25 ℃ ~+55 ℃;
◆安装高度不超过海拔2000m
The installation height of not more than 2000m above sea level
◆适用于强酸、强碱、盐、氨、氯离子腐蚀、多水、多尘、潮湿的环境；
◆ suitable for acid, alkali, salt, ammonia, chloride ion corrosion, more water, more dust, damp environment;
◆适用于石油、化工、码头、食品、医药、军工等场所；
◆ applicable to the petroleum, chemical, food, medicine, military wharf, etc.;
◆用于工作现场中照明或动力线路的通断控制。
◆ used for lighting or power lines work on-site on-off control.
订货须知
Ordering instructions
◆本产品未不锈钢和玻璃纤维增强不饱和聚酯树脂两种外壳，订货时请注明;
This product is not stainless steel and glass fiber reinforced unsaturated polyester resin two shell, please specify when ordering;
◆本产品分照明型和动力型两种，常规照明型断路器为1P，动力型为3P，如有特殊要求请注明。
◆ the product of illumination and dynamic type two kinds, general lighting circuit breaker is 1P, power is 3P, if you have special request, please specify.
产品特点
Product features

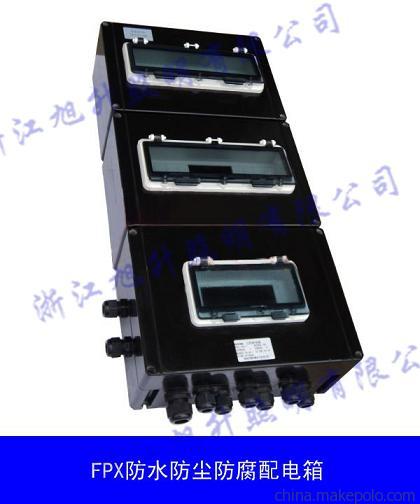

◆外壳采用不锈钢采或玻璃纤维增强不饱和聚酯树脂压制而成型，结构轻巧，外形美观；
Stainless steel or glass fiber reinforced unsaturated polyester resin suppression and molding, light structure with the shell, and beautiful appearance;
◆所有外露紧固件全部采用为不锈钢材质；
◆ all exposed fasteners are used for stainless steel;
◆本产品采用曲路密封结构，直接用紧固件紧固，具有良好的防水、防尘性能，防护等级IP65；
This product adopts curve sealed structure, with fasteners directly, with waterproof, dustproof performance is good, the level of protection IP65;
◆本系列产品抗强酸、强碱、盐腐蚀，防腐等级为WF2;
This series of products of strong acid, alkali, salt corrosion, the anti-corrosion class for WF2;
◆内装有高分断小型断路器，通过打开壳盖上的防水防尘透明罩进行操作；
◆ with MCB, waterproof and dustproof cover open shell through the transparent cover operation;
◆具有过载、短路保护功能，可根据用户要求生产带漏电保护功能产品；
◆ with overload, short circuit protection function, can according to customer request production of products with the leakage protection function;
◆既可作照明电路或动力电路的配电或通断之用，还可照明、动力配电或通断混用；
It can be used as a lighting circuit or power distribution circuit or on-off purposes, can also be lighting, power distribution or hige combination;
◆可根据用户要求特殊制造；
◆ according to user requirements special manufacturing;
◆钢管或电缆布线。
◆ steelpipe and cable wiring.
技术参数
Technical parameters
额定电压：AC220/380V
Rated voltage: AC220/380V
主回路额定电流：60A~250A
Rated current of main loop: 60A~250A
支路数：2、4、6、8、10、12
The branch number: 2, 4, 6, 8, 10, 12
支路额定电流：1A、3A、5A、10A、15A、20A、25A、32A、40A、50A、60A
Branch current: 1A, 3A, 5A, 10A, 15A, 20A, 25A, 32A, 40A, 50A, 60A
防护等级：IP65
Protection grade: IP65
防腐等级：WF2
Protection grade: WF2
引入口规格：G1/2”~G3”
Introduction of export specification: G1/2 "~G3"
适用电缆外径：∮6mm~∮55mm
For cable diameter: 6mm~, 55mm
引入口方向：下进下出、下进上出、上进上出、上进下出
Introduction: the direction of the mouth down in and out, in, out, up and coming out under
​
