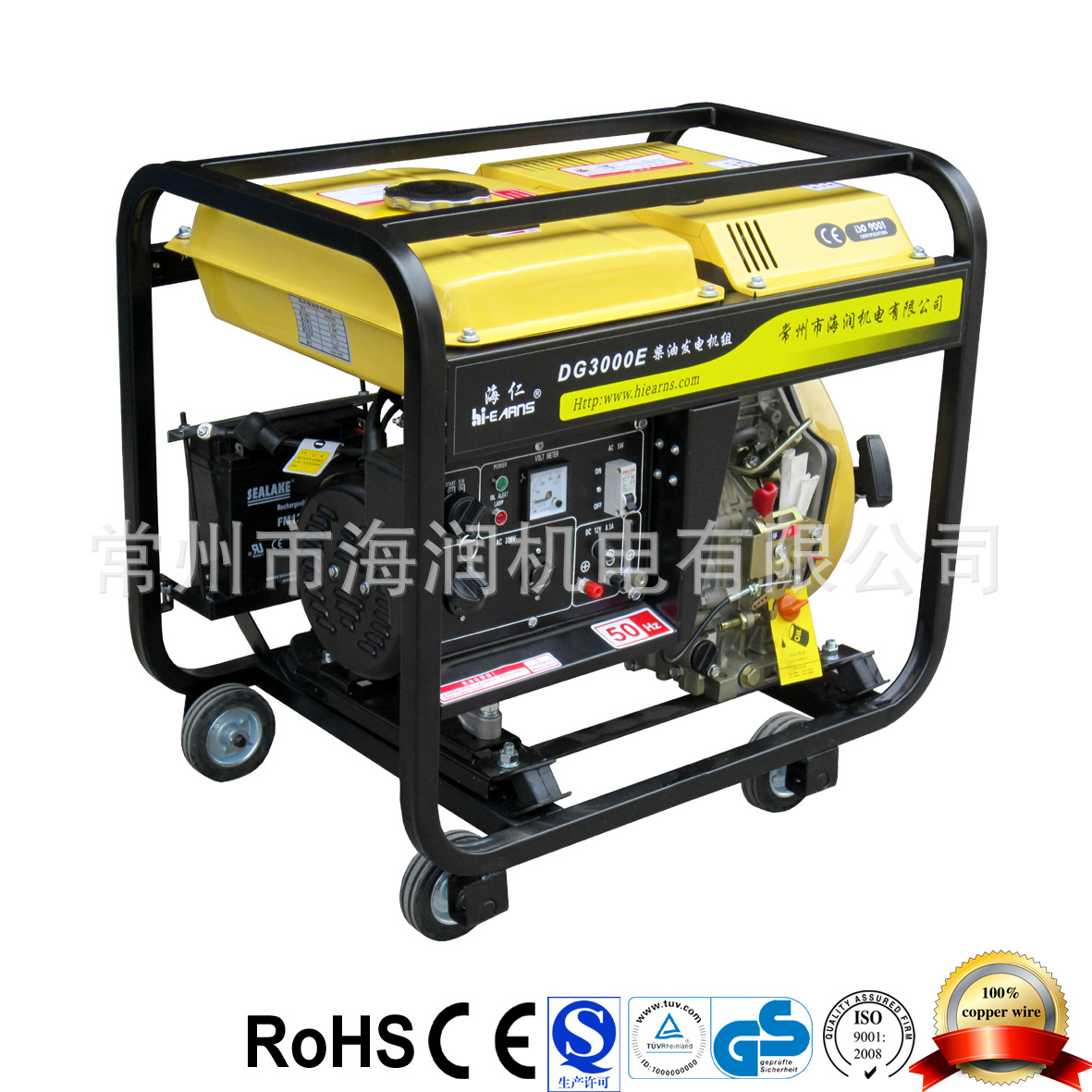

发电机组

Generator Sets

Frequency频率(HZ)                              50HZ           60HZ

Max output 最大输出(kw)                        3.0             3.3

Rated output 额定输出(kw)                     2.8             3.0

Rated.AC voltage额定电压（v）            120,220,230,120/240,220/380

Power factor功率因素                                      1

DC output直流输出（V）                             12V/8.3A

Phase相数                                            single phase单相

Alternator type电机形式             self-excited,2-pole,single phase alternator                                                          自励磁两级，单相电机

Starting system启动系统                       Recoil& Electric电启动

Noise level（at 7m）7米处噪音                        80-85

Fuel tank capacity燃油箱容量（L）                      12.5

Continuous work持续工作小时                   10.7            10

动力

Engine

Engine Model:动力型号                                    HR178F

Engine Type 动力形式        single-cylinder, vertical,4-stroke air-cooled diesel engine

                                                              单缸，直立，四冲程，分冷柴油机

Max output of engine:动力最大输出功率       3.7HP/3000rpm      4.0HP/3600rpm

Bore X Stroke (mm)缸径X行程                            78*62

Displacement Capacity(cc) 排量                            296

Fuel Consumption rate(g/kw.h) 燃油消耗率                   ≤280

Fuel燃油                                                        0# or -10#  light diesel oil

Lubrication Oil Volume (L) 润滑油容量                      1.1L

Combustion System   注射方式                       Direct Injection（直接注射）

        标配

Standard Features

Voltmeter  电压表                                                Yes

AC Output Socket交流插座                                    2

AC Circuit Breaker直流保护                                 Yes

Oil warning Light低油压报警灯                              Yes

Oil Alert机油报警器                                               Yes

            选配

Optional Features

DC circuit breaker 直流保护插座                        Optional

Hour Meter计时器                                            Optional

Three Phase Voltage 三相电                            Optional

Current Meter电流表                                       Optional

Remote Control遥控                                         Optional

ATS自动切换                                                      Optional

Digital Control Panel 数码面板                           Optional

New Canopy Type新款外壳                                Optional

     Dimensions

      尺寸

LxWxH (mm)静音款尺寸                                 700*480*570

20FT                                                                   130PCS

Weight 静音重量                                                   68kg
