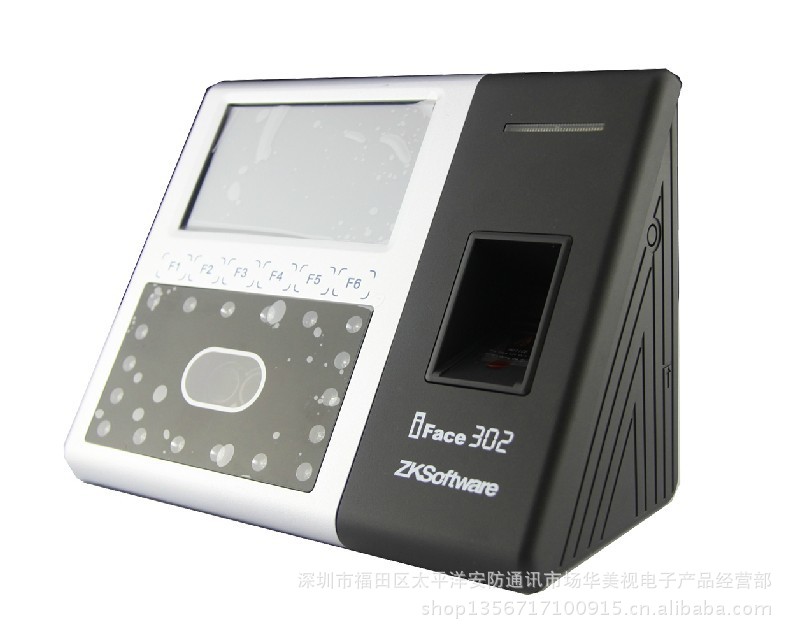

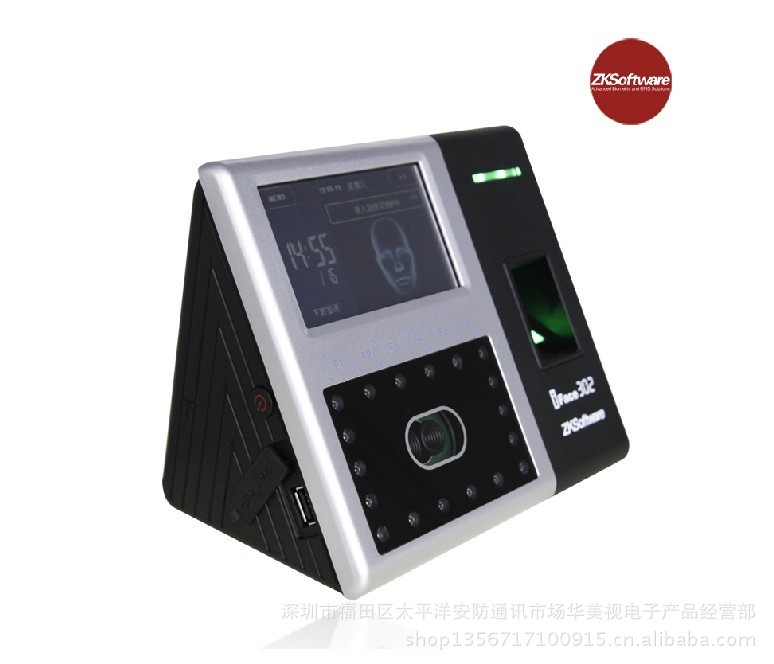

iFace302面部指纹混合验证考勤门禁终端
产品介绍
中控科技2009年8月推出iFace系列指纹、面部、RFID混合验证考勤门禁终端。该产品采用了中控科技最新的ZEM600核心板，ZKFinger10.0指纹面部混合识别算法，容量大，识别速度快，摄像头为红外光学夜视探头，适用范围广，不受外界光线的影响，即使在黑暗中也能进行有效识别.该系列已经通过了超过10万面部数据库长达2年的测试,同时该算法也在美国San Jose大学年度测试中名列前矛,在用户舒适度方面获得了最佳评分.iFace采用了中控嵌入式Multi-Bio CPU,主频为630MHZ,可以处理高达1:20000的1:N速度,支持面部/面部+卡/指纹+面部/指纹+面部+卡等多种混合验证方式，符合人体工程学的外观设计，工业设计为德国TGG公司设计,采用了PC材料+蚀纹工艺+镜面工艺,采集比对就如照镜子一般，支持4.3/7寸全触摸TFT，仅有6个状态功能键，其它按键在TFT上全触摸操作。标配TCP/IP通讯方式，支持跨网段、跨网关连接。该系列产品可选配外接定时响铃，后备电池、WIFI、GPRS等功能。该系列中控科技计划发布约28款,覆盖所有应用领域,随着iFace的发布中控科技相信面部识别产业的大工业化时代即将来临,该系列产品将在中控科技新工业园进行大批量生产.中控科技将在全球启动"科技引领未来"的专项宣传。
特点
·符合人体工程学外观设计
·全触摸屏，操作方便，界面简洁时尚
·常用6个功能键，可用户自定义
·红外光学系统，对环境适应能力强，夜间仍可识别
·选配后备电池，外部电源断电情况下仍可工作4－5小时
·标配简单门禁功能，可选配专业门禁功能
·WIFI、GPRS通讯方式选配，免于布线，方便安装
·标配TCP/IP通讯方式，支持跨网段、跨网关连接
·webserver管理模式与PC软件管理模式相结合，更灵活
·可外接定时响铃
·面部、指纹、RFID识别相结合，彻底解决单个生物识别应用的局限性
·ZKFinger10.0指纹面部混合识别算法
·胡须、眼镜、刘海等覆盖物，自然表情、夸张表情均可比对
技术参数
·处理器：Multi-Bio600
·摄像头：高清晰红外摄像头
·显示屏：4.3 英寸触摸屏
·面部识别容量：400张脸
·指纹容量：2000·记录容量：100000条
·后备电池：2000mAh
·通讯方式：TCP/IP, RS232/485
·USB-HOST: 两个USB-HOST接口
·考勤功能：外接定时响铃、夏令时、记录查询、工作代码、短消息
·门禁功能：标配简单门禁功能，可选配专业门禁功能
·其它可选功能：WIFI、GPRS,后备电池，串口打印, Mifare卡, HID卡, iClass卡等
中控iFace302 iFace301在iFace702 iFace701的基础上基本算法较稳定.
抗干扰能力更高更准确识别率.使用中控混和最高的算法。
ZK iface302 face identification device
Introduction:
iFace302 multi-biometric identification time attendance and access control terminal adopts ZKSoftware’s latest ZEM600 platform with ZK Face 7.0 algorithm and large capacity memory. iFace series integrated 630MHz high speed ZK Multi-Bio processor and high definition infrared camera enables user identification in the dark environment. Face and fingerprint multi-biometric identification method will be applicable more widely. All operations of iFace are designed to be performed on the 4.3 inches TFT touch screen. Multi-model communications includes RS232/485, TCP/IP, optional WiFi or GPRS. Optional built-in 2000 mAh battery eliminates the trouble of power-failure.
Features
·Identification methods include Face, Fingerprint/RFID and/or Password
·Elegant ergonomic design
·4.3’’ TFT touch screen is user-friendly and very intuitive
·6 user-defined function keys
·Contact relays for door access control (wires to door strike or 3rd party panel)
·Web-server management software via IE browser
·Optional extendable scheduled-bell
·Infra-red optical system enables user-identification in poorly lit environments
·Optional built-in battery backup provides approx 4 hours continuous operation.
·Optional built-in wireless Wi-Fi or GPRS for wireless communication
·Built-in contacts for 3rd party electric lock, door sensor, alarm, exit button, or bell
·Wiegand Output for connections to 3rd party panels.
Specifications:CPU:ZK Multi-Bio CPU 630 MHz
Display: 4.3 inches TFT touch Screen
Face capacity:400(1:N)
Fingerprint Capacity: 2,000
Logs Capacity:100,000
Camera:High Resolution Infrared Camera
Algorithm Version: ZK Face 7.0
Hardware Platform:ZEM600 Multi-Medium Development Platform
2000mAh backup battery :Optional
Communication: RS232, RS485,TCP/IP
USB-HOST :Two USB-Host
Wireless Wi-Fi :Optional
Time attendance Standard functions:fingerprint, Automatic Status Switch, Self-Service Query, Work Code, T9 input, 9 digit user ID, DLST
Access control interfaces for :3rd party electric lock, door sensor, exit button
Optional Functions: serial printer, Mifare card, Extendable Scheduled-bell, Short Massage, Web-server, GPRS
Power:12v
Identification time: ≤2s
Operating Temperature: 0~45℃
Operating Humidity:20%-80%
Language: English
Weight:1.8kg (3.968lb.)
Dimension: 193.6*165.2*86 mm
Package Size:31cm x 26cm x 13cm
'
