X628plus为3寸彩屏带触摸按键、网络型高性能混合引擎脱机指纹考勤机，外观设计国际化，原为中控科技外销主流机型，为促进中国国内市场发展中控科技决定2009年6月引入中国国内销售。该机根据不同指纹分布（老人、儿童、男人、女人、北方人、南方人、残破指纹等）均有良好的识别性能，有超过5000万人的使用记录，在全球超过40个国家使用历史。可储存2200-8000枚指纹，50000-150000条纪录，无需实时连接计算机，是专门针对需要远距离脱机使用的企事业单位进行指纹考勤而设计的,同时，它还适用于各种只需要准确身份识别的各种场合。指纹考勤机通过RS232或RS485方式与计算机通讯；也可直接使用U盘下载上传，适用于人数在1000-2000人以内的企业,利用该机自代的TCP/IP接口，轻松实现在局域网分散集中式考勤及人力资源解决方案。

产品特点:

· Biokey VX8.0算法根据不同指纹分布（老人、儿童、男人、女人、北方人、南方人、残破指纹等）均有良好的识别性能

·内置强大嵌入式指纹识别模块(ZEM100)，很容易集成到各种系统中.

·支持手指360度识别，易用性能良好

·光学采集器"增强膜"，提高图像质量，接受干，湿手指.

· CMOS自动曝光和智能补偿，增强图像质量

·网格初始化校正图象畸变，保证指纹识别的一致性

·考勤姓名汉字显示，确保考勤数据准确可靠

·标准的TCP/IP通讯协议，可实现跨网段、跨网关联网

· 3寸6万5千色高清彩屏

·新颖的触摸按键

·高速U盘下载

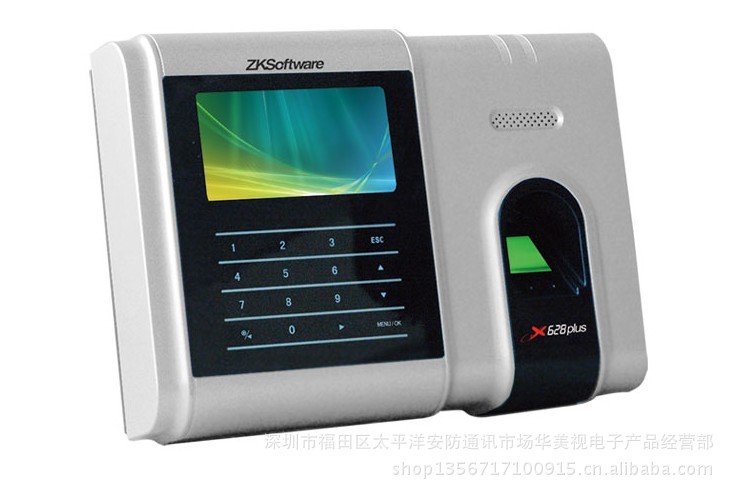

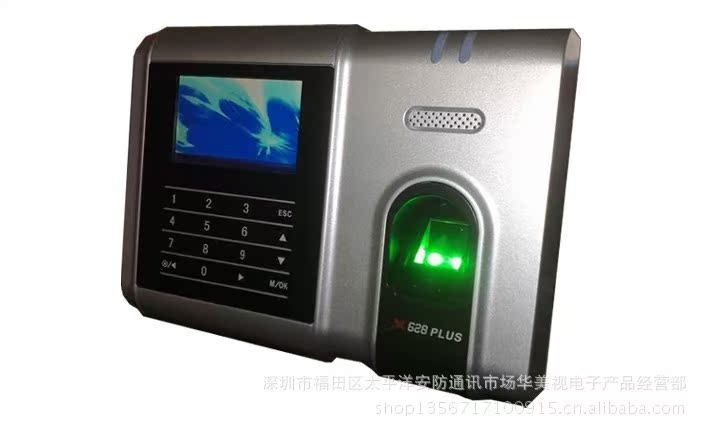

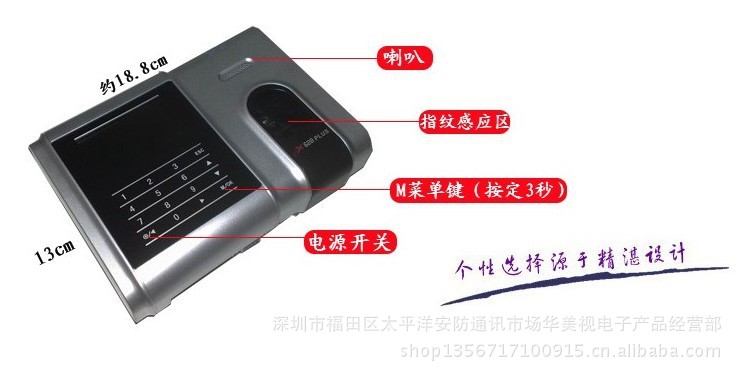

 产品实拍展示：










产品包装展示：

产品规格:

Description:
This is an ZKSoftware innovative biometric fingerprint reader for Time & Attendance applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The product features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality optical fingerprint sensor. The 3"Color TFT can display more information vividly, including fingerprint image quality and verification result etc. TCP/IP communication is standard and make sure the data transmission between terminal and PC can be easily done within several seconds. What\'s more, it adapt the newest Touch Keypads design, and will be your best choice to manage the employees\' attendance records.

Features：

·3 inch Color screen with GUI Interface for ease of use
·ZK Optical Sensor,can identify dry, wet fingers.
·Elegant Touch keypad
· Linux operating system with High-performance
·1 touch a-second user recognition
·Stores 3,000 templates and 100,000 transactions
·Reads Fingerprint and/or PINs
·Optional integrated proximity or smart card reader
·Built-in Serial and Ethernet ports
·TCP/IP supports remote download of the entry data  (by IP forwarding setup in the router)
·Built-in USB port, allows for manual data transfer  when network isn\'t available
·Built in bell scheduling
·Support finger 360 degree identification
·Multiple connection methods to connect to PC -USB Serial Port RS232 or LAN network.
·CMOS Automatic exposure and intelligent compensation,enhanced image quality
·Audio-Visual indications for acceptance and rejection of valid/invalid fingers

Specifications：

Type:Biometric Time Recording

Fingerprint Capacity：3,200 templates

Record Capacity:80,000

LCD Screen:3-inch TFT Color Screen

Hardware Platform:ZEM510

Algorithm Version:ZK Finger v10.0

Communication: RS232/485,TCP/IP, USB-Device, support U disk to download (bottom of the USB cable, U disk to download the side)

Power Supply: DC 5V 2A

Standard Functions:SMS, DLST, Scheduled-bell, Self-Service Query, Automatic Status Switch

Optional Functions:ID/Mifare/HID,USB-host,Webserver,

printer,9 digit user ID

Identification time: ≤1.5s
Operating Temperature: -10- 60℃

Operating Humidity:10%-90%

Sensor: ZK Sensor

Language: English

Weight:1.0kg (2.205lb.)

Dimension:190X142X53mm
Package Size:20cmx 15cm x 10cm (7.87in x 5.91in x 3.94in)
