LED light bulbs with bluetooth

1. Techinicial Data of    LED light bulbs with bluetooth

 a.   Support Mobile: Only IOS Smartphone(with Bluetooth 4.0)

 b. Channel: RGBW

 c. Chips Specification: RGB:5050-1.5W*5,Warm White:2835*10

 d.Light Lumen: Red: 45-75LM,

                              Green: 100-150 LM

                               Blue: 20-50LM

                               Warm White:400-550LM

 e. White Color Temperature: 3000K-3200

 f.Emitting Angle: 120°

g. Working Voltage: AC85V-AC240V 50/60Hz

h.  Power: RGB:<7W,Warm White:<6.5W

i. Power Factor: 0.6

Search “LED Magic Light " in App store by iPhone, download for free and install it.

Following pages show you how to install "LED Magic Light ".

                                                                 MagicLight Instruction

A .Search“Magic LED Light"in App store by iPhone, download for free and install it.

B.Download it by scanning QR code：

C.Directly down load it on site: https://itunes.apple.com/us/app/magic-led-light/id667339109?ls=1&mt=8

Following pages show you how to install"Magic LED Light".

Pls connect RGB/RGBW bluetooth led flood light huizhuo lighting with power supply by correct connection.Then open phone’s Bluetooth service.If your Bluetooth service is off ,Phone will antumatic pop-up a interface ”Turn On Bluetooth to Allow “Magic Light “to Connect to Accessories.Choose “Settings” first ,then “on “bluetooth .

3.Software Operating  of    LED light bulbs with bluetooth

a.Preview:

Though you bulb haven’t connected, you can open operation interfacel by preview mode.

b.Reset:

Rescan bulbs.

c.RGB Vision

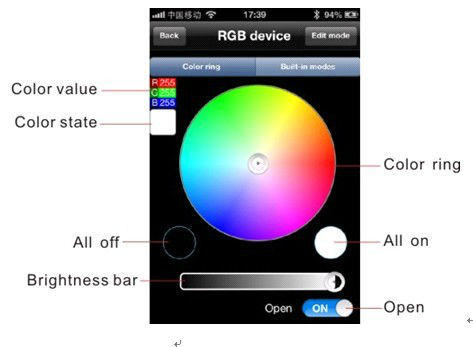

4. How to use   LED light bulbs with bluetooth

1)      Color ring: Press the color ring, choose any color as you like.The color will shows your choice.

2)      All off:darkest of three channels(R,G,B)

3)      All on:brightest of three channels(R,G,B)

4)      Brightness bar: Sliding to the left ,light wil be more and more darkest;Sliding to the right,light will be more and more bright.

5)      Open: ON/OFF.

6)      20 built-in modes:

Press M-/M+ to choose modes, you can adjust the speed at the same time.

Total 31 grades of each mode:"1" is the slowest grade;"31" is the fastest grade.

Following are 20 built-in modes of RGB Control:

20 Built-in Modes

5.How to edit mode of    LED light bulbs with bluetooth
