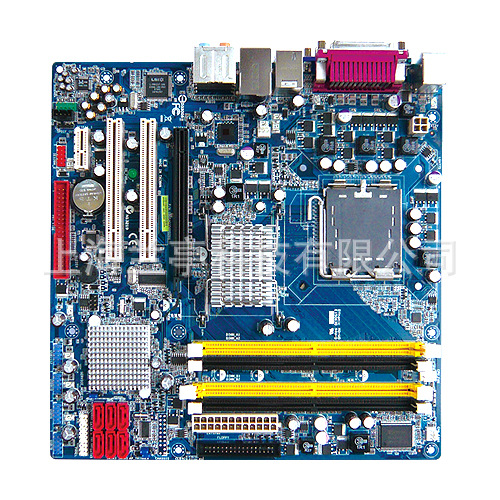

Intel® Q35 LGA775 Core™ 2 Quad Micro ATX Motherboard
Features
- Supports 45nm Intel® Core™2 Quad series Processors
- Intel® Q35 / ICH9DO Chipset
- Four DIMMs up to 8 GB 2-CH DDR2 800 SDRAM, non-ECC
- Intel® Graphics Media Accelerator 3100
- Realtek® ALC888 supporting 7.1-CH Multiple Audio Streams
- Intel® 82566DM PCI-E Gigabit LAN
- 1 PCIex16, 1 PCIex1, 2 PCI 2.3
- 1 COM, 12 USB, 6 SATA
- LSI FW3227 Supports 2 IEEE1394 ports
- Onboard TPM 9635TT 1.2
- 6 SATA II with Intel® Matrix Storage Manager Support
Specifications
System
|
CPU | LGA775 Socket for Intel® Core™ 2 Quad/ Core™ 2 Duo Processors with 45nm Process Technology | BIOS | AMI 4MB SPI BIOS | System Chipset | Intel® 82Q35/ 82801IDO (ICH9DO) | I/O Chip | Winbond W83627DHG-A | System Memory | our 240-pin DIMM Sockets Support Up to 8GB Dual Channel DDR2 800/ 667 SDRAM | H/W Status Monitor | Monitoring Temperatures, Voltages and Fan Status with Auto Throttling Control | Expansion | 1 PCIex16, 1 PCIex1, 2 PCI (Rev. 2.3 Compliant) | TPM | TPM1.2 (Infineon TPM Chip 9635 TT 1.2 on Board) | RAID | 6 SATA II with RAID 0, 1, 5 and 10 | S3/ S4 | Yes | SmartFan Control | Yes , Support 3 Modes (Silent/ Optimal/ Performance) |
|
I/O
|

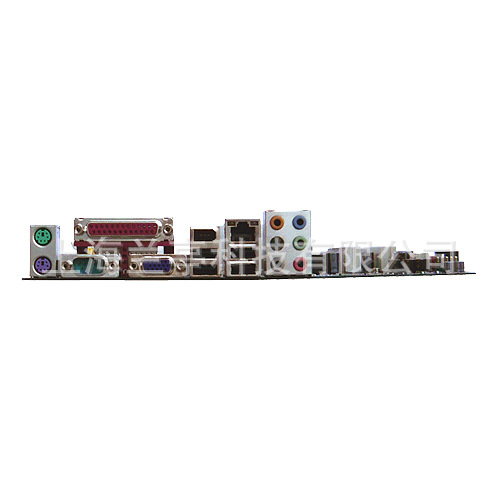

MIO | 1 x EIDE 66/100/133, 6 x SATA II, 1 x LPT, 1 x RS-232, 1x K/B, 1 x Mouse, 1 x FDD | USB | 12 x USB 2.0 | IEEE 1394 | LSI FW3227 Supports 2 IEEE1394 Ports |
|
Display
|
Chipset | Intel® Q35 GMCH Integrated Graphics Media | Display Memory | Intel® DVMT 4.0 Supports Up to 256MB Shared Video Memory | Max. Resolution | 2048 x 1536 @ 32bpp (75Hz) | VGA | Yes, Onboard GMA 3100 | LVDS | Through ADD2 LVDS Card (Customized BIOS) | DVI | Through ADD2 DVI Card | HDMI | Through ADD2 HDMI Card | Secondary VGA | Through ADD2 VGA Card |
|
Audio
|
Audio Codec | Realtek ALC888 High-definition Audio Codec Supports 7.1+2-CH Independent Audio Streams | Audio Interface | Mic-in, Line-in, CD Audio-in, Line-out |
|
Ethernet
|
LAN | Intel® 82566DM Gigabit Ethernet |
|
Mechanical & Environmental
|
Power Type | ATX | Operating Temperature | 0 ~ 60°C (32 ~ 140°F) | Storage Temperature | -40 ~ 75°C (-40 ~ 167°F) | Operating Humidity | 0% ~ 90% Relative Humidity, Non-condensing | Size (L x W) | .6” x 9.6” (243.84mm x 243.84mm) | Weight | 0.88lbs (0.4Kg) |
|
Order Infomation
ERX-Q35-A1R
Intel® Q35 LGA775 Core™2 Quad Micro ATX Motherboard with VGA, Audio, Gb LAN, 1 COM, 12 USB, 1 PCI-E x16, PCI-Ex1, 2 PCI, 2 IEEE1394 & TPM w/ SATA cable, IDE cable, Bracket, CD driver
