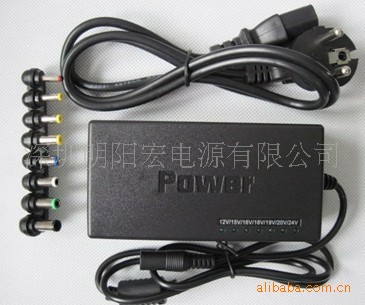

本通用型电源适配器输出功率为96W.可适用于不同厂商，不同型号的多款笔记本电脑，其中包括Samsung，Sony，Toshiba,Acer,BenQ,Lenovo,Compaq，Dell，HP,IBM和其他众多品牌。此款充电器有7档电压调节开关，并带有8个可以简易更换的DC插头，如需用在不同品牌不同型号的笔记本上，仅需要参照笔记本输入要求调整电压和更换匹配的DC插头即可。8个DC头规格：6.0*1.0mm  6.3*3.0mm  5.5*2.5mm  5.5*2.1mm  5.5*1.7mm  4.8*1.7mm  4.0*1.7mm  3.5*1.35mm.

功能特性：

产品型号：    MYH-AC96W
输出电压：    DC15/16/18/19/20/22/24v
输出电流：    DC15/16/18/19/20V / 22V/24V 4A
输入电压：    AC110-240V  50/60Hz
电压适应范围：AC110-260V  47/63Hz
最大输入电流：1.8A
最小输入电流：0.1A
输出功率：    96W
功率因数：    >88% (TYP)
过载保护：    有
过压保护：    有
短路保护：    有
载波干扰：    500mV
线路损耗：    1%
空载损耗：    1%
重量：        430g
包装：        彩盒  吸塑
认证信息：    CE  FCC  ROHS
保修时限：    1 年
最小起定量：  100PCS

Model:LD-AC96W

General Description:

This model is an universal switching-mode power supply, main power for laptop,  charge mobile equipment .such as mobile telephone .

LD-AC70W operation at input AC 110V to 240V 47-63Hz, Output DC 7 voltages: 12V/15V/16V/18V/19V/20V/24V, output current4Amp max96 Wattmax, with protection functions: Overload protection, Short Circuit Protection, power supply by mains supply. With 8 tips connecter to suit to almost laptops, Select output voltage to suit to laptop and make sure the polarity of tips connect correct before use

Power Source: mains supply

Use your outlets to plug in at home or office or in the hotel

Select a tip for your laptop , then adjust voltage to suit to your laptop (laptop voltage marked on the brand of laptop)

Note: Not every laptop is created equal with that in mind ,EWAD13065 supports most major laptop brands

1. Electric Characteristics:

2.Weight:440g

3. Case Size: 117.7mm*58.7mm*40.0mm

4. Normal Operating Temperature and Humidity:

  4.1 Operating Temperature: 0℃to 40℃

  4.2 Humidity: 20% to 80%

5. Storage Temperature and Humidity:

  5.1 Storage Temperature: -10℃to 70℃

  5.2 Humidity: 10% to 90%
