RG50/40D砂浆泵是一种单缸单作用活塞式砂浆输送泵，具有结构紧凑、工作可靠、故障率低、清理及维修方便及泵送压力高等优点。主要用于隧道开凿与维护、矿井工程、水电建设、桥梁建设和高层建筑的基础处理工程以及各类地下工程等的砂浆输送和灌注。推荐使用介质：灰浆、砂浆等小颗粒粘稠流体物料。

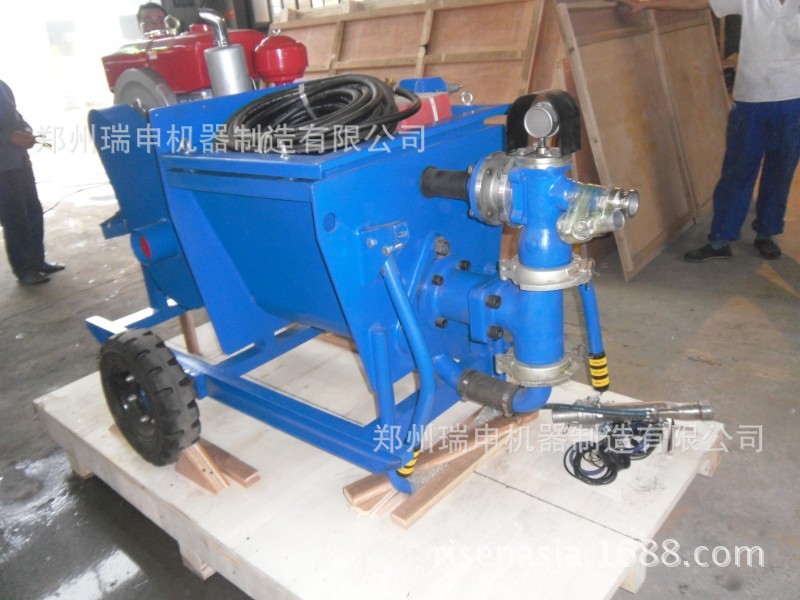

RG50-40D MORTAR PUMPwith single cylinder and double acting is widely used for its convenient maintenance, high working pressure and high efficiency, working reliability, compact structure etc. it can be used not only for grouting cement mortar and sand mortar, combined with accessories such as compressor and spraying gun, it is also ideal equipment applied in spraying. It is widely used for grouting in mine gallery, rail and road tunnel, hydropower construction, slope consolidation, underground engineering, subway and civil engineering etc.

技术参数Technology Description：

缸径Cylinder Dia.:               90 mm

排量Output:                      50 L/min

工作压力Pressure:                4 MPa

活塞行程Piston stroke:           85 mm

往复次数Piston Speed:            95 次/min

吸口直径Inlet diameter:          75 mm

出口直径Outlet diameter:         50 mm

最大骨料粒径Max.Aggregate.size:  6 mm

最大灰砂比Water cement ratio:    1:3

外形尺寸Dimensions:              1610×1024×900 mm

重量Weight:                      300 kg

驱动功率Power unit:         10hp（Diesel）
