High Performance PCB Vacuum Skin Packaging Machine, Skin Pack Machine
高性能电路板真空贴体包装机,线路板真空贴体机,贴体包装机
- Over 10 Years\' Expertise is the Guarrantee
-峰源10余年制造经验 铸就完美品质
Dongguan Promivision Packaging Manufactoryhas been specialized in manufacturing high qualityskin packaging films, surlyn film,PCB vacuum skin packaging machines, die cutting machine, porous skin pack boards, skin pack glue, etc. We are one of the first in China committed to generalizing the application ofskin packaging, as the leading player in the sector for 13 years. Our high quality high performance products have penetrated international market successfully. Ourskin packaging filmscomply with FDA, SGS, ROHS regulations, and ourskin packaging machinesare CE certified.
Promivision PCB Skin Pack Machines Specifications Sheet:
| Model No. | PV-390 (Economical) | PV-5540 (Semi-auto) | PV-4560 (Automatic) | PV-5580 (Automatic) |
| Working Area | L54*W39*H14cm | L40*W55*H14cm | L60 * W45 *H18CM | L80*W55*H18cm |
Film Width | 450-460m/m(18”) | 609-615m/m(24”) | 500-510mm | 609-615m/m(24”) |
Frame Height | Max 19cm | Max 19cm | Max. 23CM | Max 23cm |
Heater | 6KW | 4.5KW | 6KW | 11.7KW |
Vacuum Pump | 1HP | 2HP | 4HP | 4HP |
Speed | 1-3cycle/min | 2-4cycle/min | 2-4cycle/min | 3-4cycle/min |
Power | 380V,3PH,50/60HZ | 220V,1PH,50/60HZ | 220V,1PH,50/60HZ | 380V,3PH,50/60HZ |
Dimension LxWxH | 100*90*122CM | 131*77*130CM | 164*120*130CM | 225*153*164CM |
Economical PCB Skin Packaging Machine
Model No.: PV-390

Specification:
Working Area | L540*W390*H140m/m |
Film Width Applied | 450~460m/m(18") |
Frame Height | Max.23CM |
Heater | 6KW |
Vacuum Pump | 1HP, America Made vacuum pump with strong displacement |
Speed | 3-4cycles/min |
Power | 220V 1PH 50/60HZ, 380V, 3PH, 50/60HZ |
Machine Size | L70*W90*H122CM |
Main Features:
1. In-feed-out-feed direction: Front-in, Right-out.
(Note: As some illegal company has plagiarized our copyright advertising material, please make sure about the authentic supplier when choosing).
Semi-Automatic PCB Skin Packing Machine
Model No.: PV-5540

Specification:
Working Area | L400*W550*H180m/m |
Film Width Applied | 610m/m(24") |
Frame Height | Max.23CM |
Heater | 4.5KW |
Vacuum Pump | 2HP, America Made vacuum pump with strong displacement |
Speed | 3-4cycles/min |
Power | 220V 1PH 50/60HZ |
Machine Size | L131*W77*H130CM |
Main Features:
1. In-feed-out-feed direction: Front-in, Front-out.
2. The in-feed out-feed rollers are reinforced stainless rollers with bearings built-in, so as to make the in-feed out-feed movement quiet, smooth and easy.
2. Moveable heater oven with constant heating system for faster cycling time.
3. Far infrared tubular heating elements are arranged in a special pattern to deliver even heat distribution for best packaging performance and less production scraps..
4. High quality genuine components imported from Taiwan, Japan, Korea to ensure reliable machine functioning and performance.
5. USA made vacuum pump adopted to deliver strong vacuum displacement with quietness.
6.It is designed to be used in line with assembly lines for enhance efficiency.
7. Other special sizes can be tailor-made upon request.
(Note: As some illegal company has plagiarized our copyright advertising material, please make sure about the authentic supplier when choosing).
Automatic PCB Skin Pack Machine
Model No.: PV-5580

Specification:
Working Area | L800*W550*H180m/m |
Film Width Applied | 610m/m(24") |
Frame Height | Max.23CM |
Heater | 18KW |
Vacuum Pump | 4HP, America Made vacuum pump with strong displacement |
Speed | 3-4cycles/min |
Power | 380V 3PH 50/60HZ |
Machine Size | 225*W153*H164CM |
Main Features:
1. In-feed-out-feed direction: Two alternatives: A) right-in-right-out , B) left-in-right-out.
2. The in-feed out-feed rollers are reinforced stainless steel rollers with bearings built-in, so as to make the in-feed out-feed movement quiet, smooth and easy.
2. Special safety cover is mounted over heater oven and heat-cut blade for operator security.
3. Moveable heater oven with constant heating system for faster cycling time.
4. Far infrared tubular heating elements are arranged in a special pattern to deliver even heat distribution for best packaging performance and less production scraps..
5. High quality genuine components imported from Taiwan, Japan, Korea to ensure reliable machine functioning and performance.
6. USA made vacuum pump adopted to deliver strong vacuum displacement with superior quietness.
7. The working area is two times larger than model PV-390 and PV-5540, for enhanced packaging efficiency and less production loss.
8. It is designed to use in line with assembly lines for enhanced efficiency.
9. Other standard working area includes 66 X 80 CM, 80 X 80 CM, 90 X 90 CM.
10. Other special sizes can be tailor-made upon request.
(Note: As some illegal company has plagiarized our copyright advertising material, please make sure about the authentic supplier when choosing).

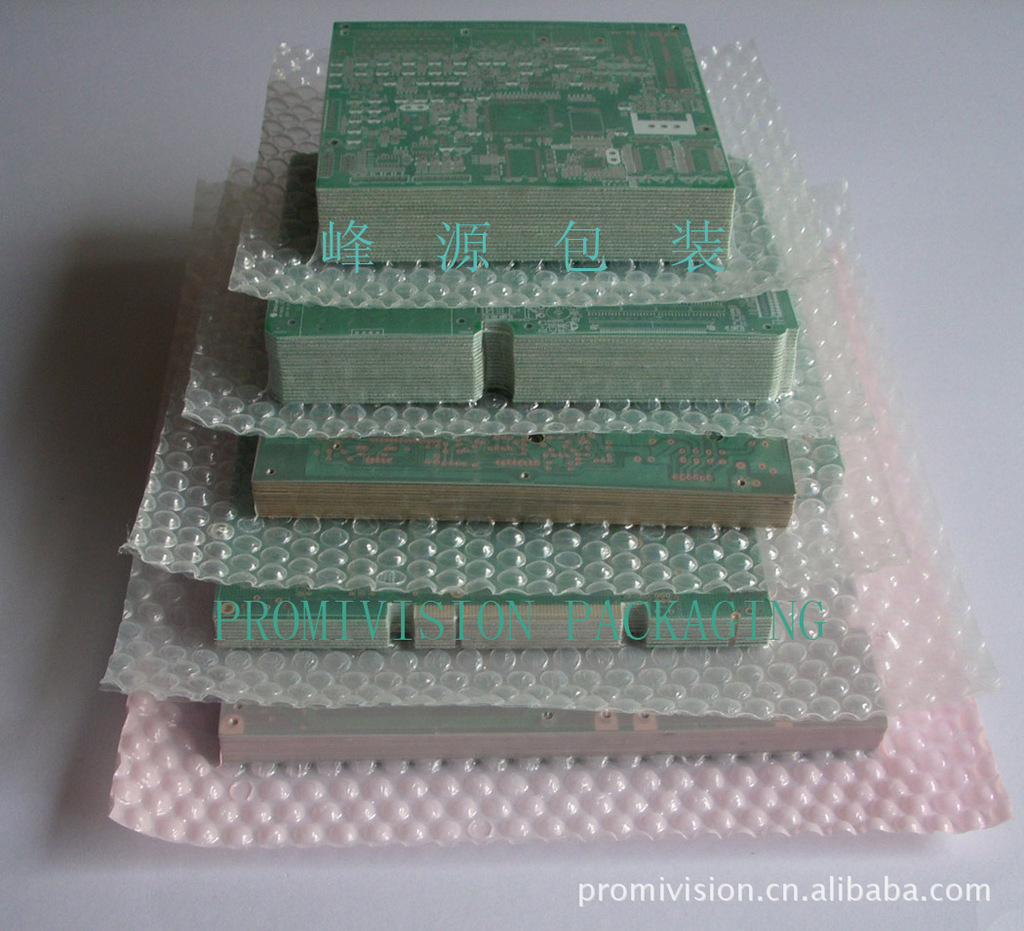

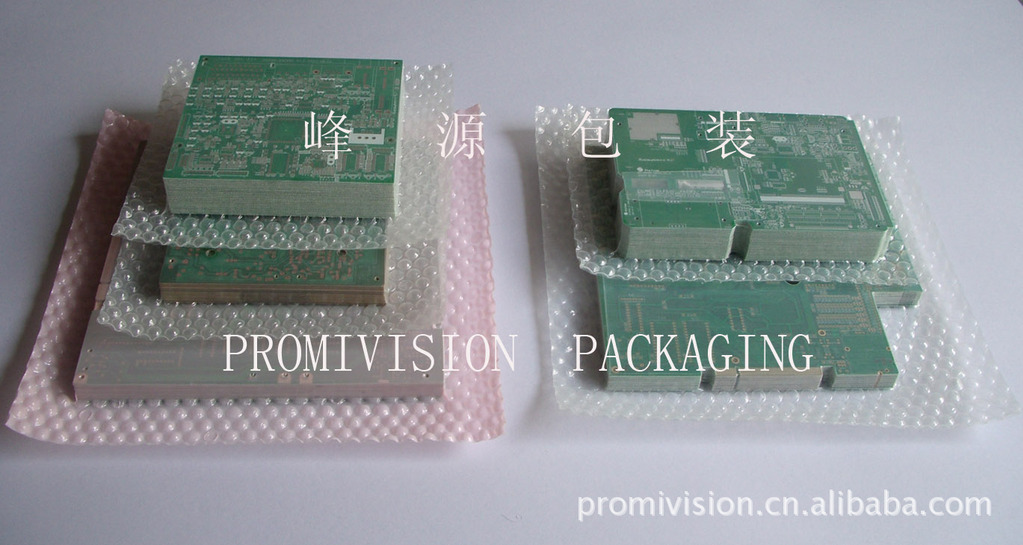

电路板(线路板)真空贴体包装之优点:
作为中国贴体包装最早的推广和领航者之一,东莞峰源包装,十余年坚持贴体包装机和贴体包装膜、沙林膜的研发制造,让顾客在使用贴体包装时有更多更灵活的选择,并在本公司专业的销售顾问的指导下,选择最经济高效的贴体机材组合,为客户创造最大的经济效益。
PassionateFor Skin Packaging
专业+进取+热情饱 醮贴体包装之奇葩
We Up-lift Aesthetics of Skin Packaging
峰源致力于提升贴体包装美学价值
'
