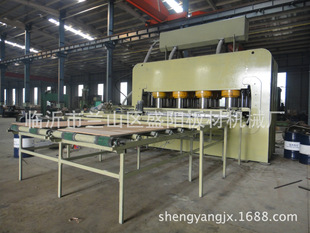

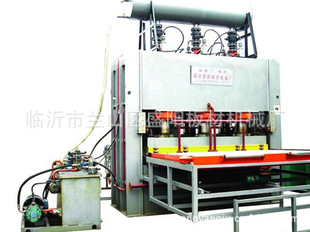

| 专业制造短周期快速贴面热压机 |
此模板由精准推广王提供,我也要免费出现在这里 |

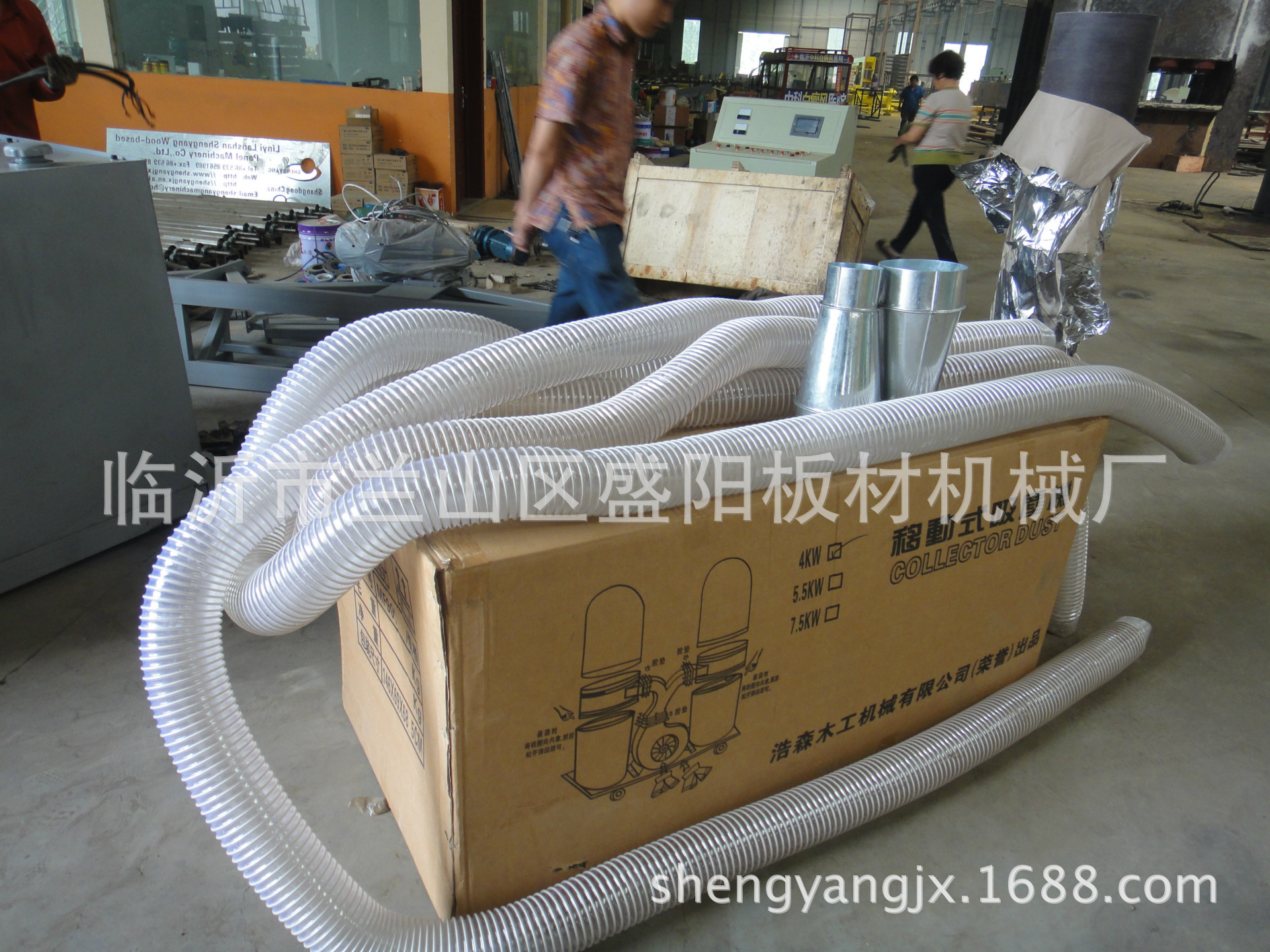

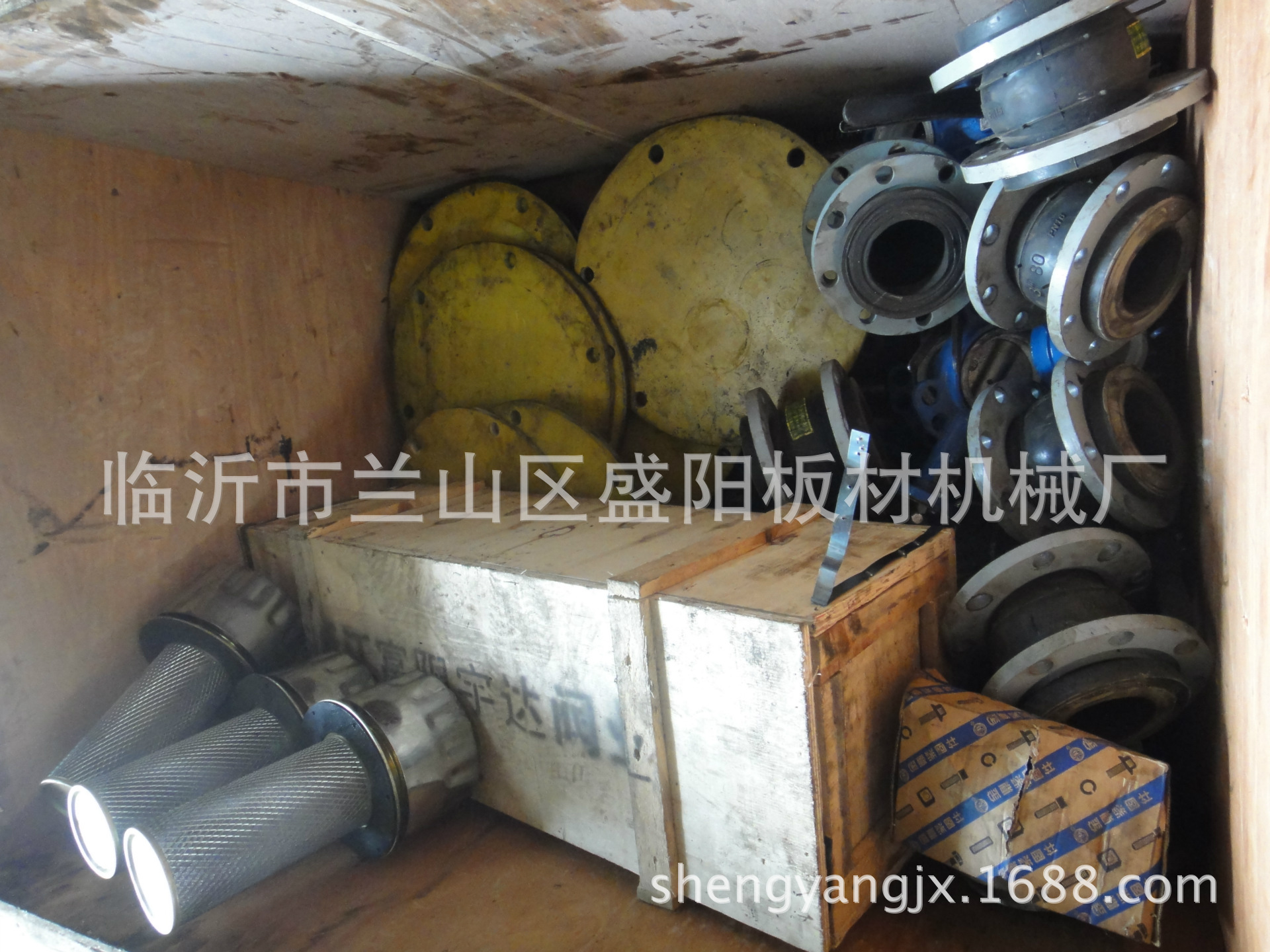

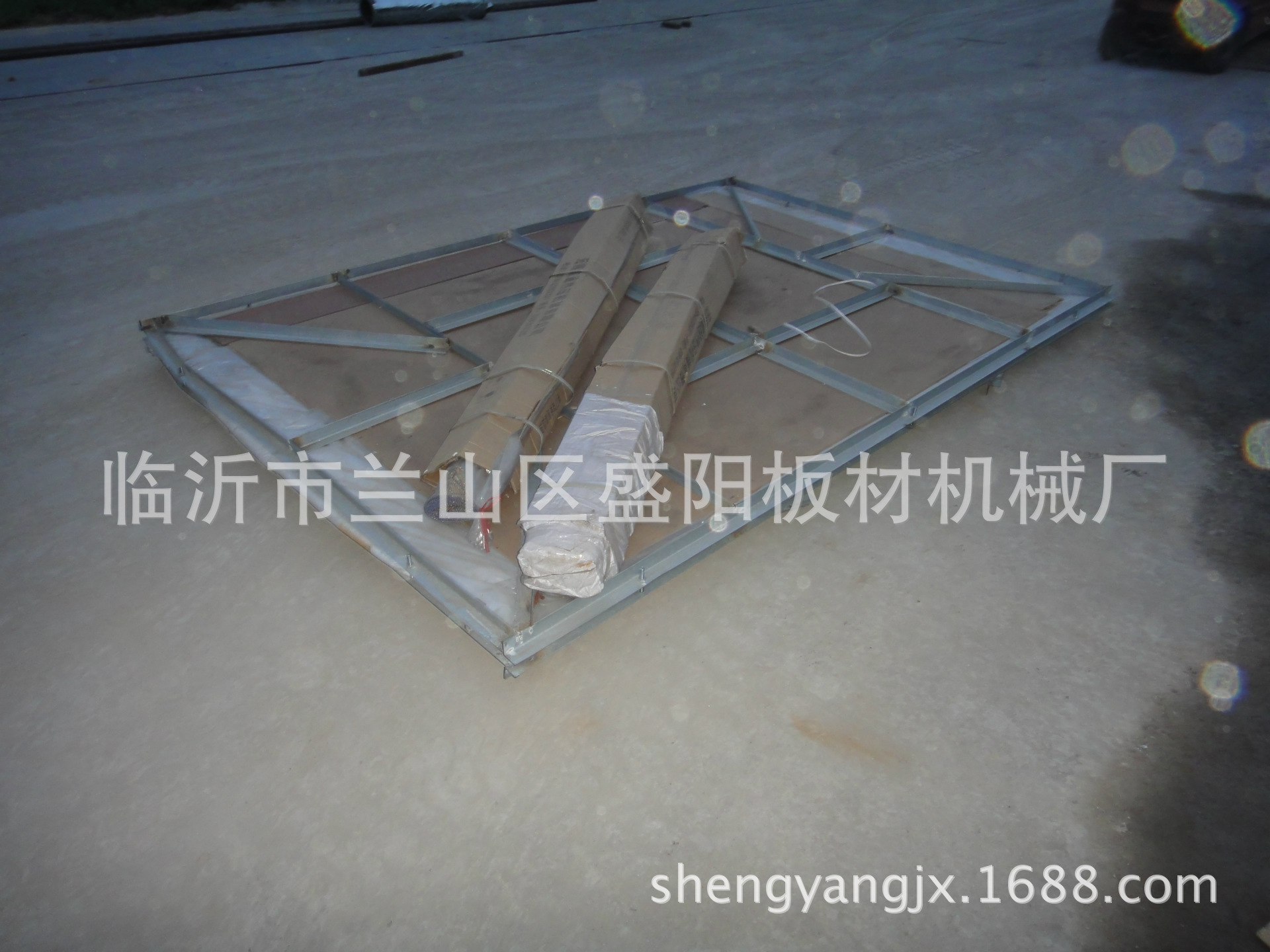

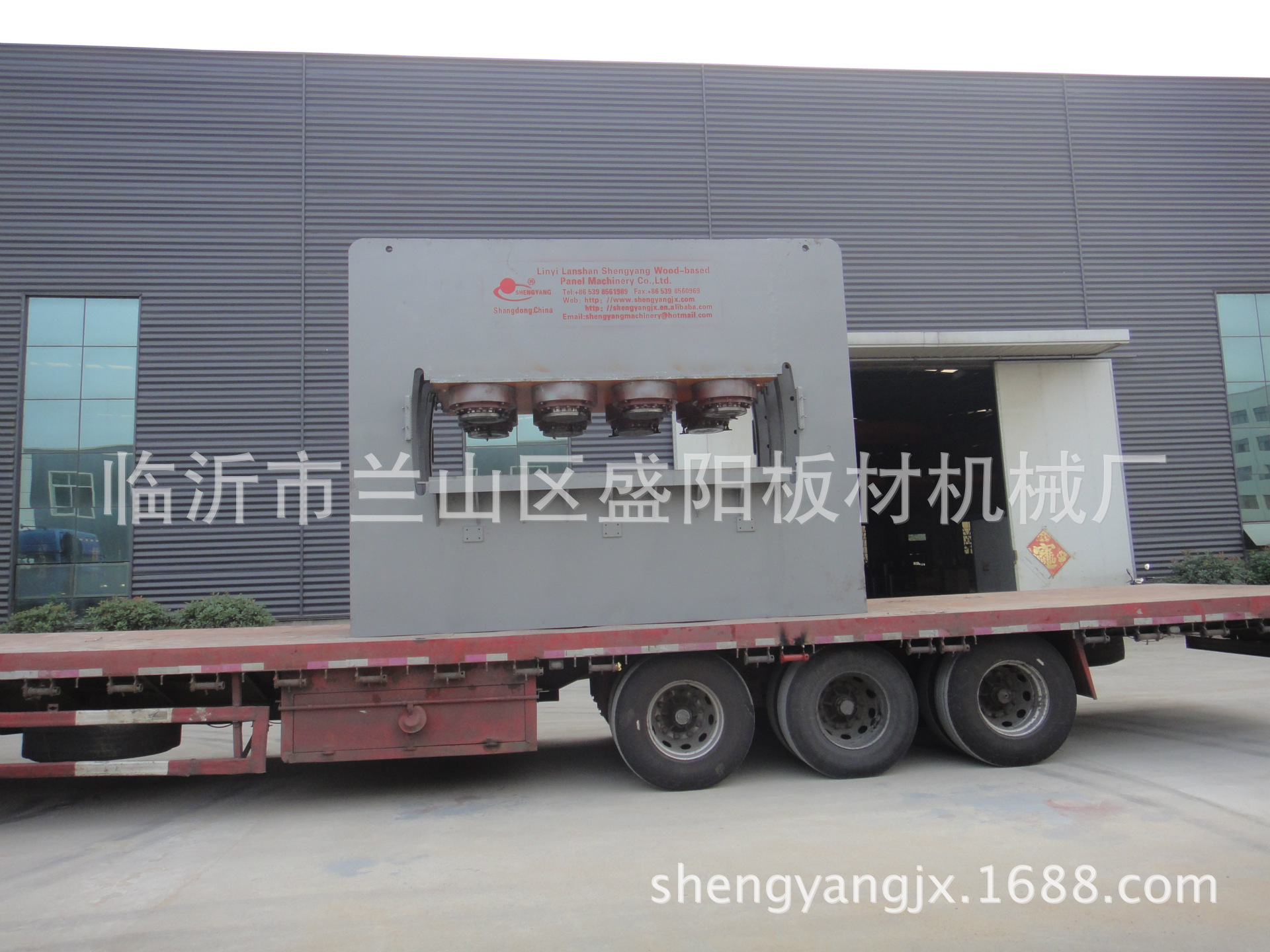

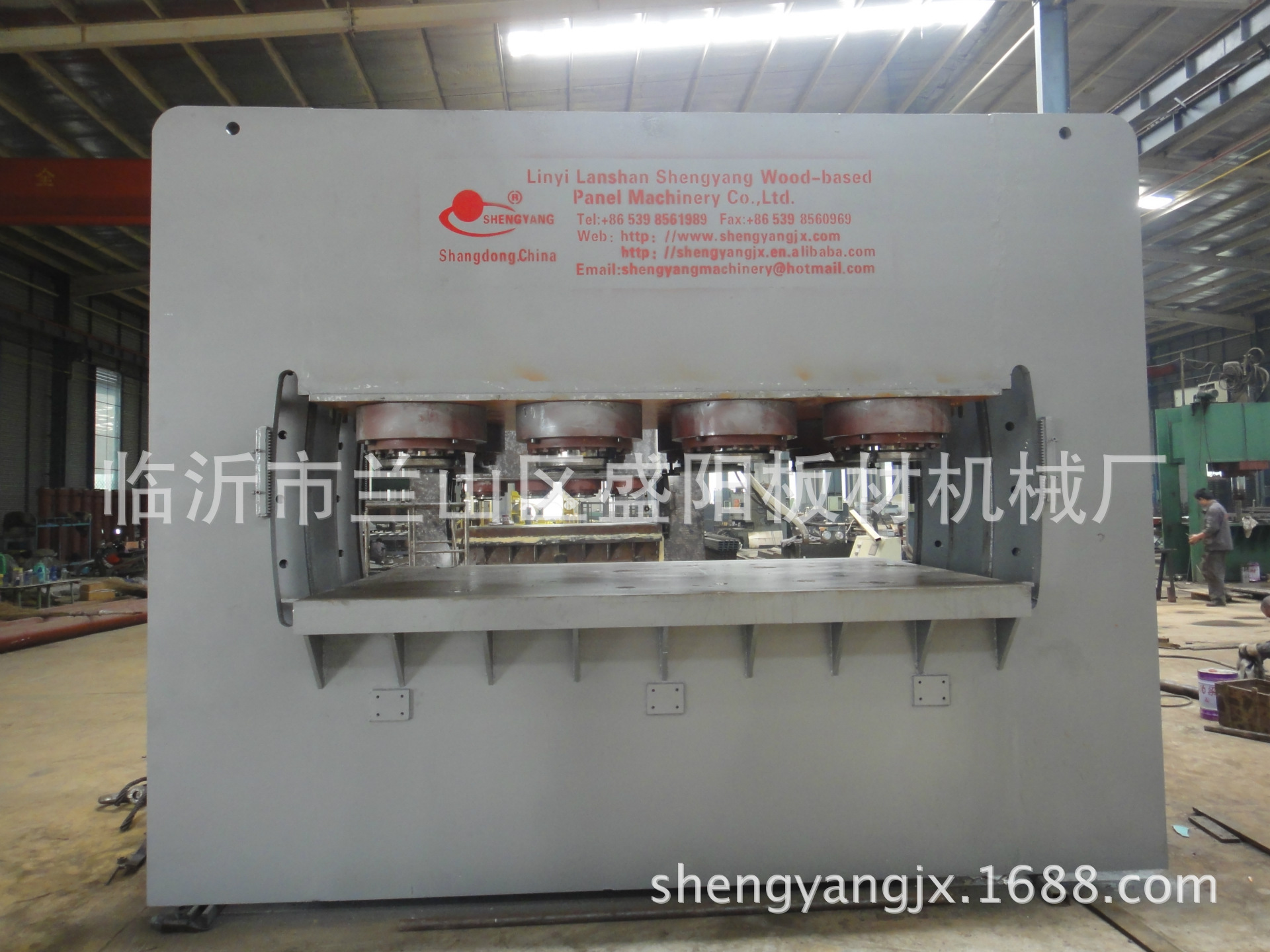

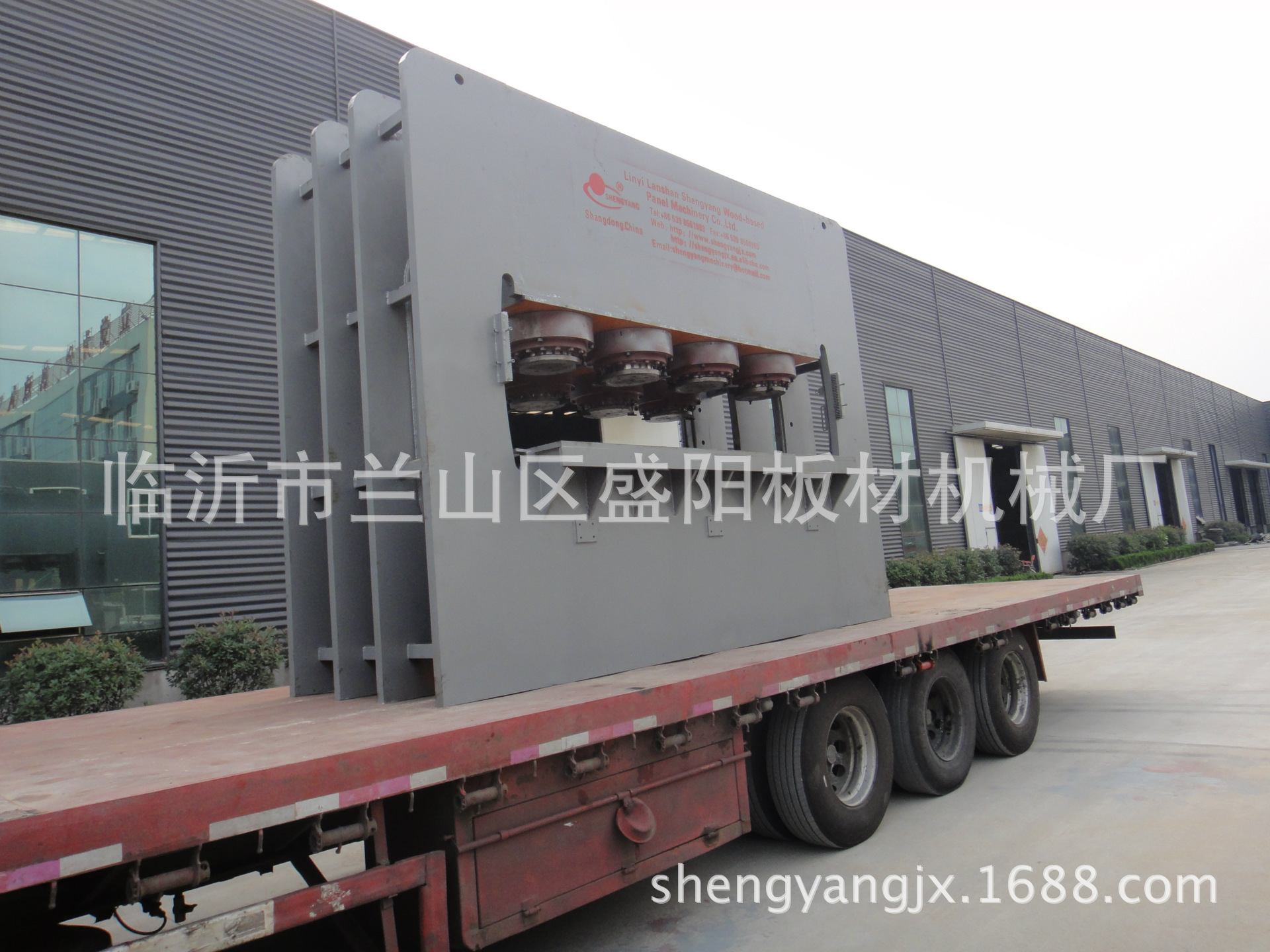

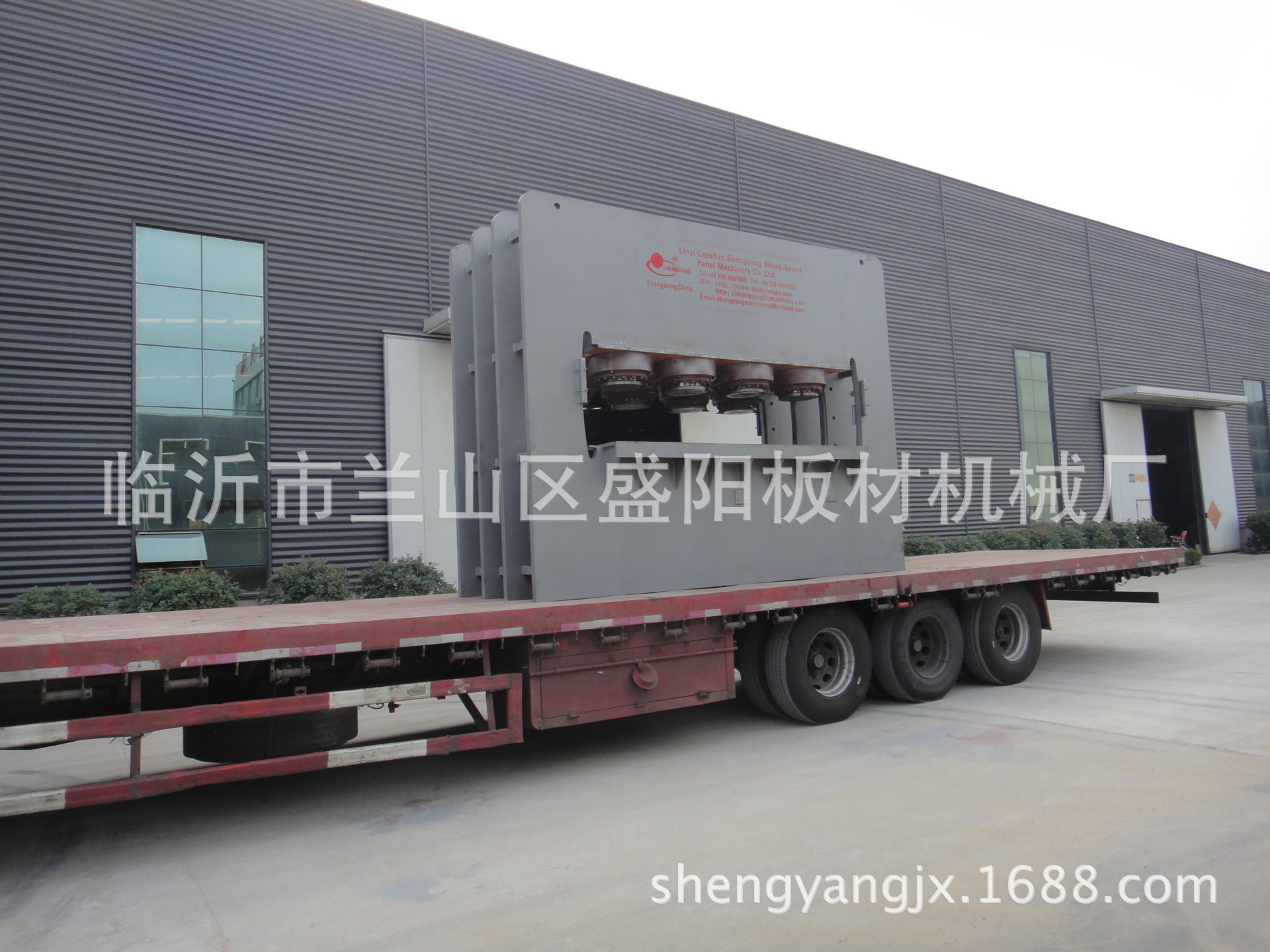

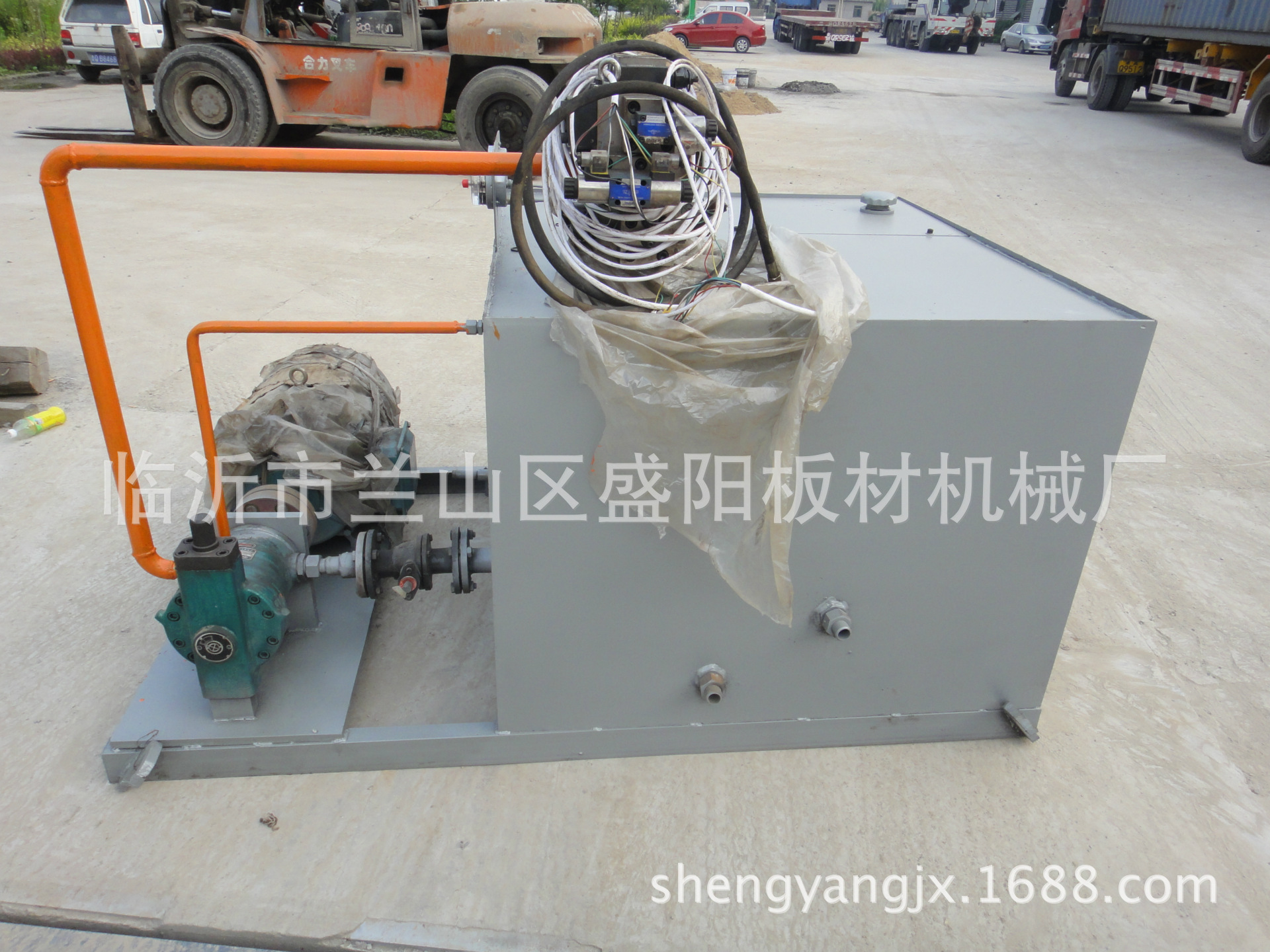

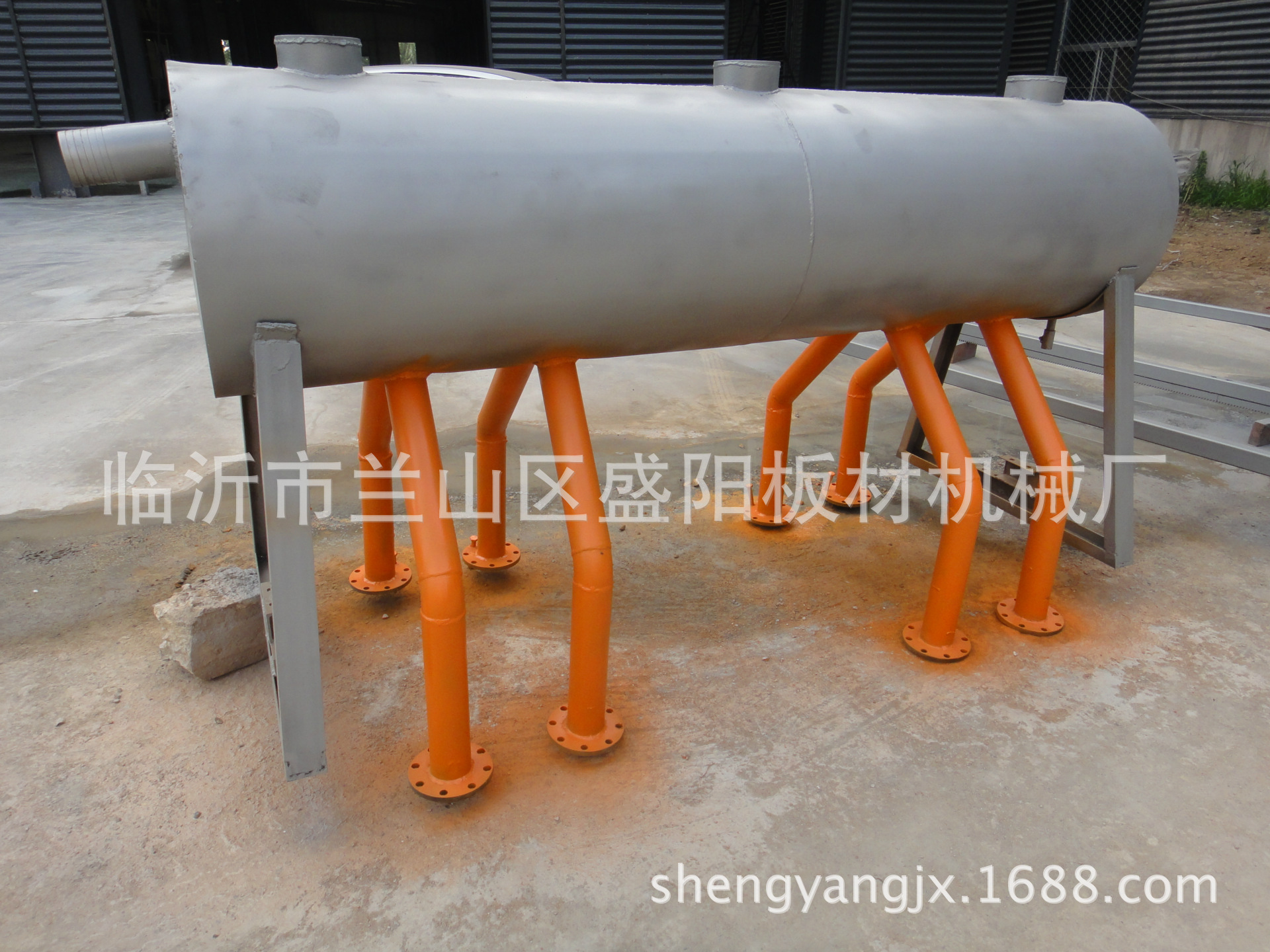

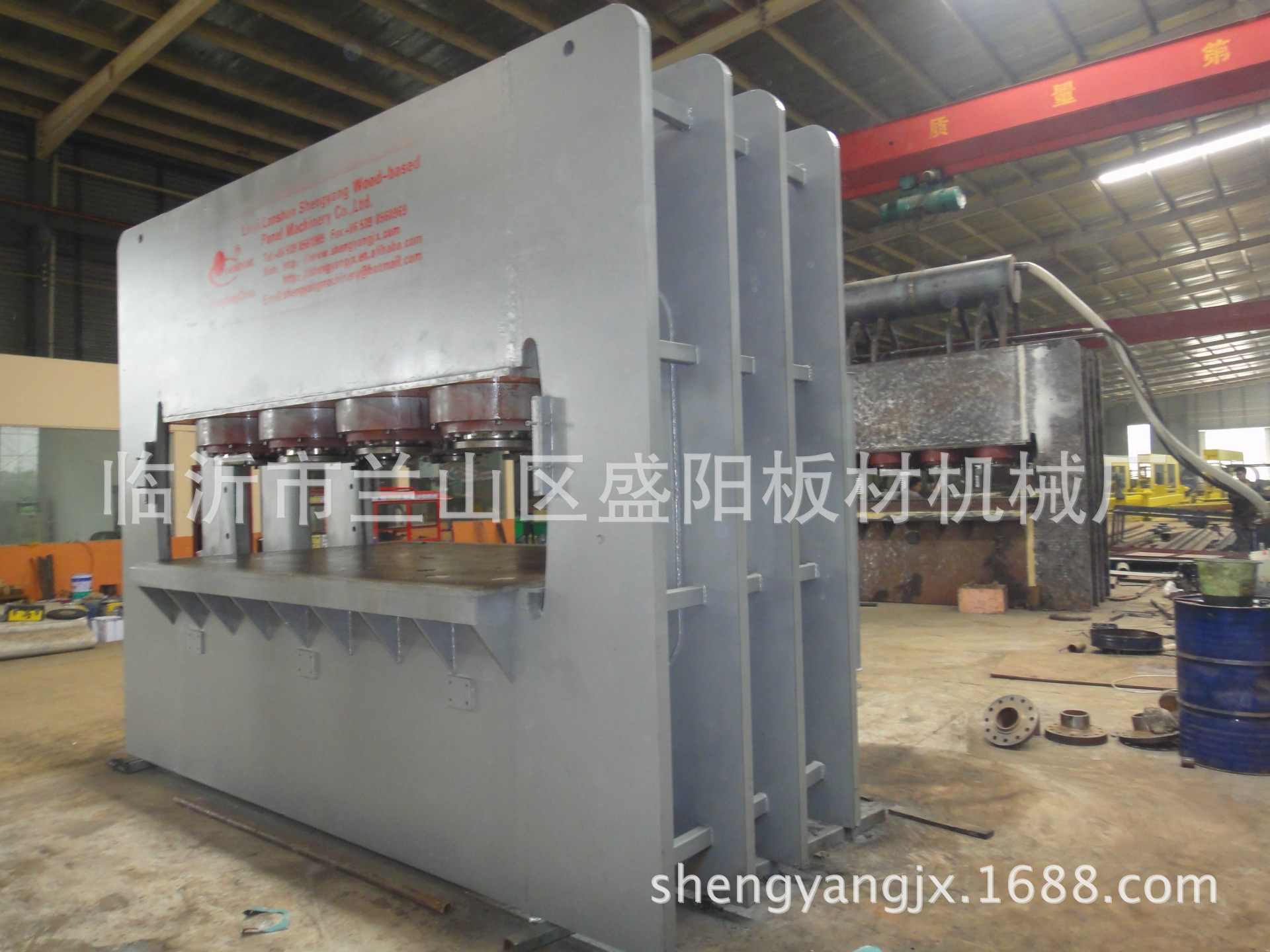

客户须知: (注:以上压机图片均加工实景拍摄)
生意诚为本,经商先做人。
— —盛阳精神
盛阳机械生产的贴面热压机,广泛应用于木材加工,建材装潢等行业,适用于刨花板、中纤板、三聚氰胺浸渍纸的贴面加工和高密度强化地板三氧化铝耐磨纸的纸面加工。规格有4×8英尺、4×9英尺、5×8英尺、5×9英尺、6×8英尺、6×9英尺、7×9英尺、6×12英尺等各种短周期贴面热压机,型号包含SY-1200T、SY-1400T、SY-1600T、SY-1800T、SY-2000T、SY-2400T、SY-2800T等大吨位贴面热压机。
经过多年的研究与实验,我厂成功研发制造了新一代短周期贴面热压机流水线,具体生产速度高、贴面质量好、性能稳定、运行平稳、操作简便、机电一体化等优点。实现了自动进出板、自动刮边、自动堆板、半自动检板等功能,拥有多种生产方案可供客户自由选择,普遍适用于各类强化地板生产线和装饰板生产线,深受中东及东南亚等国家和地区的好评。

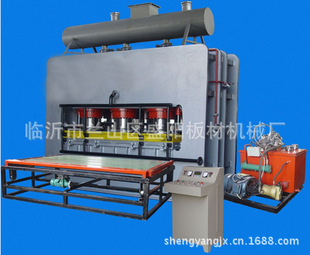

Short-cycle lamination hot press
Shengyang Machinery produce all kinds of hot pressing machine, widely used in wood processing, building materials and decoration...etc, it is suitable for the veneered processing of particle board, MDF, melamine impregnated paper and high density laminated flooring ACP wear-resisting paper.Variety specification includes 4*8’,4*9’,5*8’,5*9’,6*8’,6*9’,7*9’,6*12’...etc. Variety models includes SY-1200T, SY-14000T, SY-1600T, SY-1800T, SY-2000T, SY-2400T, SY-2800T series lamination hot pressing machine.
Through many years’researches and experiments, new-generation of short cycle lamination hot pressing machine was developed and manufactured, with production of high speed veneer of good quality, stable performance, smooth and simple operation, electromechanical integration...etc. Besides, this line achieve fast veneer automatic access panels, automatic trimming edge, automatic stock board, semi-automatic inspection panels and other functions, and was generally applicable to all types of laminate flooring production lines and decorative plate production line, which was also supported by countries and regions of Middle East and Southeast Asia.
| Character | Nominal pressure | End panel size | Max pressure of | Main oil cylinder | |
| Model | (KN) | (mm) | work piece (kg/cm2) | (diameter x pcs) | |
| YX900 | 4x8 ft | 9000 | 1220 x 2440 | 30.2 | φ280 x 6 |
| YX1200 | 4x8 ft | 12000 | 1220 x 2440 | 40.3 | φ320 x 6 |
| YX1400 | 4x8 ft | 14000 | 1220 x 2440 | 47 | φ340 x 6 |
| 5x8 ft | 14000 | 1550 x 2440 | 37 | φ340 x 6 | |
| 6x8 ft | 14000 | 1830 x 2440 | 31.3 | φ340 x 6 | |
| YX1600 | 4x8 ft | 16000 | 1220 x 2440 | 30.2 | φ320 x 8 |
| 6x8 ft | 16000 | 1830 x 2440 | 35.8 | φ320 x 8 | |
| 6x9 ft | 16000 | 1830 x 2750 | 31.7 | φ320 x 8 | |
| 7x9 ft | 16000 | 2100 x 2750 | 27.7 | φ320 x 8 | |
| YX2000 | 4x8 ft | 20000 | 1220 x 2440 | 67.1 | φ420 x 6 |
| 6x9 ft | 20000 | 1830 x 2750 | 39.7 | φ420 x 6 | |
| 7x9 ft | 20000 | 2100 x 2750 | 34.6 | φ420 x 6 | |
| YX2400 | 4x8 ft | 24000 | 1220 x 2440 | 80.6 | φ400 x 8 |
| 6x9 ft | 24000 | 1830 x 2750 | 47.6 | φ400 x 8 | |
| 7x9 ft | 24000 | 2100 x 2750 | 41.5 | φ400 x 8 | |
| 6x12ft | 24000 | 1830 x 3660 | 35.8 | φ400 x 8 | |
| YX2800 | 4x8 ft | 28000 | 1220 x 2440 | 94 | φ420 x 8 |

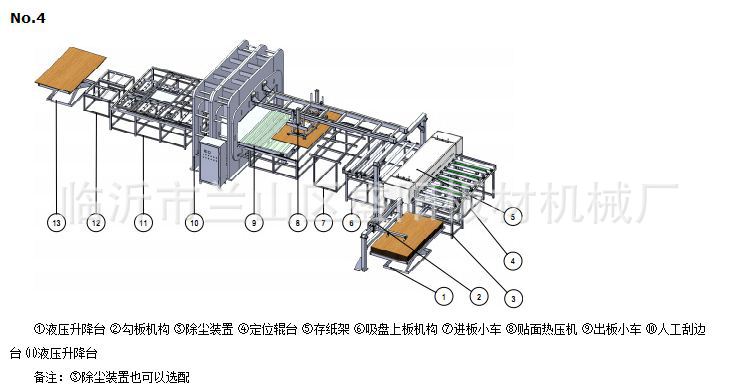

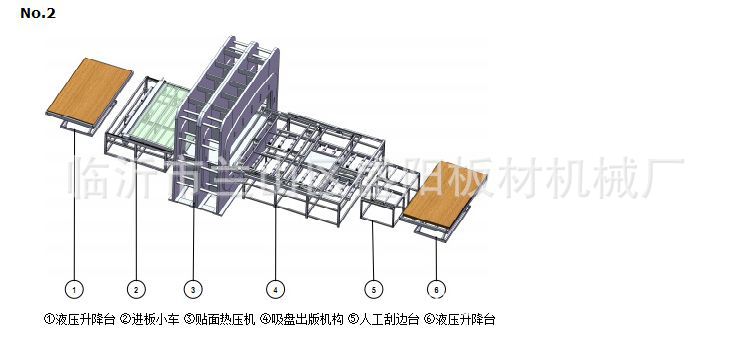

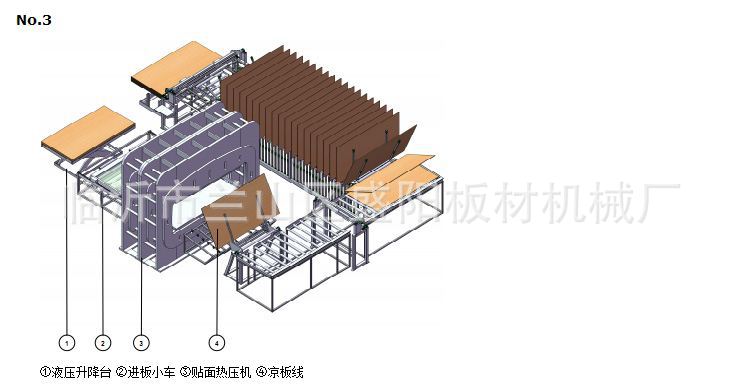

4×8尺自动短周期热压机贴面生产线工艺流程
4×8 automatic short cycle lamination hot press veneer production line process
进板→除尘→(素板)铺纸→自动进板→压机贴面→自动出板→检查码垛木板
Loading board→Cleaning→Apply paper→Loading board→Laminated→Unloading board→Checking and stoking

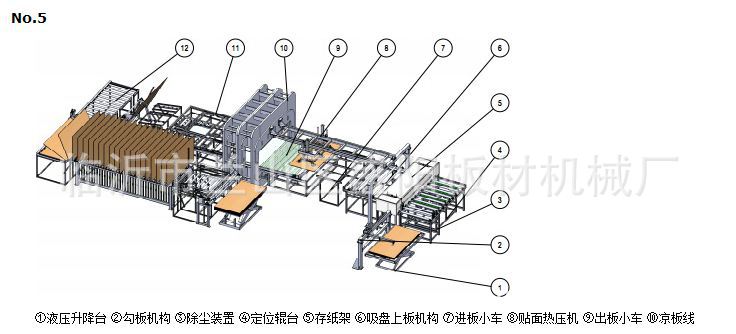

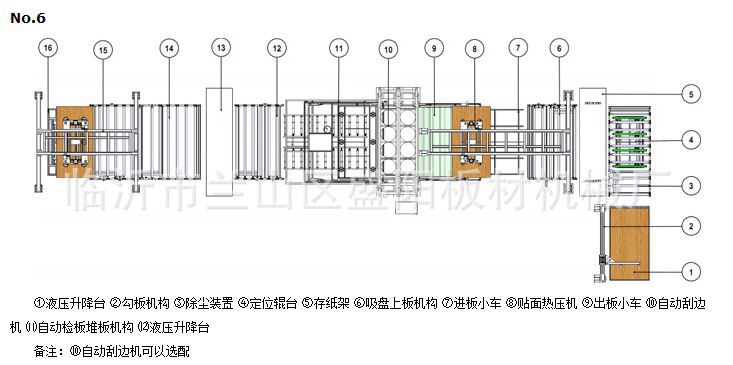

·6×12尺大幅面短周期热压机贴面生产线工艺流程
6×12 short cycle lamination hot press veneer production line process
进板→除尘→(素板)铺纸→静电吸附→自动进板→压机贴面→自动出板→出板检查→检查码垛木板
Loading board→Cleaning→Apply paper→Electrostatic adsorption→Loading board→Laminated→Unloading board→Board out-checking→Checking and stoking
