高清视频采集卡，无需电脑，按键操作，HD,分辨率1080P--2014最新产品
最好用的高清视频采集盒。
无需电脑，在接入HDMI视频源（DVD/DC/X-BOX/PSP等）后，在采集卡上接上U盘，按下按键即可开始采集HD 视频，分辨率高达1080P。
支持HDMI 和COMPONENT两种视频输入方式。
同时，我们还提供编辑软件，以供用户编辑录制好的视频。
Specifications:
Connections |
| ||||||||||
接口 | USB 2.0 Host |
| |||||||||
视频输入 | Digital: HDMI |
| |||||||||
Analog: Component Video |
| ||||||||||
音频输入 | Digital HDMI |
| |||||||||
Analog: RCA L/R, 3.5mm Line In, 3.5mm Micro Phone In |
| ||||||||||
Note: 3.5mm Line In and 3.5mm Micro Phone In is only for Component Video |
| ||||||||||
视频输出 | Digital: HDMI (Pass-through from HDMI or Component Input) |
| |||||||||
音频输出 | Digital: HDMI (Pass-through from HDMI or Audio RCA L/R Input) |
| |||||||||
Analog: 3.5mm Stereo (Pass-through from HDMI or Audio RCA L/R Input) |
| ||||||||||

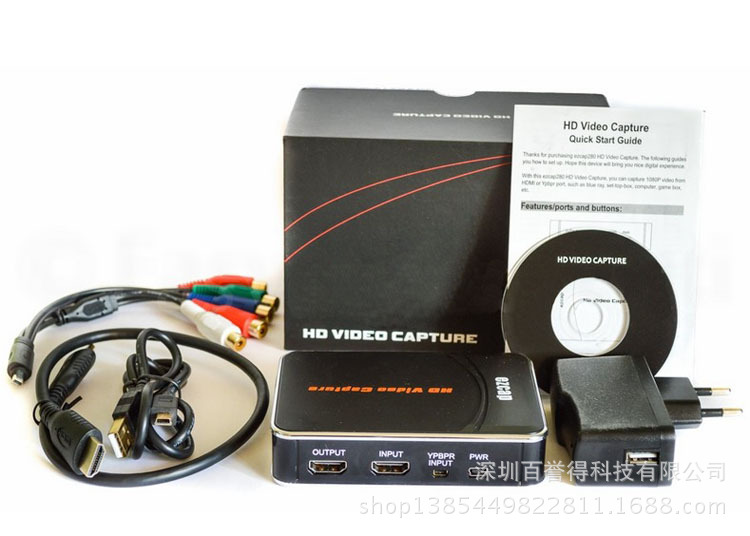

配件包括： |
| ||||||||||
设备 | HD Video Capture |
| |||||||||
其它 | Component Video cable, HDMI cable, DC adapter, Software CD, User Manual
|
| |||||||||
高清采集盒信息 |
| ||||||||||
解码 | Hardware MPEG4 encoder |
| |||||||||
使用界面 | On-board Hot Button for one-click recording / streaming |
| |||||||||
LED indicator for working status |
| ||||||||||
尺寸 | 110(L) × 75(W) × 27(H) mm |
| |||||||||
重量 | 135g |
| |||||||||
|
|
|
|
|
|
|
|
|
| ||
标准： |
| ||||||||||
存储媒体 | USB Flash Disk, Portable Hard Disk |
| |||||||||
Note: The exFAT format is not supported. |
| ||||||||||
分辨率 | Input / Pass-through: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p) |
| |||||||||
Capture: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x 1080 (30p) |
| ||||||||||
Note: Upscaling is not supported. |
| ||||||||||
录制格式 | Video: AVI MPEG4, Audio: AAC Stereo |
| |||||||||
录制质量 | Max: 18Mbps@1080P 30fps |
| |||||||||
录制文件 | Max: 2GB / Per File |
| |||||||||
录制容量 | Max: 140MB / Minute, 8.4GB / Hour |
| |||||||||
供电方式 | DC 5V / 2A |
| |||||||||
采集格式 | Video: AVI MPEG4, Audio: AAC Stereo |
| |||||||||
|
|
| |||||||||
所用软件： |
| ||||||||||
软件 | Arcsoft Showbiz |
| |||||||||
文件编辑 | Timeline / Storyboard edit, Split / Divide Scenes, Multi Trim Scenes … |
| |||||||||
视频输出 | Upload to YouTube |
| |||||||||
Portable Device: iPod, iPhone, iPod Touch, Apple TV, PSP, PS3, Xbox |
| ||||||||||
File: MPEG 1 / 2 / 4, WMV HD, QuickTime (MOV) … |
| ||||||||||
操作系统 | Windows 8 (32 / 64 bit), Windows 7 (32 / 64 bit), Windows Vista (32 / 64 bit) |
| |||||||||
CPU | Intel Core 2 Duo 2.8GHz, AMD Athlon 64X2 Dual Core 3.0GHz |
| |||||||||
Memory | 4 GB RAM |
| |||||||||
Graphics Card | VGA card with support for DirectX 10.0c or above |
| |||||||||
'
